Connects2 CAM-VW1-AD User Manual

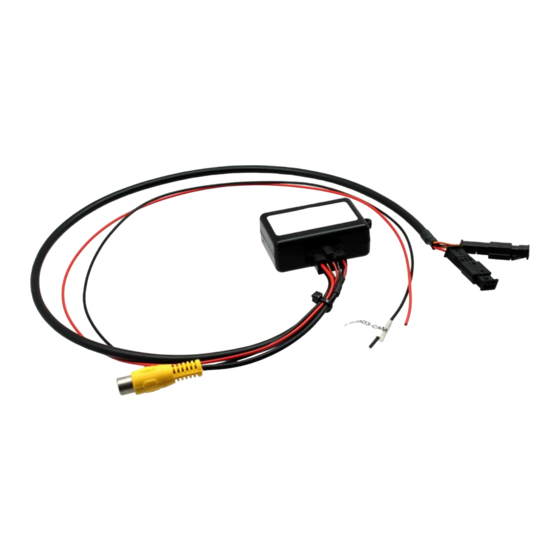

Reverse camera add on interface for volkswagen vehicles

U s e r M a n u a l

CAM-VW1-AD

APPLICATION:

Volkswagen

Golf (MK VI)

Passat

Allows for the connection of a video source in conjunction with a factory fitted

Volkswagen reverse camera

DISCLAIMER:

Prior to Installation

Read the manual prior to installation. Technical knowledge is necessary for installation.

The place of installation must be free of moisture and away from heat sources. Please

ensure you use the correct tools to avoid damage to the vehicle or product.

Connects2 can not be held responsible for the installation of this product.

Technical Support

Connects2 want to provide a fast and suitable resolution should you encounter any tech-

nical issues. With this in mind, when contacting Connects2, try to provide as much Infor-

mation as possible. This will speed up the process and help us to help you.

Please use our dedicated online technical support centre: support.connects2.com

Reverse Camera Add On Interface

For Volkswagen Vehicles

2008 - 2012

2008>

Table of Contents

Do you have a question about the CAM-VW1-AD and is the answer not in the manual?

Page 1 Connects2 want to provide a fast and suitable resolution should you encounter any tech- nical issues. With this in mind, when contacting Connects2, try to provide as much Infor- mation as possible. This will speed up the process and help us to help you.
Page 2 Volkswagen cable colours to the pin numbers) 5. Use the Connection Assignment (below) to connect the open Volkswagen reverse camera wires with the 2 and 3 pin sockets from the CAM-VW1-AD interface. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2...
