U s e r M a n u a l
CAM-VW9.2
PRODUCT FEATURES:
Image Sensor: 1/3" CMOS
TV Lines: 700
Resolution: 510 x 492 (NTSC) 500 x 582 (PAL)
Minimum Illumination: 0 Lux
TV System: PAL / NTSC (Switchable)
Waterproof Rating: IP69K
Infra-Red LED's: Yes (x8)
Viewing Angle: 120 Degrees
Parking Guidelines: No
Image: Image only
Enhanced Performance In Low Light: Yes
Current Consumption: >166mA @ 13.8V
Operating Voltage: 12V DC (Negative Ground)
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com

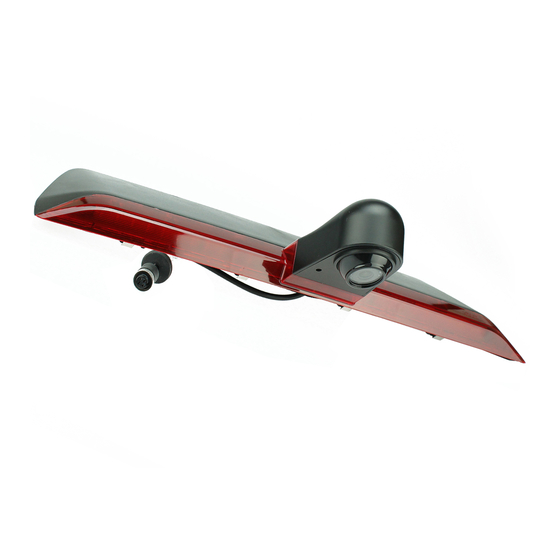

Volkswagen Brake Light Reverse Camera
Volkswagen Crafter 2017>
Advertisement
Table of Contents
Related Manuals for Connects2 CAM-VW9.2
Summary of Contents for Connects2 CAM-VW9.2
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 1. Remove the third brake light from the vehicle and unplug the connection cable 2. Connect the 4pin connector of the CAM-VW9.2 to the 4pin connector on the extension cable, then attach it to the vehicle taking care not to trap any cables 3.
