Cooke & Lewis CLMF1BK-CR1 Installation Manual

Built in multifunction fan oven
Hide thumbs

Advertisement

Table of Contents

CLMF1BK-CR1
GB
IE
Barcode 5052931055661

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMF1BK-CR1 and is the answer not in the manual?

Questions and answers

Related Manuals for Cooke & Lewis CLMF1BK-CR1

Summary of Contents for Cooke & Lewis CLMF1BK-CR1

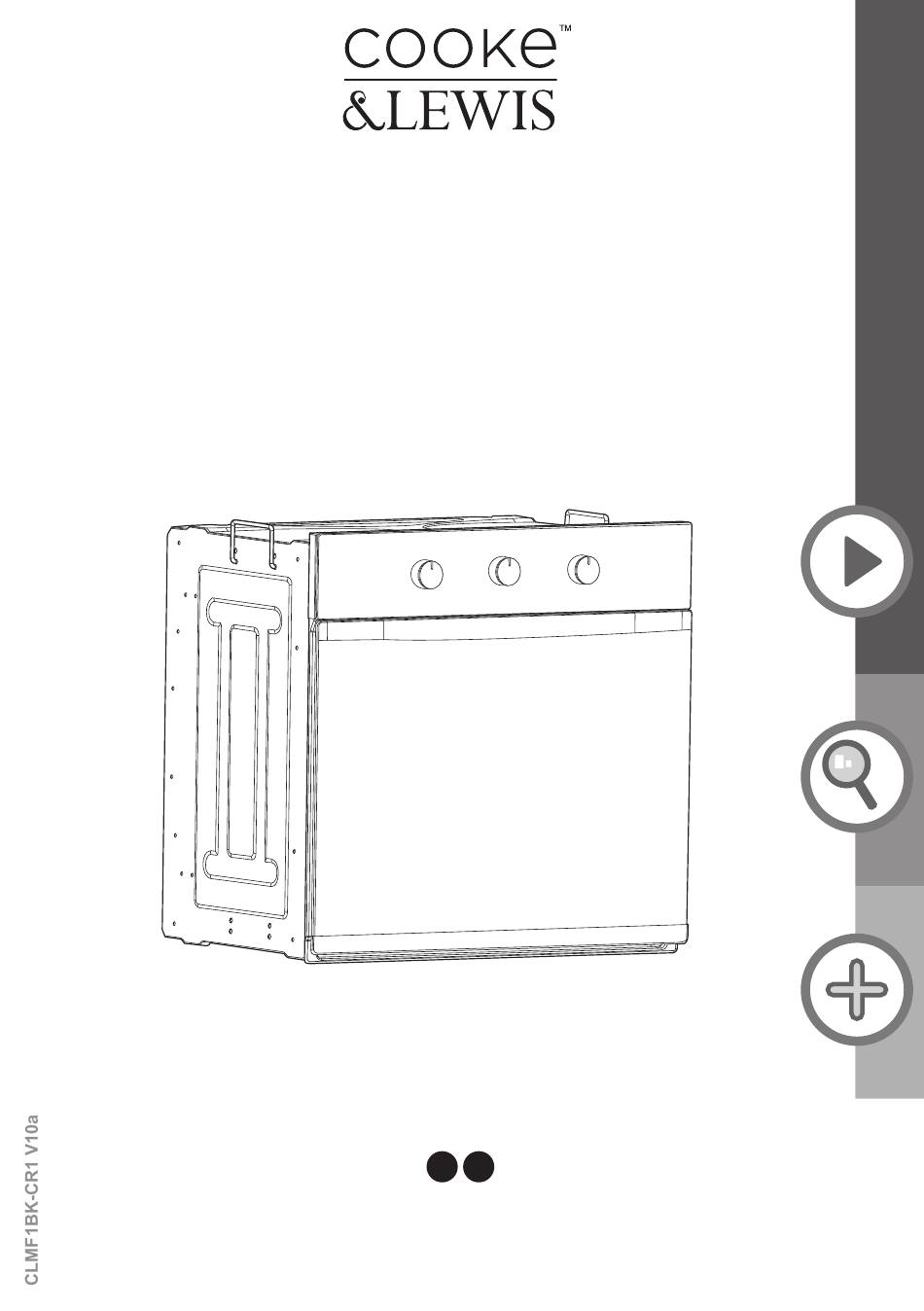

  • Page 1 CLMF1BK-CR1 Barcode 5052931055661...
  • Page 2 [01] x 1 [02] x 1 [03] x 1 [04] x 1 [07] x 4 (Ø3.9 x 32mm) [05] x 1 [06] x 4...
  • Page 3 CLMF1BK-CR1 Built In Multifunction Fan Oven Installation...

  • Page 4: Table Of Contents

    Let's get started... Getting started... Safety Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Information for dismantling Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation...

  • Page 5: Getting Started

    Getting Started... Safety Before you start...

  • Page 6: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
  • Page 7 Safety Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical sensory, or mental capabilities, or by those who lack experience and knowledge, unless they have been given supervision and instruction concerning the use of the appliance by a person responsible for...
  • Page 8 Safety Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally. Please dispose of the packing material carefully.
  • Page 9 Safety Do not place oven dishes or trays of the base part of the oven or cover it in aluminium foil. Do not install the appliance near curtains or upholstered furniture. Do not try to lift or move kitchen appliances by pulling any door or handle as this may cause damage.
  • Page 10 Safety The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Page 11 Safety During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  • Page 12 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 13 Before you start Instructions This user manual must be kept for future reference and use by someone who is not familiar with the appliance. Before using the oven, carefully clean the inside with a non-abrasive detergent and warm water. Position the grill and tray in their respective runners.
  • Page 14 Before you start Tools Required We advise when installing this appliance two people are recommended.

  • Page 15: In More Detail

    more detail... Product functions Operation Care and maintenance Troubleshooting Information for dismantling Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity...
  • Page 16 Product functions Product functions > The oven is controlled by a thermostat between 50 ºC and 250 ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multi-functional control button.
  • Page 17 Operation Cooking instructions TRUE FAN MODE Cakes/Biscuits Temperature °C Shelf Position Cooking Time (Recommended) in min. from the bottom Cake Mixture Desserts in Moulds Sponge cake 150 – 170 60 – 70 Marble, nut cake (tin) 150 – 170 60 – 80 Fresh fruit cake (tray) 150 –...
  • Page 18 Operation GRILL FAN GRILL Food to be grilled Recom- Temperature Total grilling Temperature Total grilling mended setting Time in min. in °C Time in min. shelf level Thin cuts Steak 3 or 4 2) maximum 10 – 16 maximum 20 – 25 Kebabs maximum 25 –...
  • Page 19 Operation Temperature Shelf level Time in Notes Food in °C * from the min. * bottom * Potato, pasta or 1 or 2 20 – 25 Place in a suitable dish. vegetable bake Lasagne, cannelloni 1 or 2 35 – 40 Remove the lid.
  • Page 20 Operation Using the mechanical timer (Fig.1) > Once the thermostat controls are in the desired position, turn the knob clockwise to the maximum position. > Then turn it anti-clockwise to the desired time. At the end of this set time the buzzer will sound.
  • Page 21 Care and maintenance Care and maintenance IMPORTANT ! Warning Always switch off the electricity supply before As a safety precaution, before beginning to clean the performing maintenance work. In the event of a fault, appliance always switch off at the mains switch. FUSE contact customer services. Cleaning an oven that does not feature self-cleaning panels must be done after use, when it is switched off but still warm, not hot, so that the film of grease produced by the cooking vapours on the walls is still easy to remove,...
  • Page 22 Care and maintenance Removing the door from the oven (Fig.2) > To simplify cleaning the interior of the oven, the door can be removed. The process of removing the door is shown below: > Open the door fully to position “C” Lift the two mobile links "A" of the hinges, until fixing at point “B”.
  • Page 23 Care and maintenance Cleaning the glass door (Fig.3) > If possible, remove the oven door glass following the manufacturer's instructions. Use warm water with a little detergent to clean the glass sections of the door. > Do not use abrasive products which could damage the glass. Remember that if the surface of the glass panel becomes scratched, it could cause a dangerous failure.
  • Page 24 Care and maintenance Replacement of the oven light bulb (Fig.4) > Not covered by the appliance guarantee. 90’ WARNING: Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. The oven has a light with the following characteristics: >...

  • Page 25: Troubleshooting

    Care and maintenance Troubleshooting Fault Cause Solution Oven doesn't work Something at the Turn off main supply and connection is wrong, or check if some wire has it's not connected. been disconnected. Power supply Turn off main supply and connections are loose. check if some wire has been disconnected. Something at house Turn off main supply and installation is wrong.

  • Page 26: Recycling And Disposal

    Care and maintenance Recycling and Disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.
  • Page 27 13 A (automatic bipolar switch with protected socket, with 3 mm separation between contacts) Information for domestic ovens (www.diy.com) Symbol Value Unit Model identification CLMF1BK-CR1 Type of oven Electric oven Mass of the appliance 27.5 Number of cavities Energy consumption (electricity) 0.91...
  • Page 28 Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED.
  • Page 29 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation. Electrical Connection Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside...

  • Page 30: Guarantee

    Guarantee Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts.
  • Page 31 Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. In the course of the service work carried out it may be necessary to remove the built in appliance from its fitted position. If the appliance is glued, grouted or tiled in such a manner that it cannot be removed, it is the responsibility of the customer/installer to remove and reinstall the appliance...

  • Page 32: Ce Declaration Of Conformity

    C/Ter n° 2, Torelló 08570 – Barcelona (Spain) We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION: CLMF1BK-CR1 TYPE: OVEN EC DIRECTIVES APPLIED: Comply with the European Directives 2014/35/...

  • Page 33: Appendix

    Appendix... Installation...
  • Page 34 Installation Fitting the appliance Important > The adjacent piece or furniture or cupboard and all the materials used in the installation must resist a minimum temperature increase of 85 ºC above the ambient temperature during use of the appliance. > Certain types of vinyl or laminated kitchen furniture are particularly susceptible to damage due to decolouration at temperatures below those indicated.
  • Page 35 Installation 85mm - 90mm FIG.5...
  • Page 36 Installation 85 - 90mm 600 mm 60 mm 85 - 90mm 550mm Minimum ventilation gap 80cm...
  • Page 37 Installation [06] [07] [06] x 4 [07] x 4 Note: For electrical connection see Technical and legal information section...
  • Page 38 Installation Adjusting the shelf position Note: For electrical connection see Technical and legal information section...
  • Page 39 Notes...
  • Page 40 B&Q plc Chandlers Ford, Hants SO53 3LE United Kingdom www.diy.com...
