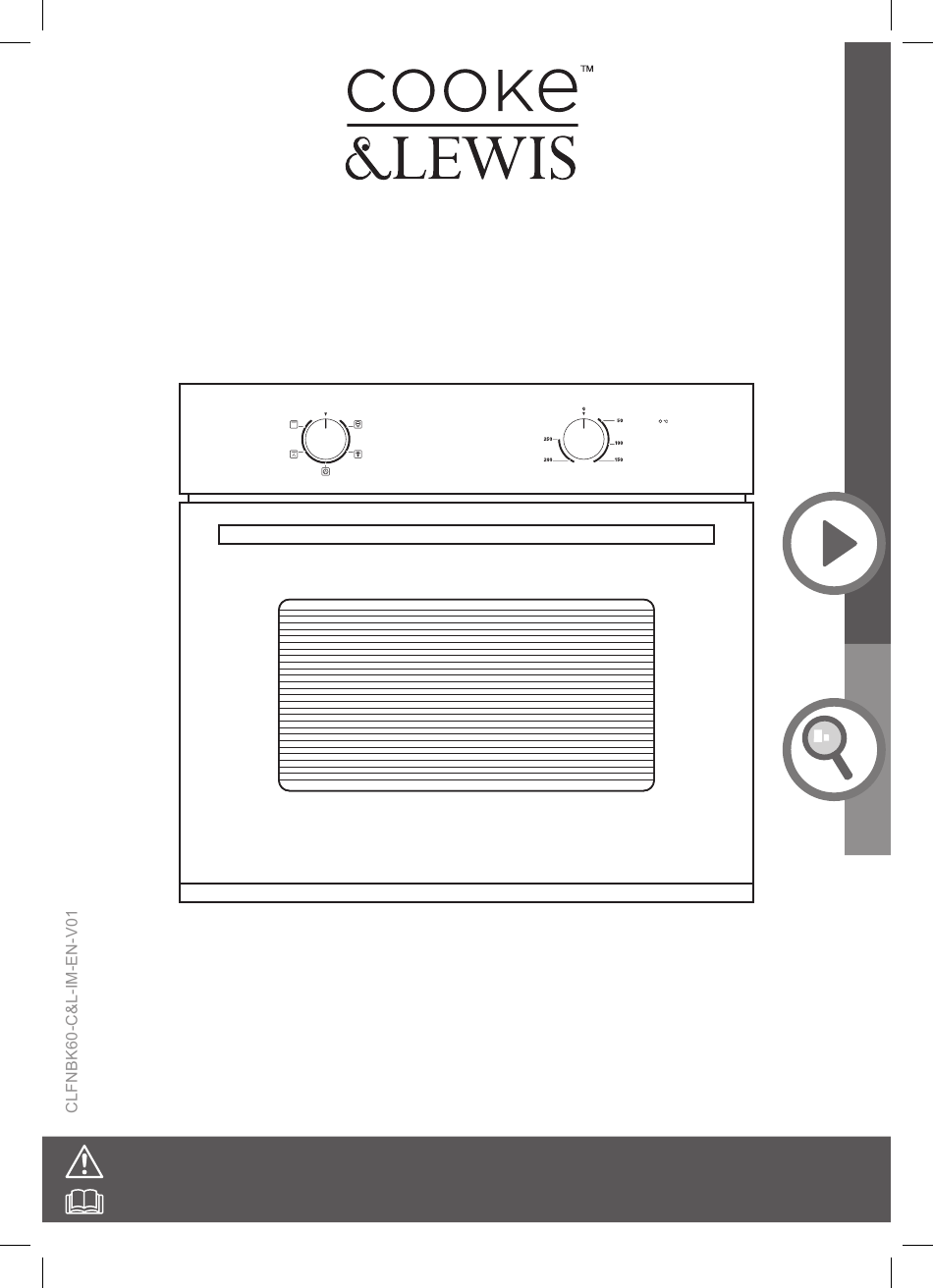

- Page 1 Built-in electric oven CLFNBK60 Barcode: 5052931668960 Warning! Read the instructions before using the appliance. CLFNBK60-C&L-IM-EN-V06.indd 1 7/9/2016 5:45 PM...
- Page 2 Scope of delivery Built-in electric oven CLFNBK60 [A] x [B] x [C] x [D] x [E] x [F] x Main unit with side rails Grill trivet to place on pan for supporting food being cooked Oven shelf Handle for removing hot grill and...
-
Page 3: Table Of Contents
Getting started… Safety Your product Before you start more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE declaration of conformity Installation CLFNBK60-C&L-IM-EN-V06.indd 3 7/9/2016 5:45 PM... -
Page 4: Getting Started
Safety Built-in electric oven CLFNBK60 These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a qualified person, strictly following the manufacturer’s instructions. - Page 5 Safety Built-in electric oven CLFNBK60 Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
- Page 6 Safety Built-in electric oven CLFNBK60 The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. Danger of burns! During use the appliance becomes hot.
- Page 7 Safety Built-in electric oven CLFNBK60 Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
- Page 8 Safety Built-in electric oven CLFNBK60 Means for full disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. To achieve this install an appropriate circuit breaker (CB) and residual current device (RCD). It should be installed in...
- Page 9 Safety Built-in electric oven CLFNBK60 Should any food inside the oven catch fire, keep the door closed. Switch the oven off and disconnect the power supply. Always exercise caution when opening the door. Move to side, open the door slowly to vent the hot air and/or steam.
-
Page 10: Your Product
Your product Built-in electric oven CLFNBK60 Your product Note! • This diagram may be slightly different from the layout of the appliance. • Shelf levels are numbered from the bottom up. Levels 4 and 5 are used mainly for the grill function. Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes. - Page 11 Your product Built-in electric oven CLFNBK60 Your product Cooking mode control Screws Temperature control Grill pan handle Operating indicator Grill trivet Grill pan Oven shelf CLFNBK60-C&L-IM-EN-V06.indd 11 7/9/2016 5:45 PM...
-
Page 12: Before You Start
Before you start Built-in electric oven CLFNBK60 You will need (not supplied) We advise when installing this appliance two people are recommended. Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 13: In More Detail
Operation Built-in electric oven CLFNBK60 Introduction Note! • This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. • It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. - Page 14 Operation Built-in electric oven CLFNBK60 Control elements Controls Cooking mode control Temperature control Functions Use the control to select Use the control to set the one of the available temperature between 50 °C operation modes. and 250 °C. Product functions •...
- Page 15 Operation Built-in electric oven CLFNBK60 Product functions Icon Function Description The top grill heating element is activated. In this mode, also the fan is in operation to provide an even distribution of the heat. Grill with fan This mode is recommend for quick browning on the outside but keeping the juices in.
- Page 16 Operation Built-in electric oven CLFNBK60 Note! The information given in the following charts is intended only as a guide. Select the lowest temperature quoted and check the food at the end of the shortest duration quoted. Note! If pre-heating is required, we recommend a duration of 5 - 15 minutes before food should be introduced to the oven.
- Page 17 Operation Built-in electric oven CLFNBK60 GRILL Food to be Temperature Recommended Cooking time in grilled setting (ºC) Shelf position minutes from the bottom Toast 4 - 5 Beef steak 15 + (6 - 8) GRILL WITH FAN Food to be...
- Page 18 Operation Built-in electric oven CLFNBK60 Switching on/off 1. Connect the appliance to the power source. 2. Rotate the cooking mode control to select the desired cooking function. 3. Rotate the temperature control to select the desired cooking temperature. 4. The oven now switches on automatically and starts heating. The operating indicator lights up.
-
Page 19: Care And Maintenance
Care and maintenance Built-in electric oven CLFNBK60 Care and maintenance Warning! Always switch off the electricity supply before performing maintenance work. In the event FUSE of a fault, contact customer services. Caution! Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 20 Care and maintenance Built-in electric oven CLFNBK60 Care and maintenance Warning! Never use a steam cleaner to clean the inside of the oven. For easier cleaning of the oven interior, the side rails can be removed. 1. Remove all pans and grills from inside the oven to easily access the side rails.
- Page 21 Care and maintenance Built-in electric oven CLFNBK60 How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
- Page 22 Care and maintenance Built-in electric oven CLFNBK60 Replacing the oven light bulb Warning! Always disconnect the appliance from the electricity supply before performing maintenance work. Important! The bulb in the oven lamp is a special bulb and has high temperature resistance.
-
Page 23: Troubleshooting
Care and maintenance Built-in electric oven CLFNBK60 Troubleshooting Solution What should I do if the Check to see if one of the following actions resolves oven does not heat up? the issue: • The oven may not be switched on. Switch on the oven ( Switching on/off). -
Page 24: Recycling And Disposal
Recycling and disposal Built-in electric oven CLFNBK60 Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 25: Technical And Legal Information
Technical and legal information Built-in electric oven CLFNBK60 Technical data Technical information Power supply : 220 - 240 V~, 50/60 Hz Output power : Max. 2100 W Legal information The manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. -
Page 26: Guarantee
Guarantee Built-in electric oven CLFNBK60 Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 27 Guarantee Built-in electric oven CLFNBK60 Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s...
-
Page 28: Ce Declaration Of Conformity
CE declaration of conformity Built-in electric oven CLFNBK60 CE declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. - Page 29 In particular the adhesive that bonds the plastic laminate to the furniture must be able to withstand temperatures of not less than 120 °C to avoid delamination. The appliance must be housed in heat-resistant cabinets. CLFNBK60-C&L-IM-EN-V06.indd 29 7/9/2016 5:45 PM...
- Page 30 Ensure that the glues of units that are made of veneered wood can withstand temperatures of at least 120 ºC. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. CLFNBK60-C&L-IM-EN-V06.indd 30 7/9/2016 5:45 PM...
- Page 31 The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram. • The cable must not be bent or compressed. • The cable must be checked regularly and replaced by authorized technicians only. CLFNBK60-C&L-IM-EN-V06.indd 31 7/9/2016 5:45 PM...
- Page 32 The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. Disconnect the appliance from the mains supply before carrying out any kind of maintenance or cleaning. CLFNBK60-C&L-IM-EN-V06.indd 32 7/9/2016 5:45 PM...
- Page 33 Once the oven has been lifted into place inside the housing unit, use the 2 holes located within the sides of the metal casing of the oven to secure it. Secure with the 2 screws [F]. CLFNBK60-C&L-IM-EN-V06.indd 33 7/9/2016 5:45 PM...
- Page 34 • For better cooking, other tools, e.g. a rotisserie (not provided), can be used. The rotisserie works in combination with the grill element to heat the food equally. CLFNBK60-C&L-IM-EN-V06.indd 34 7/9/2016 5:45 PM...
- Page 35 CLFNBK60-C&L-IM-EN-V06.indd 35 7/9/2016 5:45 PM...
- Page 36 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com CLFNBK60-C&L-IM-EN-V06.indd 36 7/9/2016 5:45 PM...
