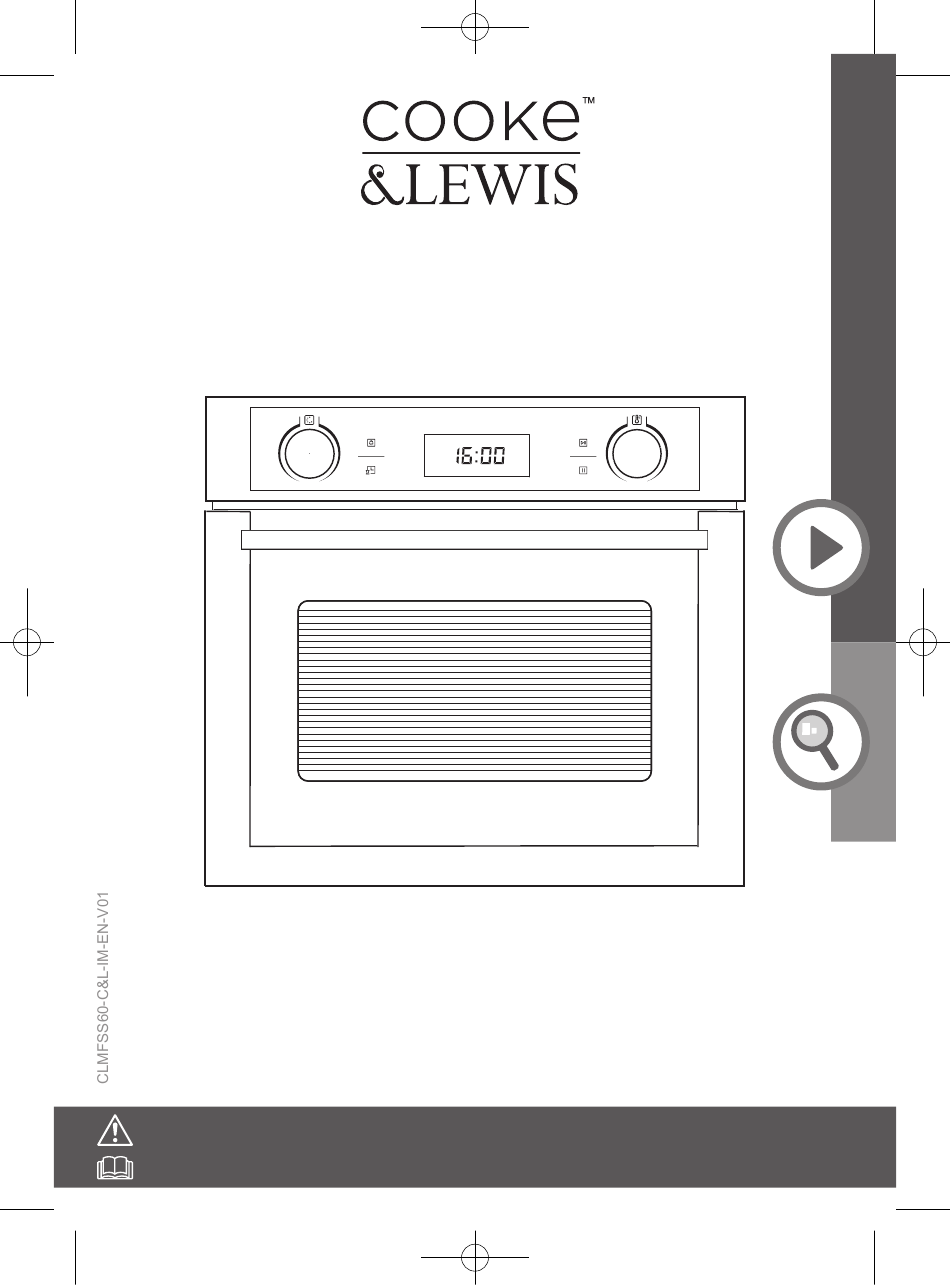

- Page 1 Built-in electric oven CLMFSS60 Barcode: 5052931682133 Warning! Read the instructions before using the appliance. CLMFSS60-C&L-IM-EN-V05.indd 1 2016/7/18 11:11:47...
- Page 2 Scope of delivery Built-in electric oven CLMFSS60 [A] x 1 [B] x 1 [C] x 1 [D] x 1 [E] x 1 [F] x 2 Main unit with side rails Grill trivet to place on pan for supporting food being cooked...
-
Page 3: Table Of Contents
Getting Safety Your product Before you start detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE declaration of conformity Installation CLMFSS60-C&L-IM-EN-V05.indd 3 2016/7/18 11:11:49... -
Page 4: Getting Started
Safety Built-in electric oven CLMFSS60 These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a qualified person, strictly following the manufacturer’s instructions. - Page 5 Safety Built-in electric oven CLMFSS60 Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities...
- Page 6 Safety Built-in electric oven CLMFSS60 The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. Danger of burns! During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
- Page 7 Safety Built-in electric oven CLMFSS60 Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
- Page 8 Safety Built-in electric oven CLMFSS60 Means for full disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. To achieve this install an appropriate circuit breaker (CB) and residual current device (RCD). It should be installed in...
- Page 9 Safety Built-in electric oven CLMFSS60 Should any food inside the oven catch fire, keep the door closed. Switch the oven off and disconnect the power supply. Always exercise caution when opening the door. Move to side, open the door slowly to vent the hot air and/or steam.
-
Page 10: Your Product
Your product Built-in electric oven CLMFSS60 Your product Note! • This diagram may be slightly different from the layout of the appliance. • Shelf levels are numbered from the bottom up. Levels 4 and 5 are used mainly for the grill function. Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes. - Page 11 Your product Built-in electric oven CLMFSS60 Your product Reminder setting key K1 control Display Grill pan Screws Start key Grill pan handle K2 control Grill trivet Stop key Oven shelf Time key CLMFSS60-C&L-IM-EN-V05.indd 11 2016/7/18 11:11:51...
-
Page 12: Before You Start
Before you start Built-in electric oven CLMFSS60 You will need (not supplied) We advise when installing this appliance two people are recommended. Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 13: In More Detail
Operation Built-in electric oven CLMFSS60 Introduction Note! • This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. • It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. - Page 14 Operation Built-in electric oven CLMFSS60 Control elements Controls K1 control K2 control Start Stop Time key Reminder setting How to • Press to let the Press Press Press to Press to control pop up. to start once to set the time set the •...
- Page 15 Operation Built-in electric oven CLMFSS60 Product functions • This oven provides a wide range of settings and functions to choose from, as described in the following table. • Use the K1 control to select one of the available operating modes. The corresponding icon illuminates.
- Page 16 Operation Built-in electric oven CLMFSS60 Icon Function Description The inner heating element and the top heating element are both working. To use the grill ensure that your food is located in the centre of the oven cavity and adjust the height of the Double grill grill pan to control the browning.
- Page 17 Operation Built-in electric oven CLMFSS60 Practical cooking advice • The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.
- Page 18 Operation Built-in electric oven CLMFSS60 CONVECTION Food Temperature Recommended Cooking time in setting (ºC) Shelf position minutes from the bottom Small cakes 165 - 170 20 - 23 (single-deck) Sponge cake 160 - 165 30 - 40 Pizza 170 - 175...
- Page 19 Operation Built-in electric oven CLMFSS60 DOUBLE GRILL Food to be Temperature Recommended Cooking time in grilled setting (ºC) Shelf position minutes from the bottom Beef steak 15 + (6 - 8) DOUBLE GRILL WITH FAN Food to be Temperature Recommended...
- Page 20 Operation Built-in electric oven CLMFSS60 Switching on/off 1. Rotate the K1 control to select the desired cooking function. The corresponding icon illuminates. 2. Rotate the K2 control to adjust temperature. Then press 3. If steps 2 is ignored, just press to start cooking.
- Page 21 Operation Built-in electric oven CLMFSS60 Setting an alarm reminder You have the possibility to set a timer to remind you to turn on the oven. You can also use this function as a kitchen timer to set a time frame for other tasks not necessarily related to this oven.
- Page 22 Operation Built-in electric oven CLMFSS60 Note! • The defrost function cannot be reserved. • The alarm reminder function is invalid in reservation state. • In the reservation mode, press once to check the reservation time and temperature, but the reservation is paused. Press...
-
Page 23: Care And Maintenance
Care and maintenance Built-in electric oven CLMFSS60 Care and maintenance Warning! Always switch off the electricity supply before performing maintenance work. In the event FUSE of a fault, contact customer services. Caution! Do not use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 24 Care and maintenance Built-in electric oven CLMFSS60 Care and maintenance Warning! Never use a steam cleaner to clean the inside of the oven. For easier cleaning of the oven interior, the side rails can be removed. 1. Remove all pans and grills from inside the oven to easily access the side rails.
- Page 25 Care and maintenance Built-in electric oven CLMFSS60 How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
- Page 26 Care and maintenance Built-in electric oven CLMFSS60 Replacing the oven light bulb Warning! Always disconnect the appliance from the electricity supply before performing maintenance work. Important! The bulb in the oven lamp is a special bulb and has high temperature resistance.
-
Page 27: Troubleshooting
Care and maintenance Built-in electric oven CLMFSS60 Troubleshooting Solution What should I do if the Check to see if one of the following actions resolves oven does not heat up? the issue: • The oven may not be switched on. Switch on the oven. -
Page 28: Recycling And Disposal
Recycling and disposal Built-in electric oven CLMFSS60 Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 29: Technical And Legal Information
Technical and legal information Built-in electric oven CLMFSS60 Technical data Technical information Power supply : 220 - 240 V~, 50/60 Hz Output power : Max. 2700 W Legal information The manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. -
Page 30: Guarantee
Guarantee Built-in electric oven CLMFSS60 Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 31 Guarantee Built-in electric oven CLMFSS60 Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s...
-
Page 32: Ce Declaration Of Conformity
CE declaration of conformity Built-in electric oven CLMFSS60 CE declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. - Page 33 In particular the adhesive that bonds the plastic laminate to the furniture must be able to withstand temperatures of not less than 120 °C to avoid delamination. The appliance must be housed in heat-resistant cabinets. CLMFSS60-C&L-IM-EN-V05.indd 33 2016/7/18 11:11:56...
- Page 34 Ensure that the glues of units that are made of veneered wood can withstand temperatures of at least 120 ºC. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. CLMFSS60-C&L-IM-EN-V05.indd 34 2016/7/18 11:11:57...
- Page 35 The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram. • The cable must not be bent or compressed. • The cable must be checked regularly and replaced by authorized technicians only. CLMFSS60-C&L-IM-EN-V05.indd 35 2016/7/18 11:11:57...
- Page 36 The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. Disconnect the appliance from the mains supply before carrying out any kind of maintenance or cleaning. CLMFSS60-C&L-IM-EN-V05.indd 36 2016/7/18 11:11:57...
- Page 37 Once the oven has been lifted into place inside the housing unit, use the 2 holes located within the sides of the metal casing of the oven to secure it. Secure with the 2 screws [F]. CLMFSS60-C&L-IM-EN-V05.indd 37 2016/7/18 11:11:58...
- Page 38 • For better cooking, other tools, e.g. a rotisserie (not provided), can be used. The rotisserie works in combination with the grill element to heat the food equally. CLMFSS60-C&L-IM-EN-V05.indd 38 2016/7/18 11:11:58...
- Page 39 CLMFSS60-C&L-IM-EN-V05.indd 39 2016/7/18 11:11:59...
- Page 40 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com CLMFSS60-C&L-IM-EN-V05.indd 40 2016/7/18 11:11:59...
