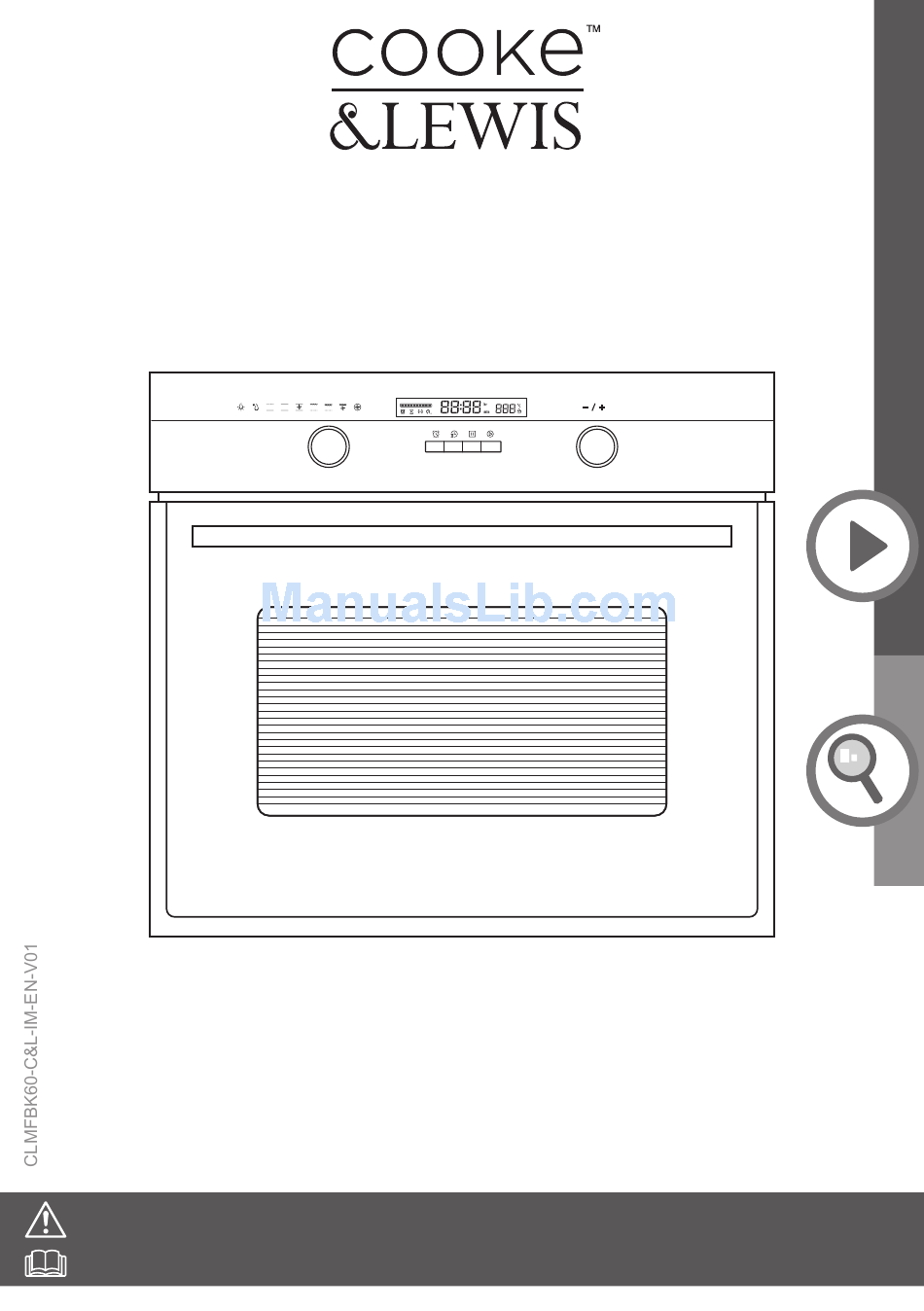

- Page 1 Built-in electric oven CLMFBK60 Barcode: 5052931668977 Warning! Read the instructions before using the appliance.
- Page 2 Scope of delivery Built-in electric oven CLMFBK60 [A] x [B] x [C] x [D] x [E] x [F] x Main unit with side rails Grill trivet to place on pan for supporting food being cooked Oven shelf Handle for removing hot grill and...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started… Getting Safety Your product Before you start detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE declaration of conformity... -
Page 4: Getting Started
Safety Built-in electric oven CLMFBK60 These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a qualified person, strictly following the manufacturer’s instructions. - Page 5 Safety Built-in electric oven CLMFBK60 Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
- Page 6 Safety Built-in electric oven CLMFBK60 The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. Danger of burns! During use the appliance becomes hot.
- Page 7 Safety Built-in electric oven CLMFBK60 Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged. Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.
- Page 8 Safety Built-in electric oven CLMFBK60 Means for full disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. To achieve this install an appropriate circuit breaker (CB) and residual current device (RCD). It should be installed in...
- Page 9 Safety Built-in electric oven CLMFBK60 Should any food inside the oven catch fire, keep the door closed. Switch the oven off and disconnect the power supply. Always exercise caution when opening the door. Move to side, open the door slowly to vent the hot air and/or steam.
-
Page 10: Your Product
Your product Built-in electric oven CLMFBK60 Your product Note! • This diagram may be slightly different from the layout of the appliance. Shelf levels are numbered from the bottom up. Levels 4 and 5 are • used mainly for the grill function. Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes. - Page 11 Your product Built-in electric oven CLMFBK60 Your product Display K1 control K2 control (- / +) Grill pan Screws Start button Grill pan handle Stop button Grill trivet Time button Oven shelf Reminder setting button...
-
Page 12: Before You Start
Before you start Built-in electric oven CLMFBK60 You will need (not supplied) We advise when installing this appliance two people are recommended. Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 13: In More Detail
Operation Built-in electric oven CLMFBK60 Introduction Note! • This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. • It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. -
Page 14: Setting The Clock
Operation Built-in electric oven CLMFBK60 Control elements Controls K1 control K2 control Start Stop Time Reminder button button button setting button How to • Press to let the Press Press Press to Press to control pop up. to start once to... - Page 15 Operation Built-in electric oven CLMFBK60 Product functions • This oven provides a wide range of settings and functions to choose from, as described in the following table. • Use the K1 control to select one of the available operating modes. The corresponding icon illuminates.
- Page 16 Operation Built-in electric oven CLMFBK60 Icon Function Description The inner heating grill element switches on and off to maintain temperature. Radiant grilling The temperature can be set within the range of 180-240 °C. The default temperature is 210 °C. The inner heating element and the top heating element are both working.
-
Page 17: Practical Cooking Advice
Operation Built-in electric oven CLMFBK60 Practical cooking advice • The oven offers a wide range of alternatives which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience. - Page 18 Operation Built-in electric oven CLMFBK60 CONVECTION Food Temperature Recommended Cooking time in setting (ºC) Shelf position minutes from the bottom Small cakes 165 - 170 20 - 23 (single-deck) Sponge cake 160 - 165 30 - 40 Pizza 170 - 175...
- Page 19 Operation Built-in electric oven CLMFBK60 DOUBLE GRILL Food to be Temperature Recommended Cooking time in grilled setting (ºC) Shelf position minutes from the bottom Beef steak 15 + (6 - 8) DOUBLE GRILL WITH FAN Food to be Temperature Recommended...
- Page 20 Operation Built-in electric oven CLMFBK60 Switching on/off 1. Rotate the K1 control to select the desired cooking function. The corresponding icon illuminates. 2. Press the K2 control to adjust temperature. Then press to start. 3. If steps 2 is ignored, just press to start cooking.
- Page 21 Operation Built-in electric oven CLMFBK60 Setting an alarm reminder You have the possibility to set a timer to remind you to turn on the oven. You can also use this function as a kitchen timer to set a time frame for other tasks not necessarily related to this oven.
-
Page 22: Child Lock Function
Operation Built-in electric oven CLMFBK60 Note! • The defrost function cannot be reserved. • The alarm reminder function is invalid in reservation state. • In the reservation mode, press once to check the reservation time and temperature, but the reservation is paused. Press... -
Page 23: Care And Maintenance
Care and maintenance Built-in electric oven CLMFBK60 Care and maintenance Warning! Always switch off the electricity supply before performing maintenance work. In the event FUSE of a fault, contact customer services. Caution! Do not use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 24 Care and maintenance Built-in electric oven CLMFBK60 Care and maintenance Warning! Never use a steam cleaner to clean the inside of the oven. For easier cleaning of the oven interior, the side rails can be removed. 1. Remove all pans and grills from inside the oven to easily access the side rails.
- Page 25 Care and maintenance Built-in electric oven CLMFBK60 How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
-
Page 26: Replacing The Oven Light Bulb
Care and maintenance Built-in electric oven CLMFBK60 Replacing the oven light bulb Warning! Always disconnect the appliance from the electricity supply before performing maintenance work. Important! The bulb in the oven lamp is a special bulb and has high temperature resistance. -
Page 27: Troubleshooting
Care and maintenance Built-in electric oven CLMFBK60 Troubleshooting Solution What should I do if the Check to see if one of the following actions resolves oven does not heat up? the issue: • The oven may not be switched on. Switch on the oven. -
Page 28: Recycling And Disposal
Recycling and disposal Built-in electric oven CLMFBK60 Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 29: Technical And Legal Information
Technical and legal information Built-in electric oven CLMFBK60 Technical data Technical information Power supply : 220 - 240 V~, 50/60 Hz Output power : Max. 2700 W Legal information The manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. -
Page 30: Guarantee
Guarantee Built-in electric oven CLMFBK60 Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 31 Guarantee Built-in electric oven CLMFBK60 Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s...
-
Page 32: Ce Declaration Of Conformity
CE declaration of conformity Built-in electric oven CLMFBK60 CE declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. - Page 33 Installation Warning! Danger of electric shock! The power supply to the appliance must be cut off before the appliance is installed completely. Only a qualified person in compliance with the instructions provided can install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property.
- Page 34 Ensuring sufficient ventilation Upper vent min. 45 mm at rear Figure above shows the air circulation requirements including a slot that should be cut into the plinth if fitted. It is essential when installing your oven there is adequate air circulation around the appliance to ensure the correct operation of the appliance.
-
Page 35: Electrical Connection
Electrical connection All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply, ensure that the mains voltage corresponds to the voltage on the rating plate on the appliance. Warning! This appliance must be earthed. Mains Supply could be connected to the Mains Voltage by Direct Connection. - Page 36 Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
- Page 37 Handling and fixing the oven Connect to mains power supply ensuring the cable is not bent. Lift the oven into housing unit using the 2 handles at the sides of the appliance. Do not lift it with the door handle, otherwise, the glass door might shatter. Caution! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 38 Adjusting the shelf position • To minimize the risk of burns when handling hot pans, grills or oven dishes, always ensure to place pan and grill correctly between the side rails. Caution! When placing the grill trivet or pan, slowly slide onto the side rails and ensure it rests evenly and stably on the side rails.
- Page 40 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com...
Need help?
Do you have a question about the CLMFBK60 and is the answer not in the manual?
Questions and answers
What are the dimensions so I can replace it
The dimensions of the Cooke & Lewis CLMFBK60 oven are:
- Height: 595 mm
- Width: 595 mm
- Depth: 575 mm
Installation space requirements include:
- Cabinet width: 560 mm
- Cabinet depth: minimum 580 mm
- Cabinet height: 585 mm
- Ventilation gap: 45 mm at the rear and a slot in the plinth for air circulation.
This answer is automatically generated
I’ve just replaced my oven. When trying to use grill setting it doesn’t heat up if door is open. I’ve always had to grill with door open in the past so want to check if I’m doing incorrect
Why does the oven temperature setting keep flashing?
The temperature of the oven is lower than the temperature set on **** setting, how can this be calibrated
