- Page 1 Built-in electric oven GB IE Built-in electric oven - Barcode: 5052931557585 Warning! Read the instructions before using the appliance. CLOVIPK-A-C&L-IM-V03-EN.indd 1 27/8/15 5:39 pm...
- Page 2 [E] Gripper for removing hot grill and pans, thus avoiding direct contact [C] Metal pan suitable for cooking and also Screws useful for collecting fats from foods placed on the grill CLOVIPK-A Built-in electric oven CLOVIPK-A-C&L-IM-V03-EN.indd 2 27/8/15 5:39 pm...
-
Page 3: Table Of Contents
Getting started… Safety Your product Before you start detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE declaration of conformity Appendix... Installation CLOVIPK-A-C&L-IM-V03-EN.indd 3 27/8/15 5:39 pm... -
Page 4: Getting Started
Safety CLOVIPK-A Built-in electric oven These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. All installation work must be carried out by a competent person or qualified electrician. This appliance must be installed correctly by a qualified person, strictly following the manufacturer’s... - Page 5 Safety CLOVIPK-A Built-in electric oven Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
- Page 6 Safety CLOVIPK-A Built-in electric oven The appliance is not intended to be operated by means of external timer or separated remote-control system. The appliance is for domestic use only. The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance.
- Page 7 Safety CLOVIPK-A Built-in electric oven Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label. Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact your retailer if it is damaged.
- Page 8 Safety CLOVIPK-A Built-in electric oven Disconnect the oven from the power supply when not in use and before cleaning. This appliance is classified as protection class I and must be connected to a protective ground (Earth). Means for full disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
- Page 9 Safety CLOVIPK-A Built-in electric oven Do not store or never use harsh chemicals, sprays, flammable or non-food in or near the oven. Oven is designed specifically for heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the unit and may cause injury.
-
Page 10: Your Product
Your product CLOVIPK-A Built-in electric oven Your product Note! This diagram may be slightly different from the layout of the appliance. Note! Shelf levels are numbered from the bottom up. Levels 4 and 5 are used mainly for the grill function. Please refer to the cooking guides provided throughout this manual to determine appropriate shelf levels for your dishes. -
Page 11: Clovipk-A-C&L-Im-V03-En.indd

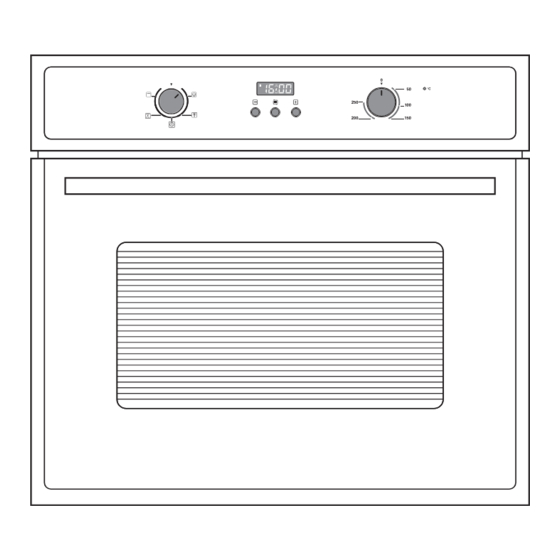

Your product CLOVIPK-A Built-in electric oven Your product Cooking mode control Decrease time button Display Metal pan Temperature control Screws Operating indicator Gripper Increase time button Grill to place on pan Oven shelf Time button CLOVIPK-A-C&L-IM-V03-EN.indd 11 27/8/15 5:39 pm... -
Page 12: Before You Start
Before you start CLOVIPK-A Built-in electric oven You will need (not supplied) Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 13: In More Detail
Operation CLOVIPK-A Built-in electric oven Introduction Note! • This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. • It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. - Page 14 Operation CLOVIPK-A Built-in electric oven Control elements Controls Cooking mode Temperature Time buttons control control Functions Use the control to Use the control to Use the buttons select one of the set the temperature ) to set the available operation between 50 °C and...
- Page 15 Operation CLOVIPK-A Built-in electric oven Product functions • This oven provides a wide range of settings and functions to choose from, as described in the following table. • Use the selector knob to select one of the available operating modes. The corresponding icon is shown on the display.
- Page 16 Operation CLOVIPK-A Built-in electric oven Using the convection mode The rear circular element and the fan come on and the heat is dispersed by forced convection. This mode is suitable for cakes and pastry and to roast joints when you want it well cooked on the outside and tender in the middle. The oven does not need any pre-heating when using this mode.
- Page 17 Operation CLOVIPK-A Built-in electric oven CONVECTION Food Temperature Recommended Cooking setting (ºC) Shelf position time in from the bottom minutes Small cakes 165 - 170 20 - 23 (single-deck) Sponge cake 160- 165 30 - 40 Pizza 170 - 175...
-
Page 18: Display
Operation CLOVIPK-A Built-in electric oven GRILL Food to be Temperature Recommended Cooking grilled setting (ºC) Shelf position time in from the bottom minutes Toast 4 - 5 Beef steak 15 + (6 - 8) GRILL WITH FAN Food to be... -
Page 19: Temperature Control
Operation CLOVIPK-A Built-in electric oven Switching on/off 1. Set the desired operation mode and cooking temperature Control elements). 2. When the timer is in standby, press and hold for more than 3 seconds. The timer enters Manual mode with the symbol staying stably on the display. - Page 20 Operation CLOVIPK-A Built-in electric oven Manual mode 1. In Manual mode, only the actual time and the symbol lights up on the display. The cooking duration is controlled by the user. 2. After cooking done, set the cooking mode control and the temperature control to 0 position.
- Page 21 Operation CLOVIPK-A Built-in electric oven Setting Semi-automatic program as per cooking time This function is used to cook in the desired time range (up to 10 hours). Before using this function, ensure to: • Place the food into the oven first.
- Page 22 Operation CLOVIPK-A Built-in electric oven Setting full automatic program This function is used to cook for a certain duration and stop at a certain end time. For example, you want a 30-minute cooking process and want the cooking to stop at 11 am.
-
Page 23: Care And Maintenance
Care and maintenance CLOVIPK-A Built-in electric oven Care and maintenance Warning! Always switch off the electricity supply before performing maintenance work. In the event FUSE of a fault, contact customer services. Caution! Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. - Page 24 Care and maintenance CLOVIPK-A Built-in electric oven Care and maintenance Warning! Never use a steam cleaner to clean the inside of the oven. For easier cleaning of the oven interior, the side rails can be removed. 1. Remove all pans and grills from inside the oven to easily access the side rails.
- Page 25 Care and maintenance CLOVIPK-A Built-in electric oven How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
- Page 26 Care and maintenance CLOVIPK-A Built-in electric oven Replacing the oven light bulb Warning! Always disconnect the appliance from the electricity supply before performing maintenance work. Important! The bulb in the oven lamp is a special bulb and has high temperature resistance.
-
Page 27: Troubleshooting
Care and maintenance CLOVIPK-A Built-in electric oven Troubleshooting Solution What should I do if the Check to see if one of the following actions oven does not heat up? resolves the issue: • The oven may not be switched on. Switch on the oven. -
Page 28: Recycling And Disposal
Recycling and disposal CLOVIPK-A Built-in electric oven Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 29: Technical And Legal Information
Technical and legal information CLOVIPK-A Built-in electric oven Technical data Technical information Power supply : 220 - 240 V~, 50/60 Hz Output Power : Max. 2100 W Legal information The manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. -
Page 30: Guarantee
Guarantee CLOVIPK-A Built-in electric oven Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 31 Guarantee CLOVIPK-A Built-in electric oven Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this...
-
Page 32: Ce Declaration Of Conformity
CE declaration of conformity CLOVIPK-A Built-in electric oven CE declaration of conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 33: Installation
In particular the adhesive that bonds the plastic laminate to the furniture must be able to withstand temperatures of not less than 150 °C to avoid delamination. The appliance must be housed in heat-resistant cabinets. CLOVIPK-A-C&L-IM-V03-EN.indd 33 27/8/15 5:39 pm... - Page 34 150 ºC. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The rear gap should measure at least 45 mm. CLOVIPK-A-C&L-IM-V03-EN.indd 34 27/8/15 5:39 pm...
- Page 35 The installer must ensure that the correct electrical connection has been made and that it complies with wiring diagram. • The cable must not be bent or compressed. • The cable must be checked regularly and replaced by authorized technicians only. CLOVIPK-A-C&L-IM-V03-EN.indd 35 27/8/15 5:39 pm...
- Page 36 The connection point must be placed in a position adjacent to the appliance so as to be readily accessible for an engineer in the event of a breakdown. Disconnect the appliance from the mains supply before carrying out any kind of maintenance or cleaning. CLOVIPK-A-C&L-IM-V03-EN.indd 36 27/8/15 5:39 pm...
- Page 37 Once the oven has been lifted into place inside the housing unit, use the two holes located within the sides of the metal casing of the oven to secure it. Secure with the 2 screws [F]. CLOVIPK-A-C&L-IM-V03-EN.indd 37 27/8/15 5:39 pm...
- Page 38 • For better cooking, other tools, e.g. a rotisserie (not provided), can be used. The rotisserie works in combination with the grill element to heat the food equally. CLOVIPK-A-C&L-IM-V03-EN.indd 38 27/8/15 5:39 pm...
- Page 39 CLOVIPK-A-C&L-IM-V03-EN.indd 39 27/8/15 5:39 pm...
- Page 40 B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com CLOVIPK-A-C&L-IM-V03-EN.indd 40 27/8/15 5:39 pm...
