Package Contents

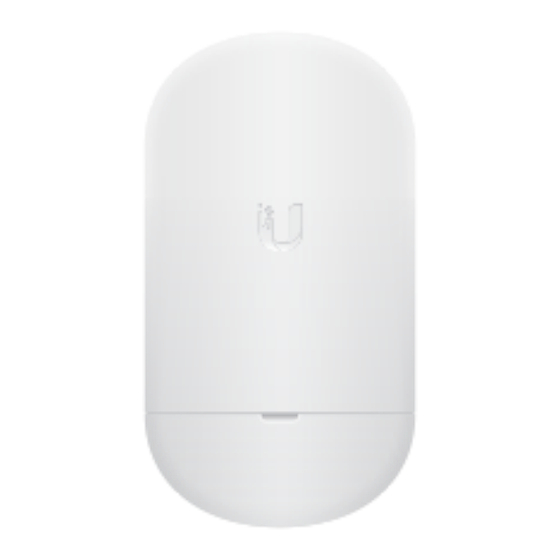

NanoStation loco
Installation Requirements
Shielded Category 5 (or above) cabling with drain wire should be used for all
outdoor wired Ethernet connections and should be grounded through the AC
ground of the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation
loco and the other at the entry point to the building. The ETH-SP will absorb
power surges and safely discharge them into the ground.
Loco5AC Quick Start Guide
Zip Tie
ui.com/toughcable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti Loco5AC-US
Summary of Contents for Ubiquiti Loco5AC-US
- Page 1 PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation loco and the other at the entry point to the building.
-
Page 2: Hardware Overview
Loco5AC Quick Start Guide Diagram Showing Use of Ethernet Surge Protectors Hardware Overview Port View Power LED The Power LED will light blue when the device is connected to a power source. Ethernet Port... -
Page 3: Hardware Installation
10/100/1000 Ethernet port used to connect the power and should be connected Loco5AC Quick Start Guide to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. Hardware Installation Pole Mount... - Page 4 Loco5AC Quick Start Guide...
-
Page 5: Connecting Power
Loco5AC Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in this “Specifications”. Accessing airOS via Wi-Fi... -
Page 6: Web Portal
Verify connectivity in the airOS® Configuration Interface using the UISP™ app or Loco5AC Quick Start Guide Web Portal. Both are available for 15 minutes immediately after you power on the device. If necessary, you can power cycle the device to re-enable its Wi-Fi. UISP App 1. -
Page 7: Specifications
Specifications Loco5AC Quick Start Guide Loco5AC Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") Weight 180 g (6.35 oz) Processor MIPS 74K Memory DDR2 64 MB Antenna Gain 13 dBi Networking Interface (1) 10/100/1000 Ethernet Port Power Method Passive PoE 2-Pair (Pairs 4, 5+;... -
Page 8: Electrical Safety Information
WARNING: Avoid using this product during an electrical storm. There may be a remote Loco5AC Quick Start Guide risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. -
Page 9: Australia And New Zealand
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the Loco5AC Quick Start Guide potential for harmful interference to co-channel mobile satellite systems. CAN ICES-3(A)/NMB-3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. -
Page 10: Weee Compliance Statement
MHz frequency range within all member states. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2022 Ubiquiti Inc. All rights reserved.
