Loco5AC Quick Start Guide

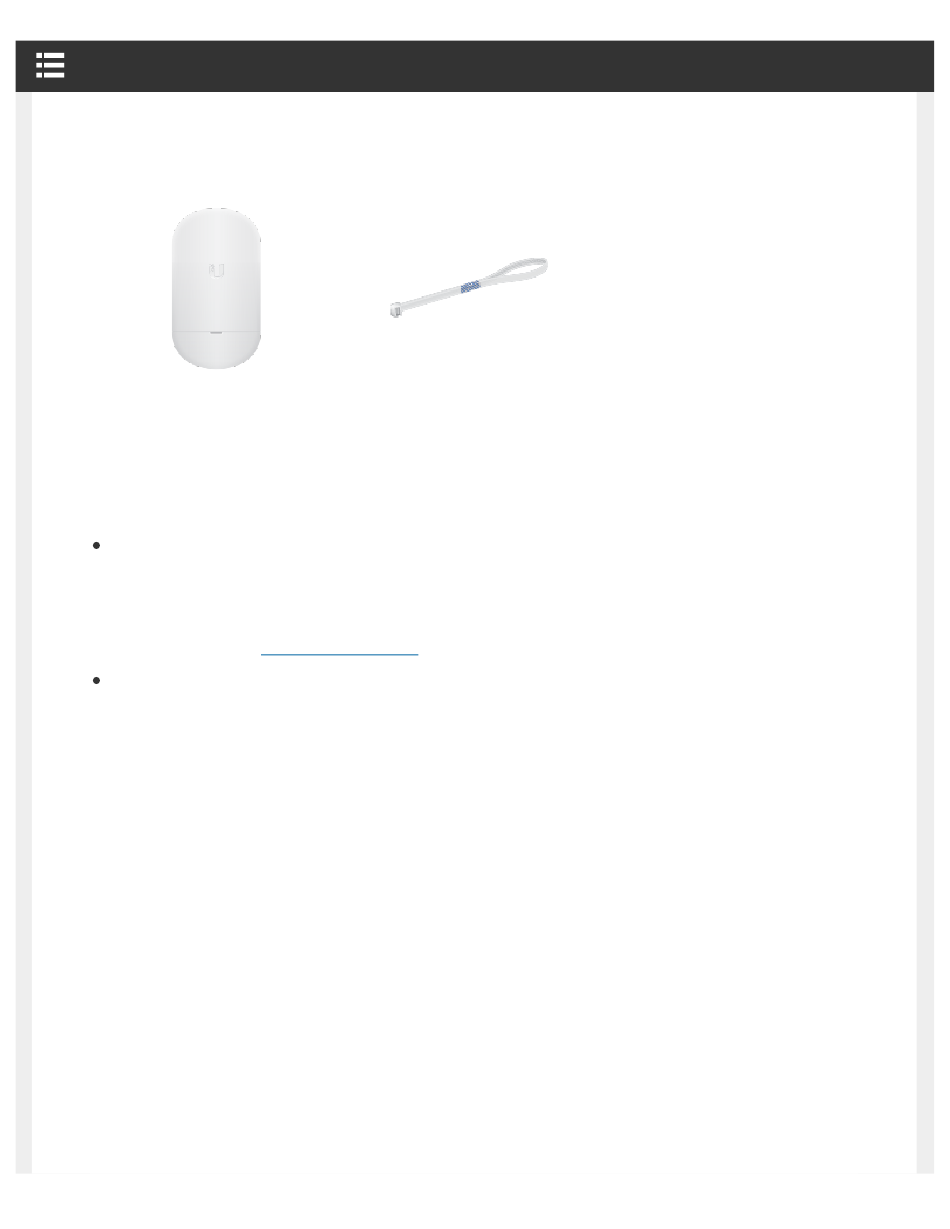

Package Contents

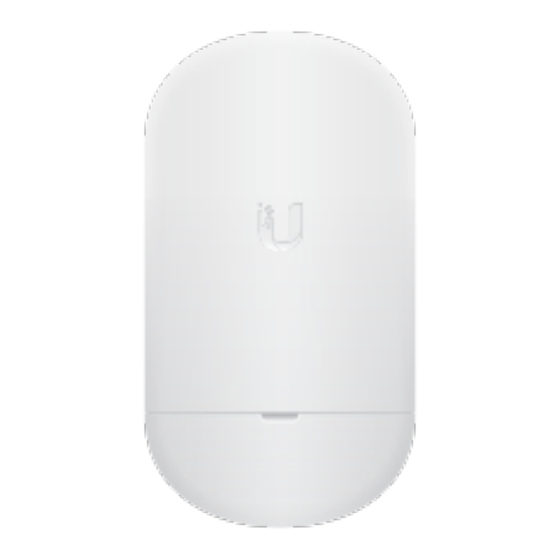

NanoStation loco

Installation Requirements

Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor
wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and
destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit
Surge protection should be used for all outdoor installations. We recommend that you use
two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation loco and the
other at the entry point to the building. The ETH-SP will absorb power surges and safely
discharge them into the ground.
https://dl.ubnt.com/qsg/Loco5AC/Loco5AC_EN.html[1/6/2020 4:15:20 PM]
Loco5AC Quick Start Guide
ui.com/toughcable
Zip Tie
