QLF 215 INSTRUCTION MANUAL
We'll Make It Stress-Free
If you have any questions along the way, just give us a call.
1-800-359-5520. We're ready to help!

Advertisement

loading
Need help?

Need help?

Do you have a question about the QLF215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Secura QLF215

  • Page 1 QLF 215 INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520. We’re ready to help!
  • Page 2 Does your TV weigh more than 100 lbs. (45.3 kg) including accessories? No — Perfect! 100 lbs. Yes — This mount is NOT compatible. Visit secura-av.com or call 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. (45.3 kg) Drywall with...
  • Page 3 Dimensions in. [mm] TV INTERFACE 100mm 3.94in 40mm 1.57in 400mm 15.75in 600mm 23.62in WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 435mm 17.13in 5deg 408mm 15deg 16.06in 30deg 30deg 158mm 222mm 130mm 6.22in 8.74in 5.12in 226mm 8.89in 377mm 422mm ESTIMATED 55"...
  • Page 4: Supplied Parts And Hardware

    Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;...
  • Page 5: Step 2 Parts And Hardware

    STEP 2 Parts and Hardware Lag Bolt Washers Wall Plate Assembly .695 x .350 x.075 in. Lag Bolts 5/16 x 2¾ in. For concrete installations ONLY CAUTION : Do not use in drywall or wood Concrete Anchor UX10 x 60R STEP 3 Hardware Adjustments Locking Screw...
  • Page 6: Step 1 Attach Brackets To Tv

    STEP 1 Attach Brackets to TV 1.1 Screw Diameter 1.2 Determine Spacers and Screw Length Hand thread screws into Use no spacers for: Spacers supplied for: the threaded inserts on the Standard configurations back of your TV to determine Flat back TVs (AND TV Round (irregular) back TVs are shown.
  • Page 7 1.3 Attach TV Brackets Ensure that your brackets are level and centered as much as possible on the back of the TV. CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV bracket to the TV.
  • Page 8 STEP 2A Wood Stud Option CAUTION: Avoid potential personal injuries and property damage! Drywall covering the wall must not exceed 5/8 in. (16 mm) Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) Minimum horizontal space between fasteners: 16 in.
  • Page 9 Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm). Be sure you mark and drill into the center of the stud. Install wall plate assembly .
  • Page 10 STEP 2B Solid Concrete or Concrete Block Option CAUTION: Avoid potential personal injuries and property damage! Mount the wall plate assembly directly onto the concrete surface Minimum solid concrete thickness: 8 in. (203 mm) Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm) Minimum horizontal space between fasteners: 16 in.
  • Page 11 Insert four anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate using four lag bolts and three washers . Tighten the lag bolts only until the washers are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt.
  • Page 12: Step 3 Attach Tv To Wall Plate

    STEP 3 Attach TV to Wall Plate HEAVY! You may need assistance with this step. Hang the TV with brackets onto the wall plate assembly Allow the TV with brackets to rest against the arm assembly plate.
  • Page 13 Secure the TV brackets to the arm assembly with locking screws CAUTION: Avoid potential personal injury or property damage! locking screws must be tightened to secure the TV to the arm assembly...
  • Page 14 TV Adjustments TILT ADJUSTMENT REMOVING THE TV To remove your TV from the arm assembly To adjust the tilt level of your TV, loosen the tilt adjustment screws, using , disconnect all cables and then reverse hex key , on both sides of the arm assembly, adjust the TV to the the procedures in STEP 3.

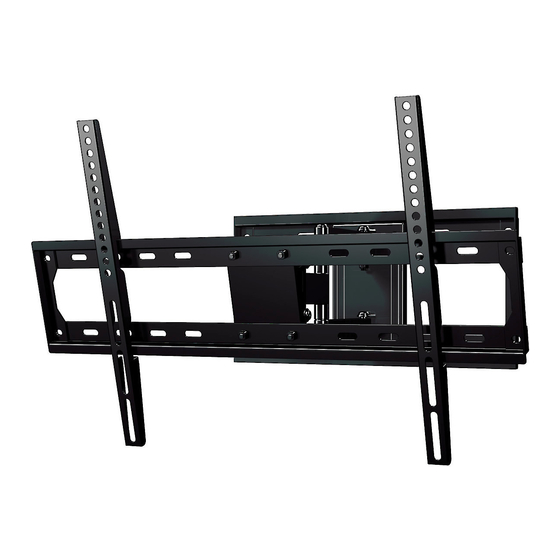

  • Page 15 Features Fully articulating arm, with 15º 3 pivot points, creates optimal viewing positions Adjustments allow tilt control of TV and restriction of TV movement TV tilts up or down for the perfect viewing angle 5º...
  • Page 16 Thank you for choosing Secura! Please take a moment to let us know how we did: Email us: info@secura-av.com Call us: 1-800-359-5520 UK: 0800 056 2853 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations.
