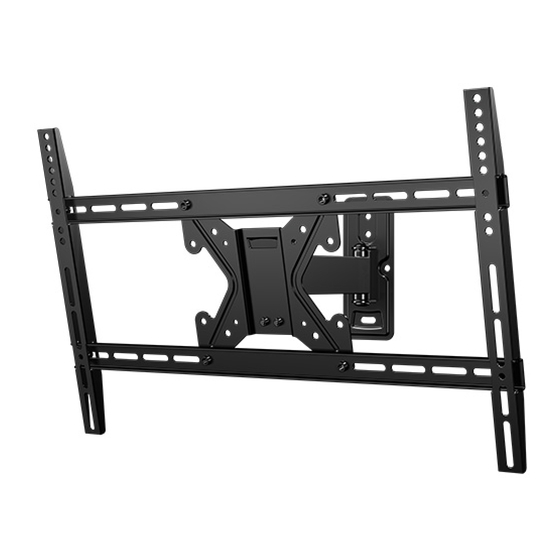

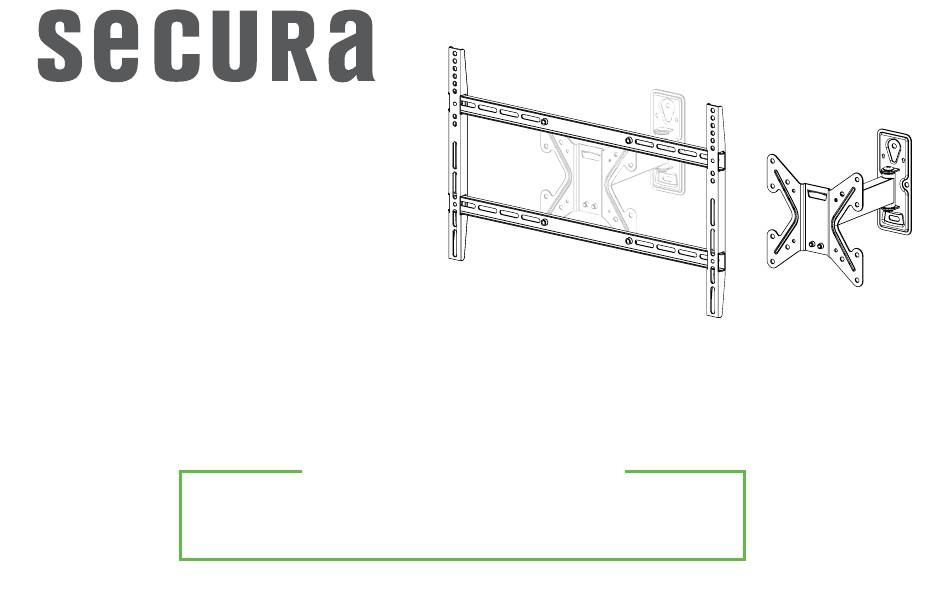

- Page 1 QLF 210 INSTRUCTION MANUAL We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520. We’re ready to help!
- Page 2 Does your TV weigh more than 110 lbs. (49.8 kg) including accessories? No — Perfect! 110 lbs. Yes — This mount is NOT compatible. Visit secura-av.com or call 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. (49.8 kg) Drywall with...
- Page 3 Dimensions in. [mm] TV INTERFACE 610mm 24.02in 400mm 15.75in 265mm 10.43in WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 5deg 80mm 15deg .35in 3.15in 200mm 145mm 7.87in 5.71in 25deg 25deg 269.5mm ESTIMATED 55" 10.61in SIDE VIEW - RETRACTED TV INTERFACE - OPTION 2 TOP VIEW - RETRACTED 200mm...
-
Page 4: Supplied Parts And Hardware
Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;... - Page 5 STEP 2 Parts and Hardware Adjustments Lag Bolt Washers Hex Keys .695 x .350 x.075 in. Lag Bolts 5/16 x 2¾ in. For concrete installations ONLY CAUTION : Do not use in drywall or wood Anchors (Concrete) Ux10x60R...
- Page 6 STEP 1 Attach TV Bracket to TV 1.1 Prepare the TV Plate 1.2 Measure Your TV Hole (VESA) Pattern Separate TV bracket from wall plate by removing the two screws Measure the width and height of your TV hole (VESA) pattern in mm. using hex key Record your measurements: NOTE: Save the screws...
- Page 7 Dimensions in mm 1.3 Assemble Your TV Bracket TV Hole (VESA) Pattern (in mm) Determine which TV bracket configuration to use, A or B based 300 x 400 on your TV hole (VESA) pattern measurements. 400 x 400 600 x 400 Dimensions in mm TV Hole (VESA) Pattern (in mm)
- Page 8 1.4 Screw Diameter 1.5 Determine Spacers and Screw Length Hand thread screws into Use no spacers for: Spacers supplied for: Standard configurations the threaded inserts on the are shown. For special ● Round (irregular) back TVs back of your TV to determine Flat back TVs (AND TV applications, or if you which screw diameter...
- Page 9 1.6 Attach TV Bracket to TV * For TV Hole Patterns secure using your selection: screw/washer or screw/washer/spacer (VESA) Position TV plate over your TV hole pattern and 100 x 100 CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only 200 x 200 enough to secure the TV bracket to the TV.
- Page 10 1.6 Attach TV Bracket to TV * For TV Hole Slide TV brackets onto the ends of the TV bracket assembly (TV plate and TV bracket as shown. Patterns (VESA) 300 x 400 using hex key Center all pieces horizontally and vertically over your TV hole pattern and secure together using four screws 400 x 400 Secure the entire assembly to your TV using your selection: (a) screw/washer or (b) screw/washer/spacer.
-
Page 11: Wood Stud Installation
Attach Wall Plate STEP 2A Wood Stud Installation CAUTION: Avoid potential personal injuries and property damage! ● Drywall covering the wall must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●... - Page 12 Drill the two pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT Pilot holes must be drilled to a depth of 2 ¾ in. (70 mm). Be sure you mark and drill into the center of the stud. Install wall plate assembly using two lag bolts and two washers...
- Page 13 Attach Wall Plate STEP 2B Solid Concrete or Concrete Block Installation CAUTION: Avoid potential personal injuries and property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) ● Minimum concrete block size: 8 x 8 x 16 in.
- Page 14 Insert three anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate using three lag bolts and three washers Tighten the lag bolts only until the washers are pulled firmly against the wall plate. CAUTION: Avoid potential personal injury or property damage! All lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate...
-
Page 15: Step 3 Attach Tv To Wall Plate
STEP 3 Attach TV to Wall Plate HEAVY! You may need assistance with this step. Hang the TV bracket onto the wall plate assembly Allow the TV and bracket assembly to rest against the wall plate assembly TV bracket TV bracket configuration A shown. - Page 16 Secure the TV bracket to the wall plate assembly with locking screws that you removed in STEP 1.1 on PAGE 6. CAUTION: Avoid potential personal injury or property damage! locking screws must be tightened to secure the TV to the wall plate assembly TV bracket configuration A shown.
- Page 17 TV Adjustments TILT ADJUSTMENT LEVEL ADJUSTMENT REMOVING THE TV To adjust the tilt level of your TV, loosen the To adjust the leveling of your TV, loosen To remove your TV from the arm assembly tilt adjustment screws on both sides of the the bottom lag bolt , level your TV, then , disconnect all cables and then reverse...
- Page 20 Thank you for choosing Secura! Please take a moment to let us know how we did: Email us: info@secura-av.com Call us: 1-800-359-5520 UK: 0800 056 2853 Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations.
