Baumer Xpress Mode O200 - qTarget, qTeach Quick Start Guide

Models with IO-Link

IO-Link Process Data Input
16	8	0
IntegerT(16)	IntegerT(8)	8 bit
Measurement Data Channel	Scale	7	6	5	4	3	2	1	0
Measurement Data Channel	Scale			SSC4		Alarm	Quality		SSC1

SSC1/4: Switching Signal Channels
MDC: Switching Signal Channels
Quality: The quality bit signals a weak signal
Alarm: The alarm bit signals a problem with the confi guration or the functionality of the sensor
Scale: Factor by power of ten, applicable to the value of the Measurement Data Channel (MDC) the Measurement Data Channel (MDC)

Available Commands:
Teach-in commands, light emission on/off, Find Me (locating sensor) and more

Available Parameters:
Switching point, output function, time fi lters, operation modes, qTeach lock time, teach-mode, LED status indicators, Teach-In method and more

Available Additional Data:
Switch counter, temperature

Connection Diagrams

	Push-Pull & Teach-In / IO-Link*	PNP Complementary	NPN Complementary	O200.T, Emitter
Brown BN	+Vs
White WH	Teach-In*	PNP Inverted	NPN Inverted	n.c.
Blue BU	0 V
Black BK	Push-Pull / IO-Link*	PNP	NPN	Test

*Only for models with IO-Link or ext. Teach-In
Test: Connect Test to +Vs to deactivate the light emission (O200.T) n.c.: Not connected

Disconnect power before connecting the sensor.
Voltage supply according UL 1310, Class 2
or device shall be protected by an external R/C or listed fuse, rated max. 30 VAC/3A or 24 VDC/4A

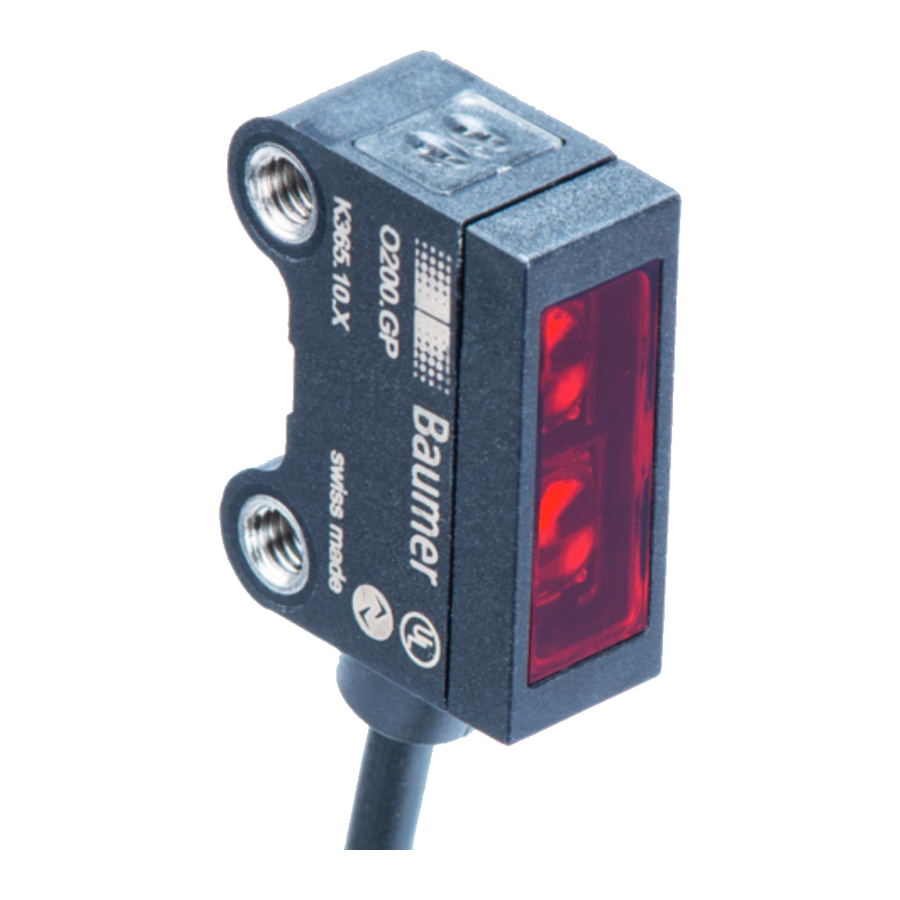

O200 Models with Xpress Teach:
O200.G (Background suppression sensors)
O200.R (Retro-refl ective sensors)
O200.S (Smart Refl ect Light barriers)
O200.T/E (Through beam aensors (E: Receiver)(T: Emitter))

Mounting Instructions

Background suppression sensors & SmartRefl ect Light barriers
The direct refl ection from glossy or refl ective objects must not impinge on the receiver. This can be avoided by slightly tilting the sensor.
It is recommended that the object to be detected approaches the active area of the sensor from the side, which avoids malfunctions caused by defl ection of the light beam at edges.

LED Indication

Legend

LED on
LED flashing 1 Hz
LED flashing 2 Hz
LED flashing 8 Hz

Operating Mode

LED Indicators	Green	Yellow
Power on
Short circuit
Output 1 active
Output 1 signal close to threshold
Teach-In mode	see Teach-In Instruction

Teach-In Description Level 1

	O200.G, Background suppression sensors	O200.R, Retro-refl ective sensors O200.T/E, Through beam sensors	O200.S, SmartRefl ect Light barriers	Optional Teach-In methods*
Level 1	1-Point Teach	1-Point Teach	1-Point Teach	Configurable via IO-Link Window mode (only O200.G) Level 1 / 1-Point Teach: Sets a window of +/- 10%* around the position of the object Dynamic Teach-In (only O200.G, O200.R) The data aquisition starts immediately after activating Teach-In by qTeach or wire and stops as soon as released. Accepted duration of data aquisition: 2... 15 sec The switchpoint or window is defi ned by the detected min & max value.
	Sets the switchpoint at the position of the object +10%*	Sets the threshold as close t measurement value	Teaches the position of the reference (distance)
