VERSION
# 21-06-21
1 / 11

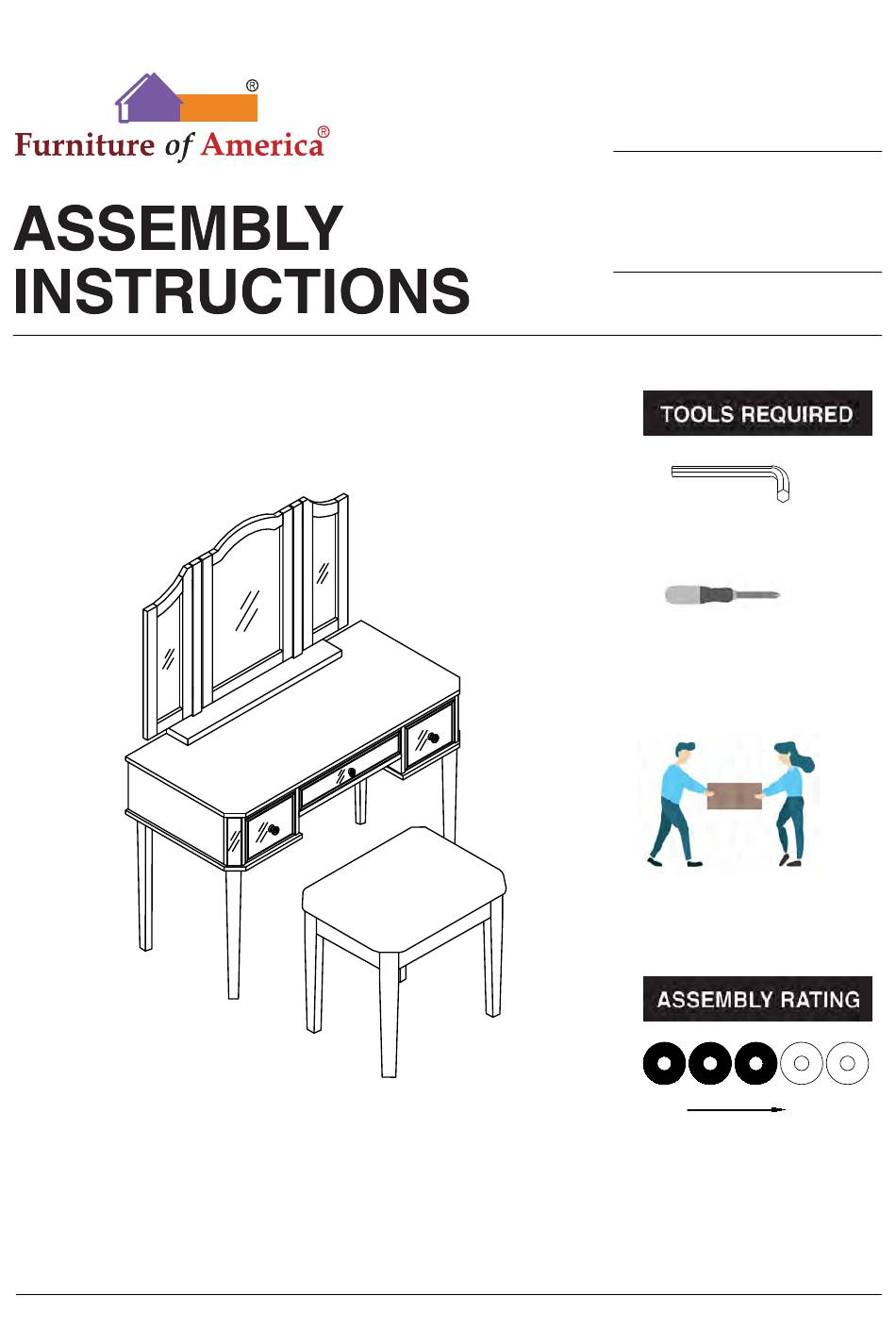

MODEL #
CM-DK6148
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Clarisse CM-DK6148
Summary of Contents for Furniture of America Clarisse CM-DK6148
- Page 1 MODEL # CM-DK6148 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 VANITY SET CM-DK6148 #1 1pc #2 4pcs #3 1pc #4 1pc Cabinet body Table Leg Mirror Mirror bottom plate #7 4pcs #5 2pcs #6 1pc Stool Leg Mirror connecting rod Stool Seat #B 16pcs #C 16pcs #A 10pcs Lock washer Ø1/4'' Bolt Ø1/4'' x 1-3/8'' Flat Washer Ø5/16'' x 19mm...
- Page 6 #E 4pcs #D 1pc #F 8pcs L - Angle lron Allen Wrench 4mm Bolt Ø1/4'' x 3/4'' #H 8pcs #I 1set #G 2pcs Anti-tip Skit Bolt Ø1/4'' x 2'' Bolt Ø5/16'' x 2-3/8'' 6 / 11...
- Page 7 ASSEMBLY INSTRUCTIONS Attach the legs (#2) to the bottom holes of the desk (#1). Make sure the hole on the legs (#2) are facing where the holes of the desk (#1) are at as shown in the picture. Part #1 x1pc Part #2 x4pcs Align iron brackets (#E) to the holes of the legs (#2) and desk (#1).
- Page 8 ASSEMBLY INSTRUCTIONS Screw bolts (#G) to the holes of the mirror (#4). Part #4 x1pc Hardware #G x2pcs Part #3 x1pc Hardware #A x2pcs Align the mirror (#4) to the holes of the mirror bottom plate (#3). Secure with bolts (#A). 8 / 11...
- Page 9 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align mirror connecting rods (#5) to the back holes of the desk (#1). Secure with bolts (#A). Part #5 x2pcs Hardware #A x4pcs Hardware #B x4pcs Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Hardware #I x1set Part #6 x1pc Prepare 8 bolts assembly by inserting lock washer (#B), Part #7 x4pcs then flat washer (#C) onto bolts (#H). Align legs (#2) to the holes of the seat (#1), then secure with bolts (#H). Hardware #B x8pcs Hardware...
- Page 11 11 / 11...
