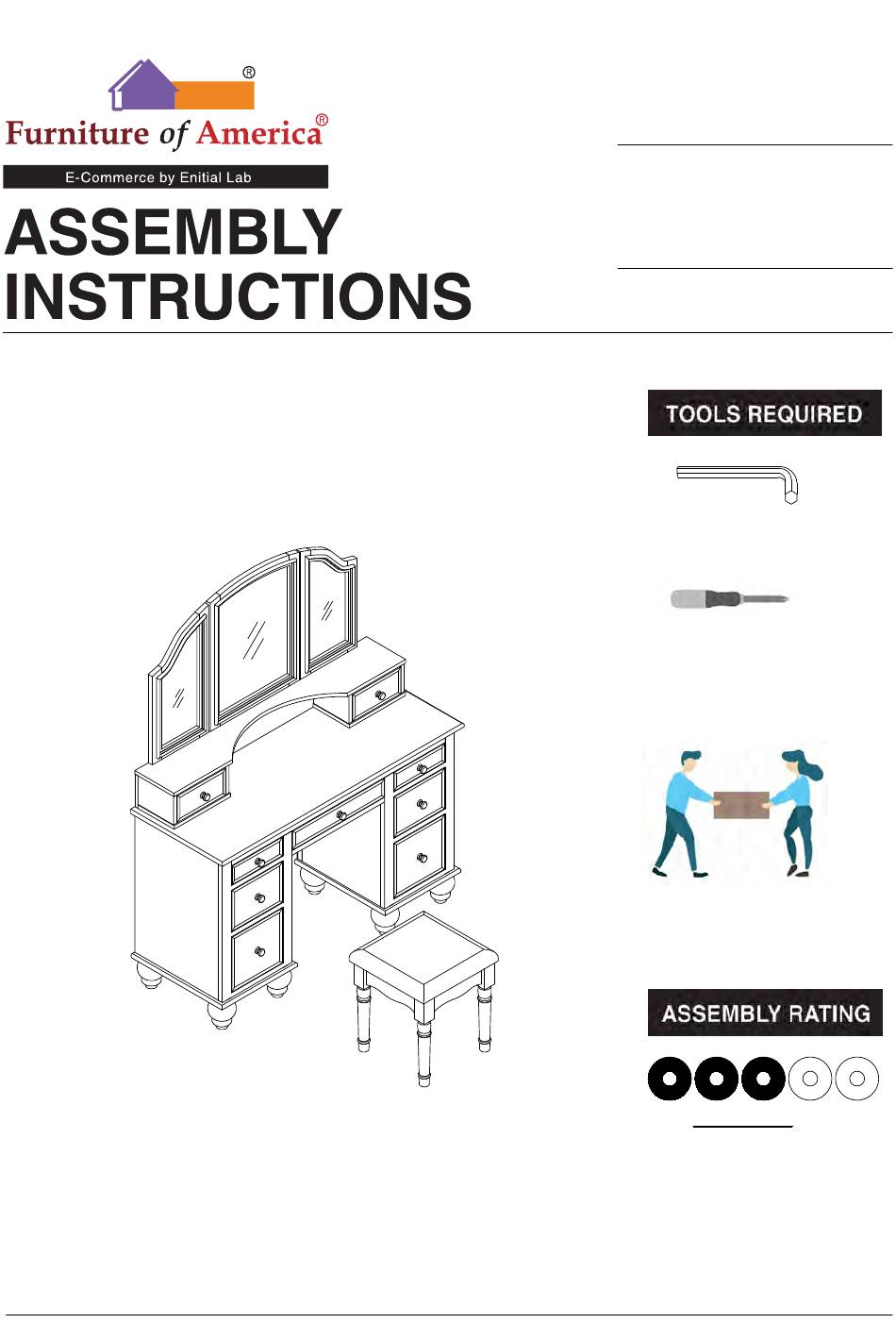

VERSION
# 21-03-17
1 / 14
MODEL #
CM-DK6848
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Athy CM-DK6848
Summary of Contents for Furniture of America Athy CM-DK6848
- Page 1 MODEL # CM-DK6848 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 4...
- Page 5 VANITY SET CM-DK6848 #1 1pc #2 8pcs #3 2pcs #4 4pcs Cabinet body Bottom plate Riser #5 1pc #6 1pc #7 2pcs #8 1pc Backplane Panel Drawer Top In the mirror #9 2pcs #10 2pcs #11 1pc #12 4pcs Side mirror Seat Mirror supprt rail 5 / 14...
- Page 6 #A 13pcs #B 5pcs #C 8pcs Bolt Ø1/4" x 2" Barrel Nut Ø1/4" Bolt Ø1/4" x 1-3/8" #D 16pcs #E 16pcs #F 1pc Lock Washer Ø1/4" Flat Washer Ø5/16" Allen Wrench 4mm #G 2pcs #H 4pcs #I 1pc Connect lron Wood Screw #3 x 1/2"...
- Page 7 Exploded View 7 / 14...
- Page 8 ASSEMBLY INSTRUCTIONS Attach legs (#2) to the bottom holes of the cabinet body (#1). Part #1 x1pc Part #2 x8pcs Align and attach the risers (#4) to the holes of the bottom plate (#3). Part #3 x2pcs Part #4 x4pcs Hardware #I x1pc Pour glue (#I) into the hold (#3)
- Page 9 ASSEMBLY INSTRUCTIONS Insert barrel nuts (#B) to the holes of the bottom plate (#3). Make sure the barrel nut (#B) holes are facing the same direction as the hole on the back side of bottom plate (#3). Align backplane (#5) to the holes of the bottom plate (#3), then secure by attaching bolts (#A) to barrel nuts (#B).
- Page 10 ASSEMBLY INSTRUCTIONS Prepare 4 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#C). Align mirror connecting rods (#10) to the holes located in the back side of the cabinet body (#1). Secure with bolts (#C). Part #10 x2pcs Hardware...
- Page 11 ASSEMBLY INSTRUCTIONS Slide the side mirrors (#9) down to the metal pole of the middle mirror (#8). Part #9 x2pcs Unscrew the knob, then reattach the knob to the outside of the drawer. Part #7 x2pcs 11 / 14...
- Page 12 ASSEMBLY INSTRUCTIONS Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#E) onto bolts (#A). Align legs (#12) to the holes of the cushion (#11), then secure with bolts (#A). Part #11 x1pc Part #12 x4pcs Hardware #A x8pcs Hardware #D x8pcs...
- Page 13 ASSEMBLY INSTRUCTIONS 13 / 14...
- Page 14 14 / 14...
