Contents
Preparing for installation ················································································ 1
Safety recommendations ··································································································································· 1
Safety labels ··············································································································································· 1
General safety recommendations ·············································································································· 1
Site preparation ·················································································································································· 1
Installation accessories ······································································································································ 2
Installation tools ················································································································································· 2
Installing the AP ····························································································· 1
Installation flowchart··········································································································································· 1
Pre-installation tasks ·········································································································································· 1
Determining the installation position ·················································································································· 2
Mounting the AP················································································································································· 2
APs and the mounting bracket ··················································································································· 2
Installing antennas ····································································································································· 4
Mounting the AP on a wall ························································································································· 5
Mounting the AP on a ceiling ····················································································································· 8
Connecting the AP to a power source ············································································································· 10
Connecting a PoE power source ·············································································································· 10
Connecting a local power source ············································································································· 10
Check after power-on ······························································································································· 10
Accessing the AP··························································································· 1
Logging in to the AP from the console port ········································································································ 1
Connecting the AP to a configuration terminal from the console port ························································ 1
Setting parameters for the configuration terminal ······················································································ 1
Procedure ··················································································································································· 2
Logging in to the AP through Telnet ·················································································································· 2
Cloud mode ················································································································································ 2
Anchor ACmode ········································································································································· 2
Logging in from the Web interface ····················································································································· 3
Cloud mode ················································································································································ 3
Anchor ACmode ········································································································································· 3
Configuring the AP from the Cloudnet platform ·············································· 1
Downloading and installing Cloudnet App Int ···································································································· 1
Logging in to the Cloudnet platform ··················································································································· 1
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA6126 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for H3C WA6126

  • Page 1: Table Of Contents

    Contents Preparing for installation ················································································ 1 Safety recommendations ··································································································································· 1 Safety labels ··············································································································································· 1 General safety recommendations ·············································································································· 1 Site preparation ·················································································································································· 1 Installation accessories ······································································································································ 2 Installation tools ················································································································································· 2 Installing the AP ····························································································· 1 Installation flowchart··········································································································································· 1 Pre-installation tasks ·········································································································································· 1 Determining the installation position ··················································································································...
  • Page 2: Preparing For Installation

    Preparing for installation Safety recommendations Safety labels Safety label Description Hot surface warning label. A device attached with this label might have a hot surface during operation. Install the device in a restricted access location. Only servicing engineers or trained personnel can operate the devices in the access location. General safety recommendations WARNING! Only professional technical personnel can install and remove the AP and its accessories.
  • Page 3: Installation Accessories

    Installation accessories Figure 1 Accessories provided with the AP Figure 2 Optional accessories for the WA6526E Installation tools When installing the AP, you might need the following tools. Prepare the installation tools yourself as required. Figure 3 Installation tools...
  • Page 4: Installing The Ap

    Installing the AP Installation flowchart Figure 4 Installation flowchart Start Complete pre-installation tasks Determine the installation position Mount the AP On a wall On a ceiling Connect the AP to the power source Connect the AP to the network Pre-installation tasks Before installing the AP, perform the following tasks: •...
  • Page 5: Determining The Installation Position

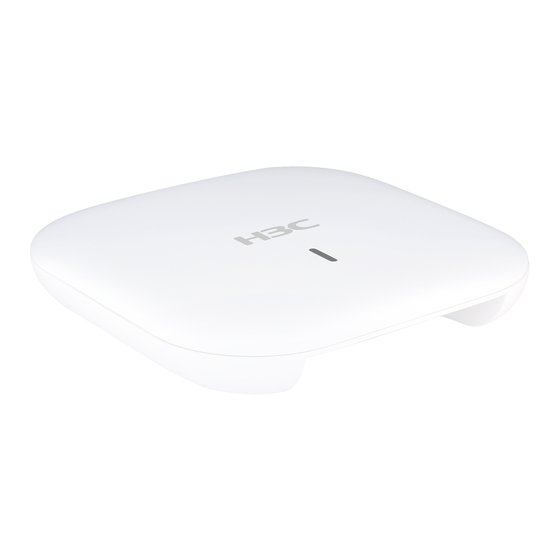

    • Install an M3 × 23.5 security screw as required. The AP can be installed only indoors. You can mount the AP on a wall or a ceiling. APs and the mounting bracket Figure 5 WA6126 AP Figure 6 WA6526 AP...
  • Page 6 Figure 7 WA6526E AP Figure 8 WA6528i AP Figure 9 Mounting bracket (1) Installation hole for securing the mounting bracket to a wall or ceiling (point A) (2) T-rail installation hole (reserved)(point B) (3) Auxiliary hole for securing cables by using cable tie (point C) (4) Installation hole reserved for electrical outlet box installation (point D) (5) Auxiliary hole for threading a cable to connect to the AP (point E) (6) Security hole for an M3 ×...
  • Page 7: Installing Antennas

    Figure 10 Mounting bracket dimensions Installing antennas Only the WA6526E supports external antennas. Install a directional antenna or stick antennas as needed. To install a directional antenna, put the antenna over the AP front, use M2.6 × 6 mm screws to secure the antenna, and then connect the SMA connectors on the antenna to the R-SMA connectors on the AP.
  • Page 8: Mounting The Ap On A Wall

    Figure 12 Installing stick antennas Mounting the AP on a wall Place the mounting bracket against the wall and mark the installation holes on the wall. Figure 13 Marking the installation holes on the wall Drill three holes with a diameter of 6 mm (0.24 in) and a depth of 30 mm (1.18 in) at the marked locations, as shown in Figure...
  • Page 9 Figure 14 Drilling holes in the wall Insert a screw anchor into each hole, and tap the screw anchor with a rubber hammer until it is all flush with the wall surface, as shown in Figure Figure 15 Hammering the screw anchor into the wall Thread the M3 ×...
  • Page 10 Figure 17 Attaching the mounting bracket to the wall Position the four pegs at the AP rear into the keyhole slots in the mounting bracket and then slide the AP down until it sits securely in the keyhole slots, as shown in Figure Figure 18 Attaching the AP to the mounting bracket Use a security Torx screwdriver to fasten the M3 ×...
  • Page 11: Mounting The Ap On A Ceiling

    Figure 19 Fastening the M3 × 23.5 security screw Mounting the AP on a ceiling CAUTION: The ceiling for installing the AP must be less than 18 mm (0.71 in) in thickness, and can bear a load of 5 kg (11.02 lb). If you must install the AP on a ceiling not strong enough, use boards to reinforce the ceiling.
  • Page 12 Figure 21 Attaching the mounting bracket to the ceiling Connect a cable to the AP. Then position the four pegs at the AP rear into the keyhole slots in the mounting bracket and slide the AP until it sits securely in the keyhole slots. Figure 22 Attaching the AP to the mounting bracket (Optional.) You can use a cable tie to secure the cable before attaching the AP to the mounting bracket.
  • Page 13: Connecting The Ap To A Power Source

    Connecting a local power source You can use an AC/DC power adapter to connect the AP to a local power source. No power adapter is provided with the AP. Purchase a power adapter from H3C as required. Table 2 describes the power adapter specifications.
  • Page 14: Accessing The Ap

    Accessing the AP Wi-Fi 6 APs of version 2442 or above allow users to switch the working mode (cloud, anchor AC, or AP) without obtaining the corresponding image file. For more information about the supported working modes, see the release notes for the AP. When the AP operates in cloud or anchor AC mode, you can access and configure the AP from the console port, Web interface, or through Telnet.
  • Page 15: Procedure

    Enable WLAN on the configuration terminal and access WLAN H3C_xxxxxx, where xxxxxx is the last six bits of the AP's MAC address. Enter from the CLI of the terminal. telnet wlan.h3c.com Enter the default username and password. Anchor ACmode When the AP operates in anchor AC mode, only wired connections are available.
  • Page 16: Logging In From The Web Interface

    AP's MAC address. Visit http://wlan.h3c.com from a browser, and then press Enter. Visit http://myap.h3c.com from a browser for a configuration terminal in a version earlier than 2448P10. Enter the default username and password. For security purposes, change the password as prompted after you access the Web interface, and then click OK.
  • Page 17: Configuring The Ap From The Cloudnet Platform

    Open Cloudnet App Int or visit https://oasiscloudnet.h3c.com from a browser. Enter the username and password. After login, you can add the AP to the platform and manage the AP. For more information about platform login and device management, see H3C Cloudnet Deployment Guide.

This manual is also suitable for:

Wa6526Wa6526eWa6528i
