5-4 Installation procedures
Figure 5-1xxx

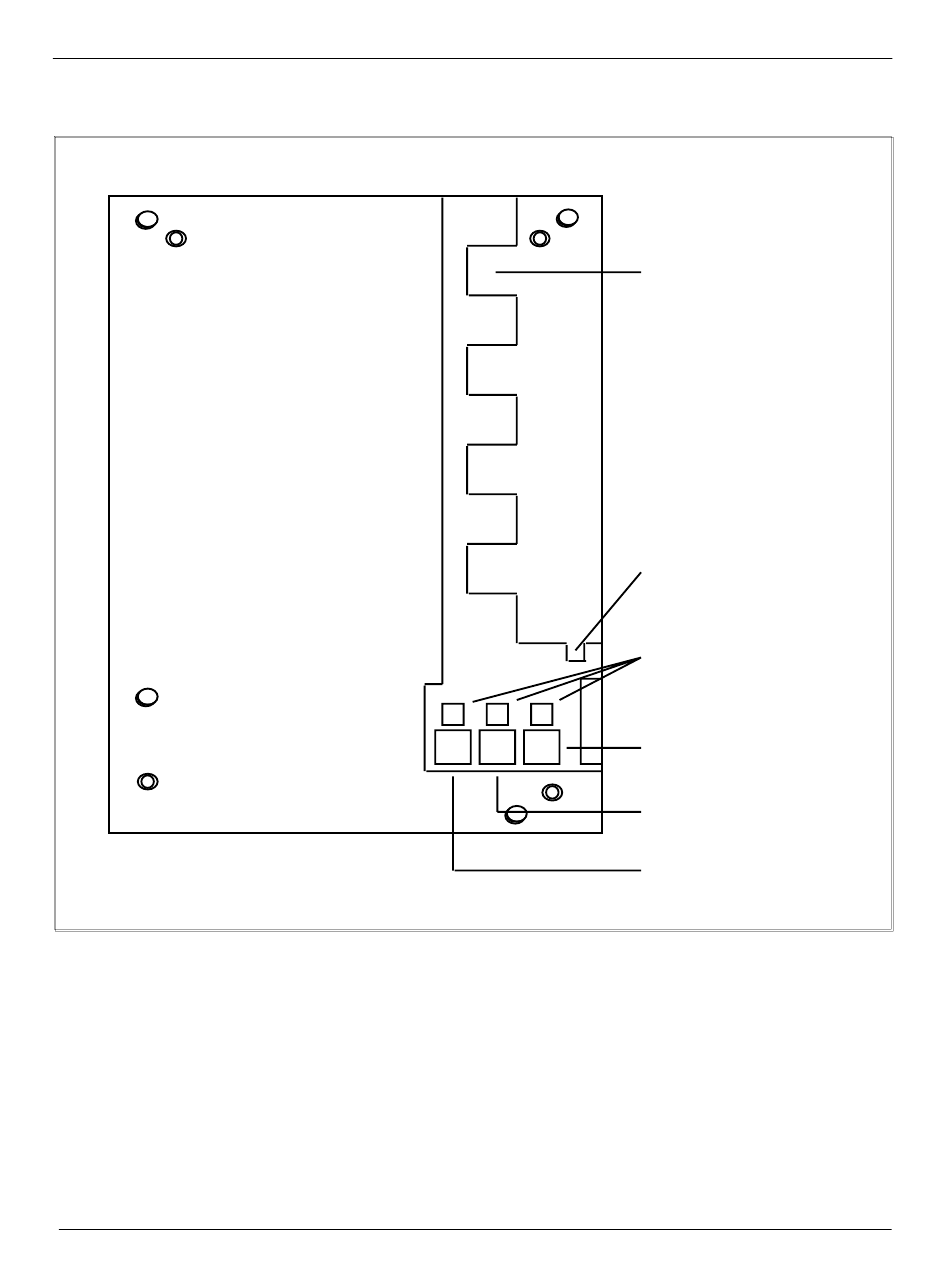

View of jacks and tabs at base of telephone

Data terminal installation

To connect a data terminal to the M3000 Digital Telephone, perform the
steps in Procedure 5-2.
Procedure 5-2
Data terminal installation
1
555-4001-112 Standard 05.01 March 1995
Connect the RS-232-C interface connector from the data terminal to the
matching header connector in the back of the M2000 digital telephone. (See
Figure 5-2.)
Restraining tabs for line and
handsfree cord
Restraining tab for handset
cord
Icons identifying the
connector below
Handsfree unit or headset
TELADAPT connector
Line cord TELADAPT
connector
Handset TELADAPT
connector
