EU-292n User manual


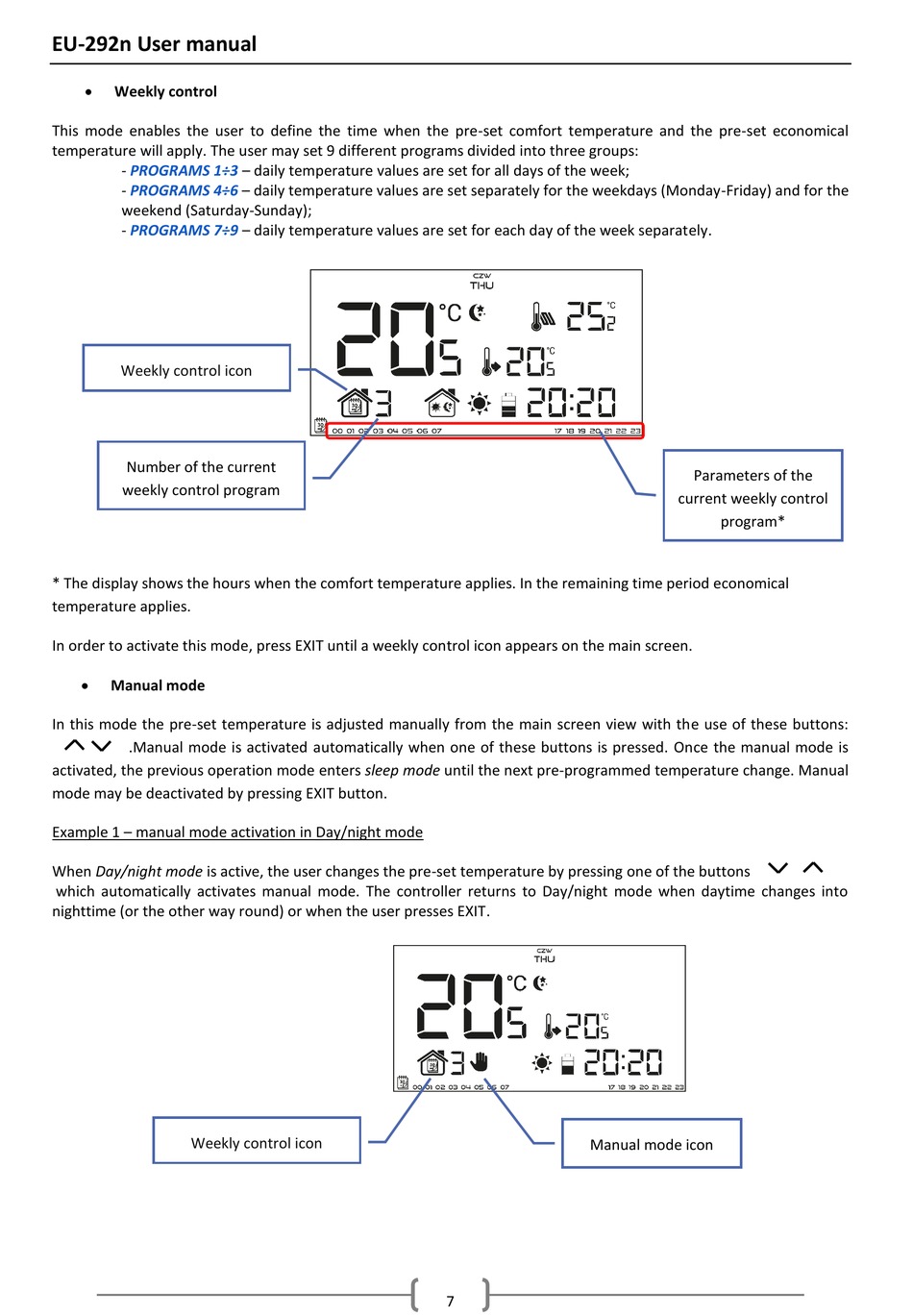

Weekly control
This mode enables the user to define the time when the pre-set comfort temperature and the pre-set economical
temperature will apply. The user may set 9 different programs divided into three groups:
- PROGRAMS 1÷3
- PROGRAMS 4÷6
weekend (Saturday-Sunday);
- PROGRAMS 7÷9
Weekly control icon
Number of the current
weekly control program
* The display shows the hours when the comfort temperature applies. In the remaining time period economical
temperature applies.
In order to activate this mode, press EXIT until a weekly control icon appears on the main screen.

Manual mode
In this mode the pre-set temperature is adjusted manually from the main screen view with the use of these buttons:
.Manual mode is activated automatically when one of these buttons is pressed. Once the manual mode is
activated, the previous operation mode enters sleep mode until the next pre-programmed temperature change. Manual
mode may be deactivated by pressing EXIT button.
Example 1 – manual mode activation in Day/night mode
When Day/night mode is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to Day/night mode when daytime changes into
nighttime (or the other way round) or when the user presses EXIT.
Weekly control icon
– daily temperature values are set for all days of the week;
– daily temperature values are set separately for the weekdays (Monday-Friday) and for the
– daily temperature values are set for each day of the week separately.
Manual mode icon
7
Parameters of the
current weekly control
program*
