Example 2 – manual mode activation in weekly control mode
When Weekly control is active, the user changes the pre-set temperature by pressing one of the buttons
which automatically activates manual mode. The controller returns to weekly control mode when, according to the weekly
schedule, economical temperature changes into comfort temperature (or the other way round) or when the user presses
EXIT.
Manual mode icon

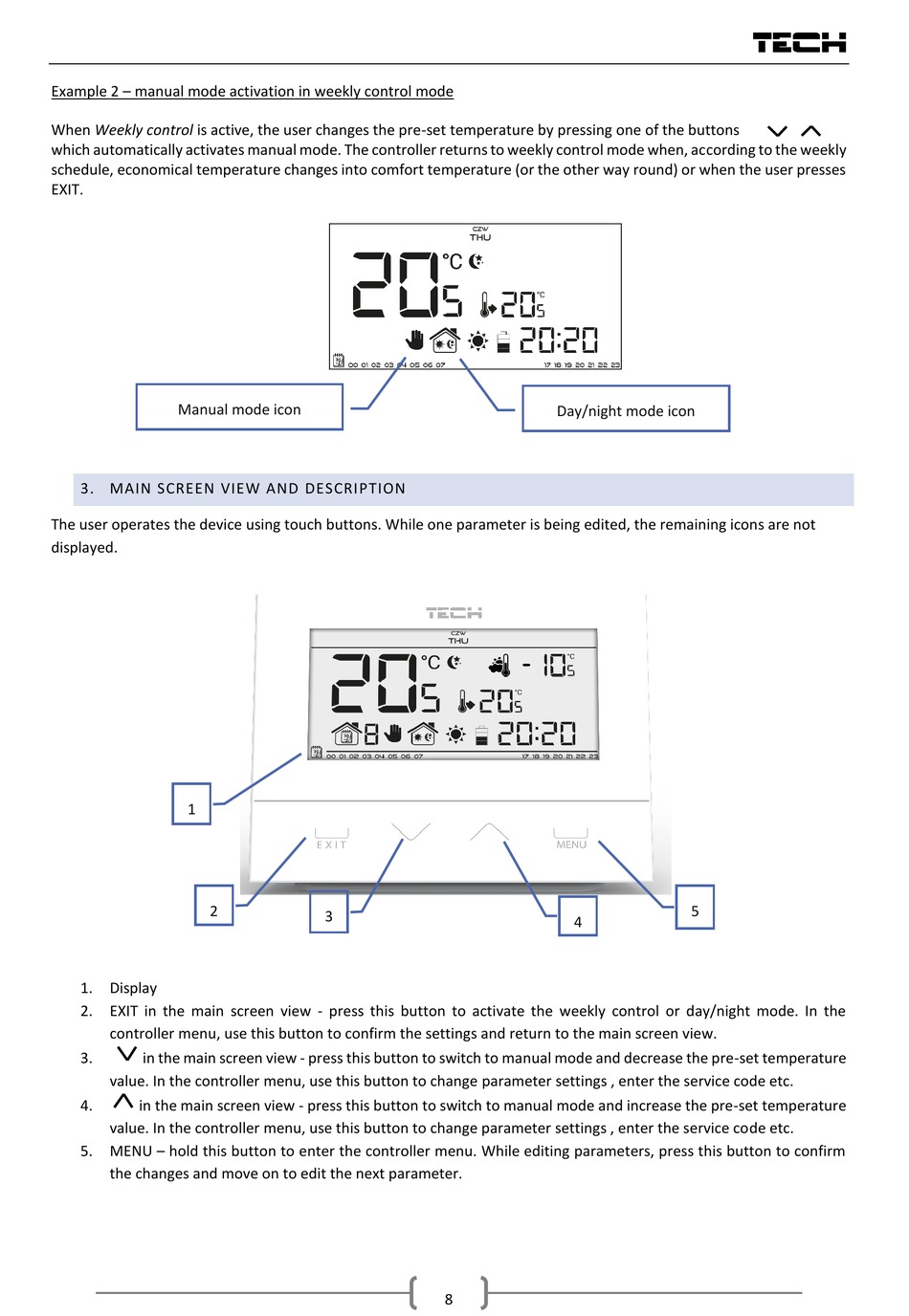

3. MAIN SCREEN VIEW AND DESCRIPTION

The user operates the device using touch buttons. While one parameter is being edited, the remaining icons are not
displayed.
1
2
1. Display
2. EXIT in the main screen view - press this button to activate the weekly control or day/night mode. In the
controller menu, use this button to confirm the settings and return to the main screen view.
3. in the main screen view - press this button to switch to manual mode and decrease the pre-set temperature
value. In the controller menu, use this button to change parameter settings , enter the service code etc.
4. in the main screen view - press this button to switch to manual mode and increase the pre-set temperature
value. In the controller menu, use this button to change parameter settings , enter the service code etc.
5. MENU – hold this button to enter the controller menu. While editing parameters, press this button to confirm
the changes and move on to edit the next parameter.
3
8
Day/night mode icon
5
4
