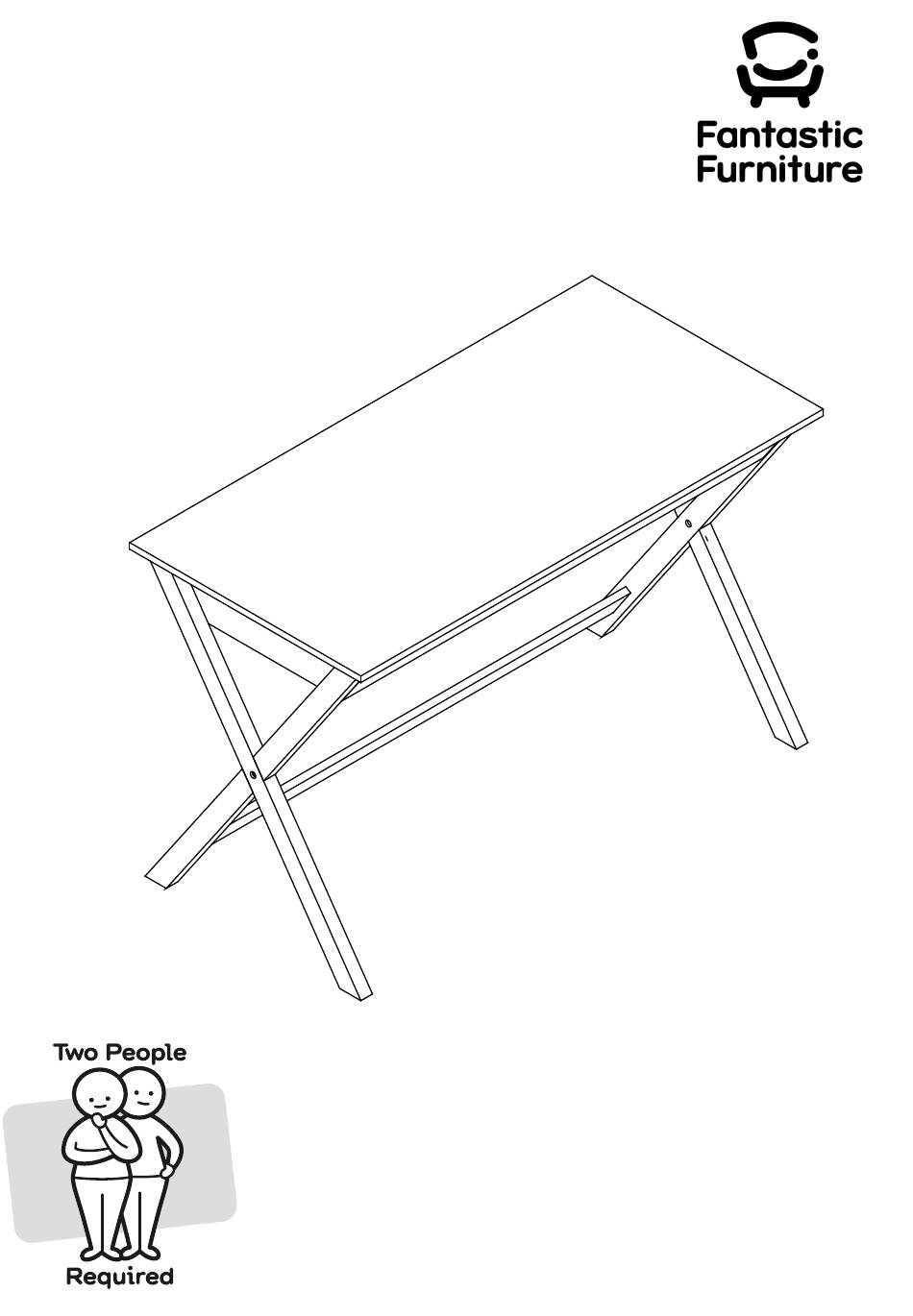

Version 1.1
Hayden
Desk 1 Drawer
fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hayden Desk 1 Drawer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fantastic furniture Hayden Desk 1 Drawer

Summary of Contents for fantastic furniture Hayden Desk 1 Drawer

  • Page 1 Version 1.1 Hayden Desk 1 Drawer fantasticfurniture.com.au...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents Please seek professional advice if you are in doubt of what fixing device to use. Recommended Weight Capacity : 60kg • • • Do not • • Wall attachment guide (with available wood stud) (with available wood stud) crew...
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...

  • Page 4: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 5: What You Need

    What you need to assemble the product Top Panel (P1) Right Side Panel DO NOT USE (P3) Other tools you need: Back Panel Phillips head screwdriver; (P5) (P9) Support Left Side Rail Panel (P4) (P10) (P2) Rail (P6) Parts list Top Panel (P1);...
  • Page 6 Step 1 (P10) (P8) You will need (P9) (P7) 2 x Bolts 2 x Sleeve (H1) Nuts (H2) 4 x Cam Bolts Phillips head (H3) screwdriver Attach leg (P7) to leg (P8) and leg (P9) to leg (P10) with 2 x bolts (H1) and 2 x sleeve nuts (H2) . Attach 4 x cam bolts (H3) into the holes of legs (P8, P9).Tighten with a Phillips head screwdriver.
  • Page 7 Step 3 You will need H6-1 H6-1 2 x Slide Tracks 6 x Small (H6-1) Screws (H5) 4 x Cam Bolts Phillips head H6-1 (H3) screwdriver H6-1 (P2) (P3) Attach 2 x the separated slide tracks (H6-1) to side panels (P2, P3) with 6 x small screws (H5) as shown.Insert 4 x cam bolts (H3) into the holes of side panels (P2, P3).Tighten with a Phillips head screwdriver.
  • Page 8 Step 5 You will need (P2) 2 x Cam Nuts 2 x Small (H4) Screws (H5) (P5) Phillips head screwdriver (P4) Insert 2 x cam nuts (H4) into the holes of back panel (P5). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach left side panel (P2) into place,by sliding cam bolts and cam nuts into place.
  • Page 9 Step 7 (P6) You will need 2 x Cam Nuts Phillips head (P9) (H4) screwdriver Insert 2 x cam nuts (H4) into the holes of rail (P6). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach rail (P6) to leg (P10),by sliding cam bolts and cam nuts into place.
  • Page 10 Step 9 (P8) You will need (P7) 4 x Bolts Phillips head (H13) screwdriver (P2) Attach legs (P7, P8) to left side panel (P2) with 4 x bolts (H13) using a Phillips head screwdriver. Step 10 You will need 6 x Cam Bolts Phillips head (H3) screwdriver...
  • Page 11 Step 11 You will need 6 x Cam Nuts Phillips head (P2) (H4) screwdriver (P5) (P3) (P1) Insert 6 x cam nuts (H4) into the holes of back panel (P5) and side panel (P2, P3). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach back panel (P5) and side panel (P2, P3) to top panel (P1), by sliding cam bolts and cam nuts into place.
  • Page 12 Step 13 (P13) You will need (P15) 6 x Long Phillips head Screws (H7) screwdriver (P16) (P12) Attach drawer sides (P12, P13) and drawer support (P16) to drawer back (P15) with 6 x long screws (H7) using a Phillips head screwdriver. Step 14 (P14) (P13)
  • Page 13 Step 16 You will need (P11) 5 x Cam Nuts Phillips head (P13) (H4) screwdriver (P16) (P12) Insert 5 x cam nuts (H4) into the holes of drawer sides (P12, P13) and drawer support (P16). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach drawer front (P11) to drawer sides (P12, P13) and drawer support (P16), by sliding cam bolts and cam nuts into place.
  • Page 14 Step 18 × × Move inner ball bearing track outward. Push middle track in. Gently insert slide runner into ball bearing track. It needs two people: carefully turn the table over to an upright position. Position drawer so that slide runner (H6-2) aligns with slide track (H6-1) as shown.Gently push drawer into the closed position.

  • Page 15: Job Complete

    We strongly advise that you use Step 19 the wall safety strap provided to prevent the unit toppling You will need (P1) 1 x Safety 1 x Screw Strap (H10) (H11) 1 x Washer Phillips head (H12) screwdriver Use screw (H11) and washer (H12) to attach safety strap (H10) securely on top panel (P1) as shown. Seek advice from a qualified Step 20 trades person on how to...
