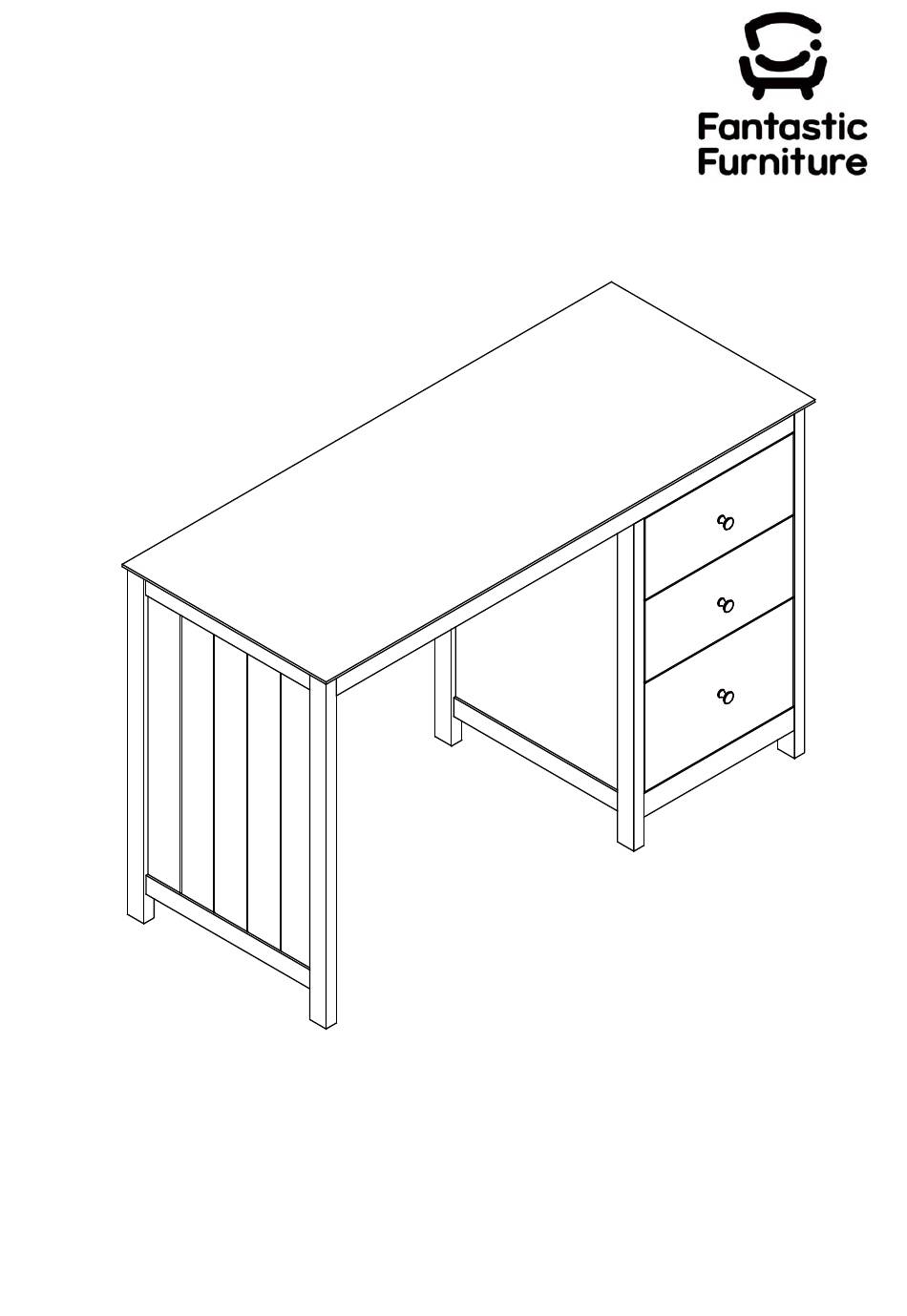

Version 1.0
HAMILTON
Desk 3 Drawer
fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the HAMILTON Desk 3 Drawer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fantastic furniture HAMILTON Desk 3 Drawer

Summary of Contents for fantastic furniture HAMILTON Desk 3 Drawer

  • Page 1 Version 1.0 HAMILTON Desk 3 Drawer fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love Love it? Share it! Fantastic buy! Share how it looks at home for your chance to win a $250 Fantastic Furniture Gift Card! fantasticfurniture PAGE 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need to assemble the product Right Side Top Panel Panel (P1) (P3) DO NOT USE Back Panel (P10) Other tools you need: Phillips head screwdriver; Rail Hammer (P5) Rail (P6) Divider Left Side (P4) Parts list Panel (P2) Top Panel (P1);...
  • Page 5 Step 1 You will need (P2) 5 x Cam Bolts Phillips Head Screwdriver (H3) 2 x Plastic Hammer Glides (H14) Attach 5 x Cam Bolts (H3) to Left Side Panel (P2) by tightening with the Phillips Head Screwdriver. Secure 2 x Plastic Glides (H14) to the bottom of Left Side Panel (P2) with the Hammer.
  • Page 6 (P4) Step 3 You will need 6 x Cam Bolts 3 x CL Runner (H3) Tracks (H6) FLIP 9 x Small 2 x Plastic Screws (H5) Glides (H14) (P4) Phillips Head Hammer Screwdriver Attach 2 x Cam Bolts (H3) and 3 x CL Runner Tracks (H6) to Divider (P4) with 9 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 7 (P5) Step 5 (P8) (P5) You will need 1 x Dowels 5 x Cam Nuts (H1) (H4) Countersink face bottom Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.
  • Page 8 Step 7 (P5) You will need (P4) 4 x Cam Nuts Phillips Head (H4) Screwdriver (P5) Insert 4 x Cam Nuts (H4) into Rails (P5x2) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Rails (P5x2) to Divider (P4) by tightening all cam nuts with the Phillips Head Screwdriver.
  • Page 9 Step 9 You will need (P3) (P4) (P8) 3 x Dowels 3 x Cam Nuts (H1) (H4) (P6) Phillips Head Screwdriver (P7) Insert 3x Dowels (H1) into Right Side Panel (P3). Insert 3 x Cam Nuts (H4) into Rails (P6&P7&P8) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 10 Step 11 You will need (P1) 6 x Dowels (H1) 3 x Long Phillips Head Screws (H2) Screwdriver (P3) (P8) (P4) (P2) Insert 6 x Dowels (H1) and 6 x Cam Nuts (H4) into Divider & Right & Left Side Panels (P4&P2&P3) as shown.
  • Page 11 (P12) Step 13 (P17) (P18) (P13) You will need Phillips Head Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so (P16) (P11) it tightens over the...
  • Page 12 Step 15 (P15) You will need (P12) (P19) 12 x Long Phillips Head Screws (H2) Screwdriver (P13) (P17) (P18) (P11) (P16) Attach Drawer Backs (P19&P15x2) to Left & Right Drawer Sides (P17&P18&P12x2&P13x2) with 12 x Long Screws (H2) by tightening with the Phillips Head Screwdriver. Ensure the Drawer Base lines up with the grooves the whole way around the drawer before securing.
  • Page 13 Step 17 You will need 3 x Handle 3 x Handles Bolts (H10) (H11) (P16) Phillips Head Screwdriver (P11) Attach 3 x Handles (H11) to Drawer Fronts (P11x2&P16) with 3 x Handle Bolts (H10) by tightening with the Phillips Head Screwdriver. Step 18 (P11) (P11)

  • Page 14: Job Complete

    Step 19 You will need 8 x Wedges 8 x Wedge (H12) Screws (H13) (P9) Phillips Head Screwdriver (P10) Secure Back Panel (P9&P10) in place with 8 x Wedges (H12) using 8 x Wedge Screws (H13) by tightening with the Phillips Head Screwdriver. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully.
