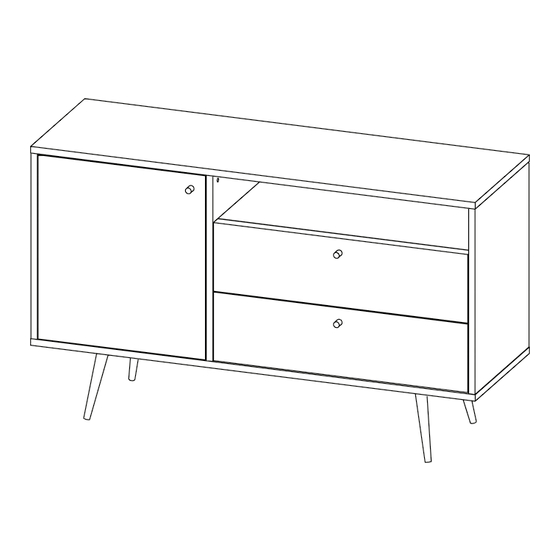

- Page 1 Version 2.0 Seaforth Buffet 2 Drawer www.fantasticfurniture.com.au...
- Page 2 WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. been provided To avoid any serious or fatal injury, this product has with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface. Fixing devices are not included since different surface materials require different attachments.
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten before you begin assembly. screws until the item is fully assembled. -
Page 4: What You Need
What you need to assemble the product Other tools you need Phillips head screwdriver (P1) Large shelf Short shelf (P7) (P6) Back panel Left side (P8) (P3) Right side (P5) Middle part (P4) Back panel (P9) Bottom (P2) Door Legs (P10) 4 x (P17) Drawer bottom... - Page 5 What you need to assemble the product Cam bolt Cam nut Dowel Screw Bolt 22 x (H1) 22 x (H2) 16 x (H3) 6 x (H4) 16 x (H5) Screw Screw Slide Screw Handle 36 x (H6) 12 x (H7) 4 x (H8) 3 x (H9) 3 x (H10)
- Page 6 Step 1 You will need 4 x Slide (H8) H8-1 H8-2 Separate the Drawer Slide Runners (H8-2) and Slide Tracks (H8-1) from Slide (H8) by following the step below. Extend the Slide Runner (H8-2) all the way forwards. Press the plastic release lever of the slide down and the pull the slide runner (H8-2) completely out.
- Page 7 Step 3 You will need 12 x Cam bolt 12 x Cam nut (H1) (H2) 2 x Screw 2 x Handle (H9) (H10) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut.
- Page 8 Step 4 H8-2 You will need H8-2 4 x Slide 12 x Screw runner (H8-2) (H6) Attach drawer slide runner (H8-2) to the assembled drawer by using screw (H6). Repeat step 2, 3 and 4 for drawer no. 2. Step 5 H8-1 You will need 4 x Slide...
- Page 9 Step 6 You will need 4 x Cam bolt 4 x Cam nut (H1) (H2) 4 x Dowel This is how a cam nut works..(H3) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 10 Step 7 You will need 6 x Cam bolt 6 x Cam nut (H1) (H2) 6 x Dowel (H3) This is how a cam nut works..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 11 Step 8 Please make sure that the PVC covered side is facing to the front Push the bottom back panel (P8) and top back panel (P9) into the buffet frame. Step 9 You will need 6 x Screw (H4) 6 x Dowel (H3) 1 x Allen key (H13) Attach the bottom (P2) by using dowel (H3), screw...
- Page 12 Step 10 You will need 16 × Bolt 1 × Allen Key (H5) (H13) H5 H5 H5 H5 H5 H5 Attach the legs (P17) to the buffet, by using bolt (H5) and allen key (H13). www.fantasticfurniture.com.au PAGE 12...
- Page 13 Step 11 You will need 4 x Shelf support (H12) Screw the shelf support (H12) to the buffet and push the short shelf into the buffet. Step 12 You will need 4 x Screw 1 x Screw (H6) (H9) 1 x Handle 2 x Hinge (H10) (H11)
- Page 14 Step 13 You will need (H19) 8 x Screw 1 x Rubber (H6) pad (H19) (H19) Attach the door (P10) to the buffet by using screw (H6). Stick rubber pad (H19) on to shelf as shown. Step 14 Hole (A) Hole (B) Position drawer so that slide runner (H8-2) aligns with slide track (H8-1) as show, gently push drawer into closed position.
- Page 15 Step 15 We strongly advise that you use the wall strap provided to protect the You will need buffet from toppeling (H17) 8 x Back panel 12 x Connector connector Screw (H15) (H14) (H18) (H16) 1 x Wall 1 x Washer strap (H17) (H16) (H14)
- Page 16 Step 16 You will need Seek advice from a qualified trades person on how to attach this to your specific wall. wall screw and wall plug, which are not provided, please use appropriate fixture for your wall. 1 x Washer (H16) (H16) (H15)
- Page 17 Step 17 You will need STEP 17.1 Phillips head screwdriver STEP 17.2 STEP 17.3 STEP 17.4 www.fantasticfurniture.com.au PAGE 17...
-
Page 18: Job Complete
Step 18 Job Complete! In the interest of our environment please dispose of all packaging thoughtfully . www.fantasticfurniture.com.au PAGE 18...
