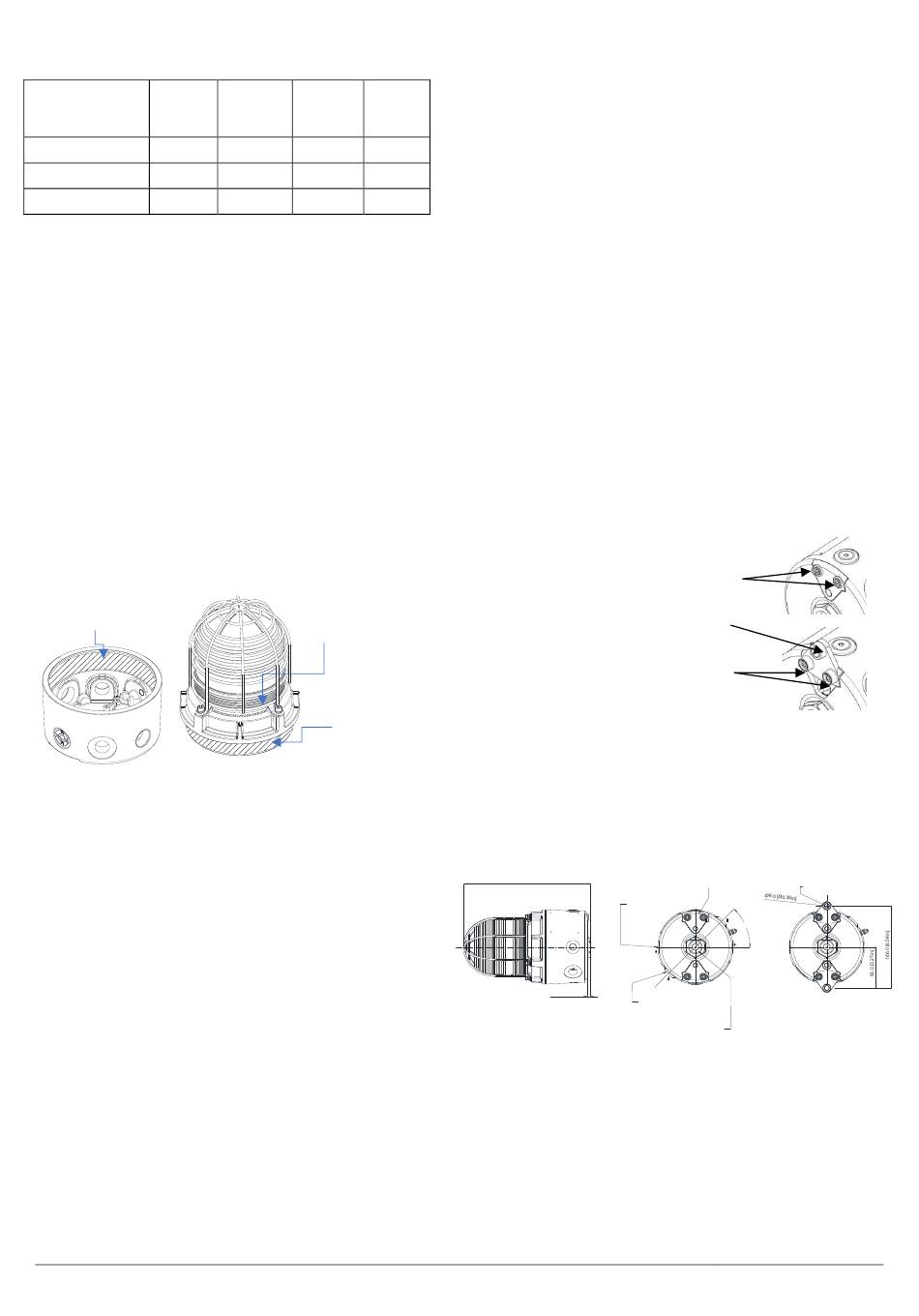

Special Conditions Of Use; Location And Mounting; Installation - E2S D1xB2X05-S Instruction Manual

2.8 Electrical Ratings
Model Nom.
D1xB2 Voltage
X05DC024-S 24Vdc
X10DC024-S 24Vdc
X15DC024-S 24Vdc
#
Rated at 1Hz
Table 1: Electrical Ratings
It is important that a suitable power supply is used to run the
equipment. The power supply selected must have the
necessary capacity to provide the input current to all the units.
The input current will vary according to the voltage input level.

3) Special Conditions of Use

The enclosure coating is non-conductive and may generate an
ignition-capable level of electrostatic charges under certain
extreme conditions. The user should ensure that the
equipment is not installed in a location where it may be
subjected to external conditions (such as high pressure steam)
which might cause a build-up of electrostatic charges on non-
conducting surfaces. Additionally, cleaning of the equipment
should be done only with a damp cloth.
Flame Path Positions
Flame Path internal thread on
base shown hatched
Figure 1: Flame Path.

4) Installation

There are no restrictions on unit orientation.
The junction box must only be installed by suitably qualified
personnel in accordance with the latest issues of the relevant
standards:
EN60079-14 / IEC60079-14: Explosive atmospheres -
Electrical installations design, selection and erection
EN60079-10-1 / IEC60079-10-1: Explosive
atmospheres - Classification of areas. Explosive gas
atmospheres
EN60079-10-2 / IEC60079-10-2: Explosive
atmospheres - Classification of areas. Explosive dust
atmospheres
The installation of the units must also be in accordance with
any local codes that may apply and should only be carried out
by a competent electrical engineer who has the necessary
training.
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
Document No. D191-00-621-IS
Nom. Max
Voltage
operating Current
Range
current
20-28Vdc 295 350
20-28Vdc 605 710
20-28Vdc 835 920
Cemented Joint
between glass
dome and metal
casting on lid
shown hatched
Flame Path
external thread
on lid shown
hatched
Issue 1 27-10-22
4.1 Safe Installation Requirements
To maintain the ingress protection rating and mode of
protection, the cable entries must be fitted with suitably
certified cable entry and/or
installation. If conduit is used for installation, seal conduit
within 18 inches from the enclosure.
If entries are fitted with adaptors they must be suitably certified
for the application. Fitting of blanking elements into adaptors
is not permitted.
Check that the 'O' ring seal is in place before replacing the
explosionproof cover.
Lens Guard must be fitted for Class Division installations.

5) Location and Mounting

The location of the beacon should be made with due regard to
the area over which the warning signal must be visible. It
should only be fixed to services that can carry the weight of the
unit.
The D1xB2X beacon can be mounted using one of three
methods.
1. The beacon can be surface mounted by removing,
rotating and reinstalling the stowed mounting lugs. These
are suitable for 6mm diameter fixings.
a. Remove 2 x M5 fasteners per
mounting lug
b. Reverse and rotate lug and
reseat onto enclosure
c. Secure lug using the 2 x M5
Fasteners
2. Alternatively the beacon can be conduit mounted using
the 3/4" NPT entry on the base of the unit.
3. Additionally, the beacon can be mounted using the ratchet
adjustable stainless-steel wall bracket assembly. This is
available as an accessory – part code: SP77-0001.
2 OFF FEET SUPPLIED IN STOWED POSITION
SUITABLE FOR POLE OR BRACKET
252.3 [9.93in] MOUNTING BEACON
RETAINED BY 2 OFF M5 SCREWS PER FOOT
3/4" NPT SIDE ENTRY
2 OFF POSITIONS
MARKED *
7.00 [0.28in]
M20x1.5 SIDE ENTRY
2 OFF POSITIONS
MARKED #
Figure 2: Fixing Location for Beacon.
www.e2s.com
blanking devices during
2 OFF FEET SUPPLIED IN STOWED POSITION
SUITABLE FOR POLE OR BRACKET
MOUNTING BEACON
RETAINED BY 2 OFF M5 SCREWS PER FOOT
45.0°
BASE CONFIGURED WITH
FEET SET OUT FOR SURFACE MOUNTING
BEACON
3/4" NPT BOTTOM ENTRY
FOR POLE MOUNTING
BEACON
Tel: +44 (0)208 743 8880
Sheet 4 of 15
