E2S D1xC3 Instruction Manual

Alarm bar, beacon and alarm horn
Hide thumbs Also See for D1xC3:
1
2
3
4
5
6
7

Advertisement

Table of Contents

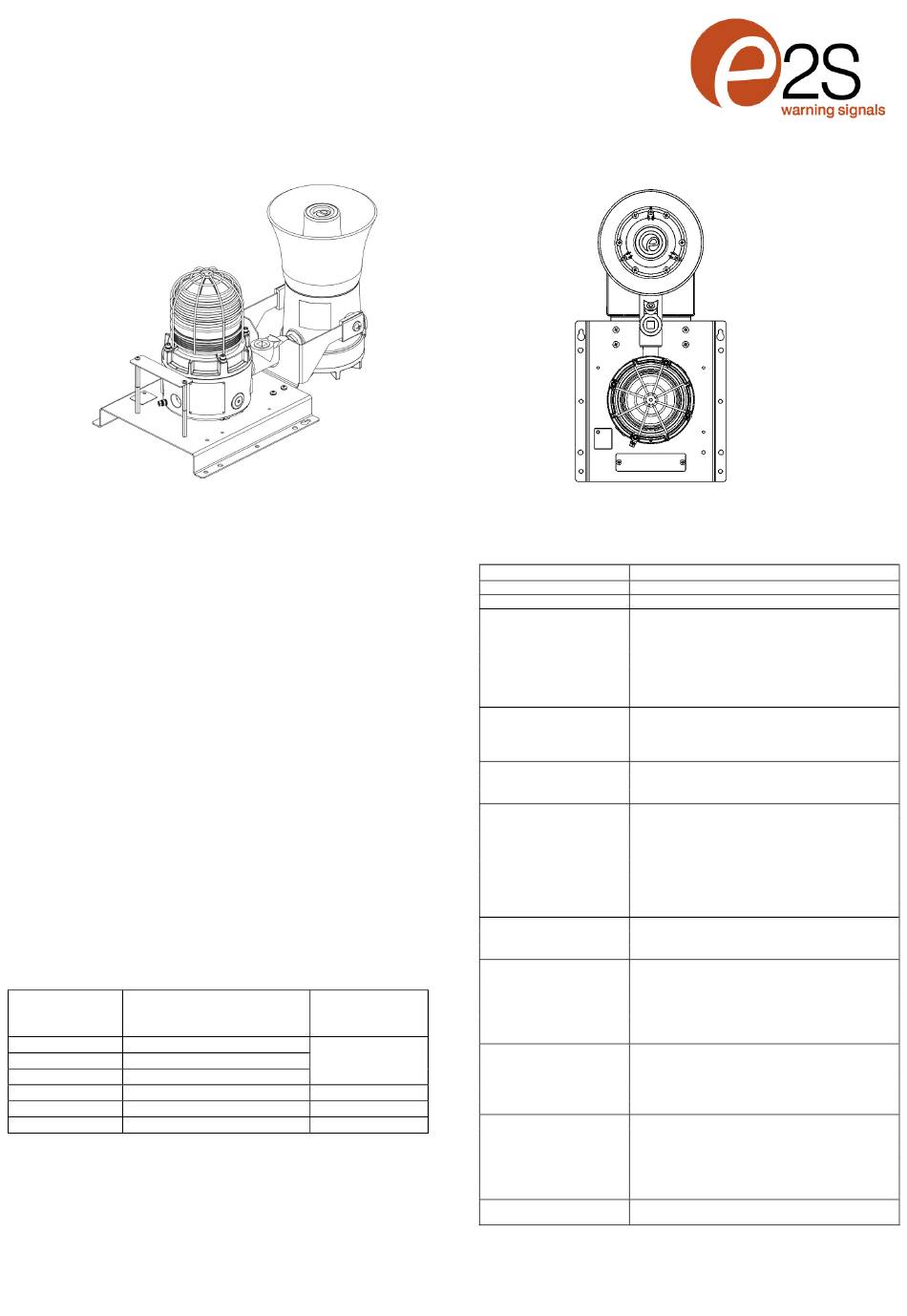

INSTRUCTION MANUAL
D1xC3 Alarm Bar
Beacon and Alarm Horn
1) Warnings
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
2) Rating & Marking Information
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
All individual unit ratings must be suitable for the installation.
3) Type Approval Standards
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
4) Installation Requirements
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
5) Special Conditions of Use
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
Component
Component Description
Part Code
Reference
D1XB2X05
5J Xenon Strobe Beacon
D1XB2X10
10J Xenon Strobe Beacon
D1XB2X15
15J Xenon Strobe Beacon
D1XB2LD2
LED Beacon
D1XS1
Alarm Horn Sounder
D1XS2
Alarm Horn Sounder
Table 1: Product Instruction Manual Reference
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D226-00-125-IS_Issue_4
6) Part Coding
Part Code:
Product Type
Junction Box
Beacon Type
(Add Code for each
Beacon in Alarm Bar)
Sounder Type
Voltage
Cable Entries [e]
Stopping Plug / Adaptor
Material [m]
Guard / Tag Material [s]
Document
Number
Product Version [v]
D191-00-201-IS
D191-00-401-IS
D190-00-001-IS
Product Option [o]
D190-00-101-IS
Assembly Colour [x]
20/04/2023
Sheet 1 of 5
Identifier - Description
D1xC3
N2 = No Junction Box
1Y = D1xB2X05
2Y = D1xB2X10
3Y = D1xB2X15
5Y = D1xB2LD2
Where Y = Lens Colour, choose from:
A = Amber, B = Blue, C = Clear, G = Green,
M = Magenta, R = Red, Y = Yellow
S1F = D1xS1 Flare Sounder
S1R = D1xS1 Radial Sounder
S2F = D1xS2 Flare Sounder
S2H = D1xS2 Large Flare Sounder
DC024 = 24Vdc
AC115 = 115-120Vac 50/60Hz
AC230 = 220-230Vac 50/60Hz
A = 1 x M20x1.5mm + 1 x M20 (Adaptor)
B = 2 x 1/2" NPT (Adaptors)
C = 1 x 3/4" NPT + 1 x 3/4" NPT (Adaptor)
D = 2 x M25x1.5mm (Adaptors)
E = 1 x 1/2" NPT (Adaptor) + 1 x M20x1.5mm
F = 1 x 1/2" NPT (Adaptor) + 1 x 3/4" NPT
G = 1 x M25x1.5mm (Adaptor) + 1 x M20
M = 1 x 3/4" NPT + 1 x M20x1.5mm – Default
B = Brass
N = Nickel Plated
S = Stainless Steel
1 = 316 St.Steel Guard & 316 Tag
2 = As (1) with Traffic Light Cowl
3 = 316 St.Steel Guard, 316 Tag & Duty Labels
4 = As (5) with Traffic Light Cowl
5 = 316 St.Steel Guard, 316 Tag & Duty Labels
attached by steel wire
A = IECEx/ATEX/UL/cUL Class I Zone 1
B = IECEx/ATEX
C = UL/cUL Class Div 1
S = SIL2/IECEx/ATEX/UL/cUL Class I Zone 1
T = Relay/ Telephone Initiation IECEx/ATEX
1 = Standard Wiring (Positive Switching)
2 = Independent Wiring (Positive Switching)
3 = Alt. Standard Wiring (Negative Switching)
4 = Independent Wiring (Negative Switching)
W = Special Wiring
X = Special Configuration
R = Red, G = Grey
Other colours also possible, contact E2S sales
www.e2s.com
Tel: +44 (0)208 743 8880
