E2S D1xB2X05-S Instruction Manual page 10

16) SIL 2 Wiring Configuration and Beacon Set-Up
Beacon Supply Terminals
J2 Header – Fault Resistor (FR)
Shown in factory default position A
(see section 17-3) removes power
supply terminal block. Fault resistor
& relay RLY 1-1out of circuit.
J1 Header – Current Sense Resistor (CSR)
Shown in factory default position A
(see section 17-3), places TB1 Current
sense resistor in circuit
Power & Communication with the system control panel can be configured in two ways: - Although it is highly recommended that the
unit is wired as stated in section 17-1 as a 4-Wire System.
Impress House, Mansell Road, Acton, London W3 7QH
E2S Warning Signals
Document No. D191-00-621-IS
+
+
-
-

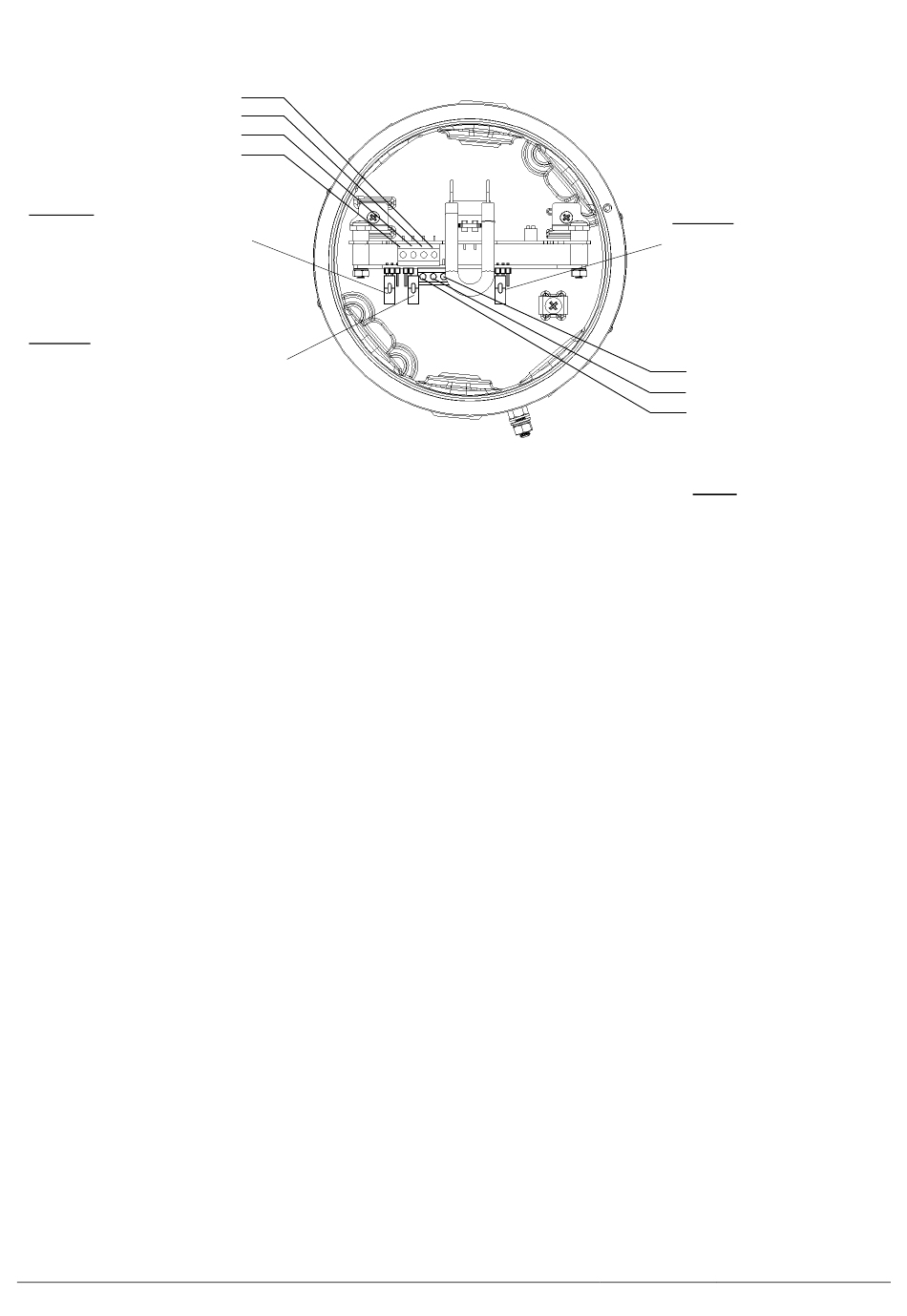

Figure 10: Terminals and header pins for beacon.
Issue 1 27-10-22
J7 Header – Hard Reset
Shown in factory default position A
(see section 17-4), set to
Normal operation
1
2 SIL Relay Terminals TB1
3
www.e2s.com Tel: +44 (0)208 743 8880
Sheet 10 of 15
