Argos 482/8893 Assembly Lnstructions

Argos 482/8893 Assembly Lnstructions

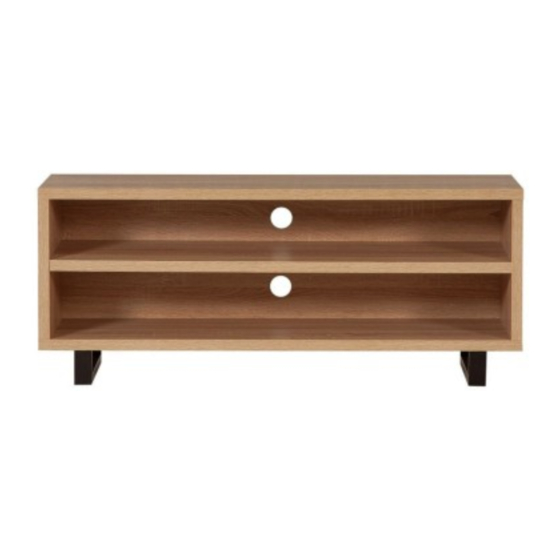

Loop leg tv unit

Advertisement

Quick Links

Loop leg TV Unit
Assembly lnstructions - Please keep for future reference
482/8893
Dimensions
Width - 1100 mm
Depth - 400 mm
Height - 450 mm
Important - Please read these instructions fully before starting assembly
Customer Helpline: 0345 6400 800
If you need help or have damaged or missing parts, call the
Issue 25 - 09 - 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the 482/8893 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argos 482/8893

  • Page 1 Loop leg TV Unit Assembly lnstructions - Please keep for future reference 482/8893 Dimensions Width - 1100 mm Depth - 400 mm Height - 450 mm Important - Please read these instructions fully before starting assembly Customer Helpline: 0345 6400 800...
  • Page 2 Safety and Care Advice Assemble the item as close We do not Check you have all the components and tools listed on to its final position (in the same recommend the pages 2 and 3. use of power room) as possible. Remove all fittings from the drill/drivers for Assemble on a soft level...
  • Page 3: Components - Parts

    Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 underside Base panel x 1 Leg x 2 (350*80*40mm) (1100*400*25mm) inside inside Side panel (right) x 1 Side panel (left) x 1 (320*399*x25mm) (320*399*25mm) underside Back panel x 1...
  • Page 4 Components - Fittings 0345 6400 800 16mm M6 Bolt x 8 42mm Wood screw x 4 Wooden dowel x 8 Metal dowel x 4 Locking nut x 4 Shelf support pin x 4 4mm Allen key x 1 Sticker x 4 Tools required Phillips screwdriver Ruler/tape measure...
  • Page 5 Assembly Instructions Preparing top Carefully place upside down on the floor with the fixing holes facing up. Screw metal dowels into top Note : Screw dowels far as shown. Do not over tighten. underside Assembling legs Carefully place base panel upside down on the floor with the fixing holes facing up.
  • Page 6 Assembly Instructions Attaching sides Carefully turn base panel onto it’s side as shown. Fit wood dowels into the holes in base panel shown. Locate side panels into position and secure using screws Note : Ensure the grooves in side panels Align grooves are correctly aligned with the groove in base panel...
  • Page 7 Assembly Instructions Assembling top Fit wood dowels into the top of side panels Carefully locate top into position. Insert locking nuts into the holes in side panels Turn locking nuts clock- wise to secure. Stickers can be used to cover the fixing holes. Locating shelf Insert shelf support pins at the desired height.
  • Page 8 Assembly Instructions Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW...
