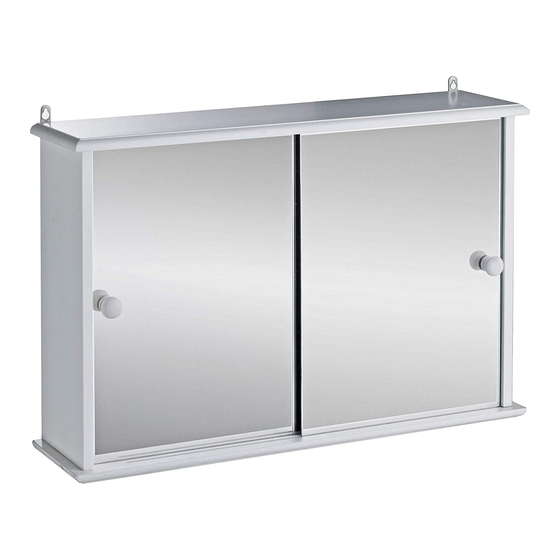

SLIDING MIRROR DOOR CABINET
Simple Assembly Instructions
IMPORTANT
1.
Read these instructions
carefully and familiarise
yourself with the
procedures.
2.
Check that you have all
the component parts
and fittings listed below
and familiarise yourself
with each part before
proceeding.
3.
To avoid scratching it is
recommended that you
assemble the cabinet
on a soft level surface.
COMPONENT PARTS AND FITTINGS
A
Base x 1
B
Side x 2
C
Top with blocked
runners x 1
D
Back x 1
E
Shelf x 1
F
Glass
Door x 2
G
Door Knob x 2
H
Washer x 2
I
Doorknob
Screw x 2
J
40mm Screw x 8
Page 1
K
Cap x 8
L
Shelf Support
x 4
M
50mm Screw
x 2
N
Wall plug x 2
Advertisement
Table of Contents
Related Manuals for Argos 484/2831
Summary of Contents for Argos 484/2831
- Page 1 SLIDING MIRROR DOOR CABINET Simple Assembly Instructions Page 1 IMPORTANT Read these instructions carefully and familiarise yourself with the procedures. Check that you have all the component parts and fittings listed below and familiarise yourself with each part before proceeding. To avoid scratching it is recommended that you assemble the cabinet...
- Page 2 Assembly Instructions Page 2 THE FRAME fig. 1 1. Take Base and secure it to Side using Caps and Wood Screws (See figs 1 and 2). fig. 2 2. Attach the second Side to Base in the same way (See figs 1 and 3). 3.
- Page 3 Assembly Instructions Page 3 FITTING DOOR KNOBS Back of glass door 1. Fit Screw into Washer and push it through the hole in the back of the Glass Door . Then carefully screw the Doorknob on the glass side of the door. (See fig 7). FITTING THE DOORS fig.
