Digital Outputs

16 optically isolated digital outputs are provided via 2 10-pin terminal block connecters (Dinkle
0221-2010 or equivalent). Performance is optimized for 12-24V operation. Operating voltage should
not exceed 24V. Each output has a 0.5A resettable fuse.
Each group of 4 outputs (DO0-3, DO4-7, DO8-11, and DO12-15) is software-configurable to sourcing or
sinking (high- or low-side switched). For all configurations, customers must supply a VCC and GND
connection on the same connector as the outputs in use. No power is sourced for the outputs through
the system power connector.

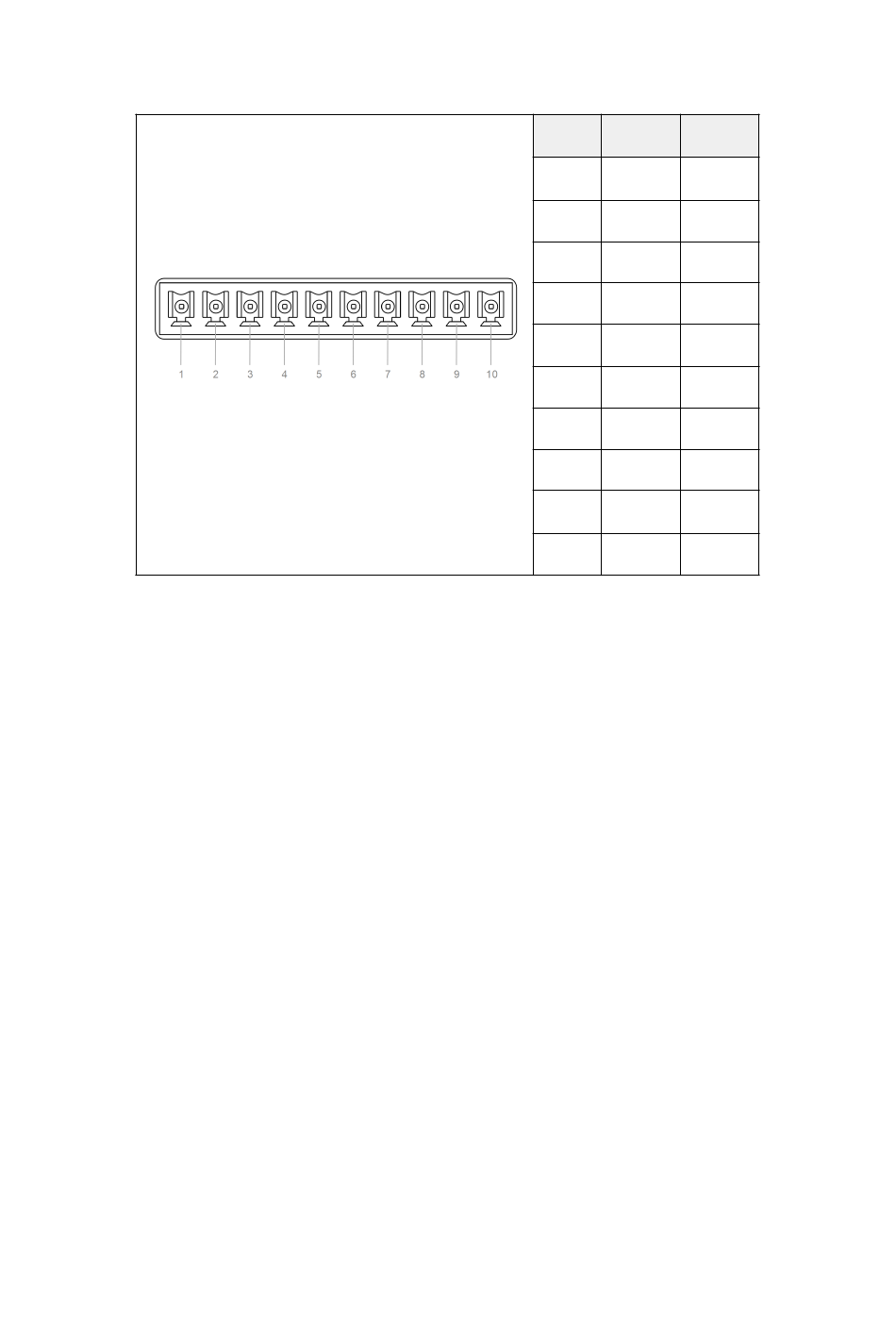

DO terminal pinout
Pin DI 1 DI 2
1 VCC VCC
2 DO0 DO8
3 DO1 DO9
4 DO2 DO10
5 DO3 DO11
6 DO4 DO12
7 DO5 DO13
8 DO6 DO14
9 DO7 DO15
10 GND GND
