USB 2.0

Two USB 2.0 ports are provided for peripheral usage. Together, they may deliver a maximum of 2A at
5V, depending on peripheral and device configuration.

Reset Button

The front reset button can be used to trigger a reset of the CM4. The reset button is a momentary
contact button that is tool-accessible through the chassis.

Digital Inputs

16 optically isolated digital inputs are provided via 2 10-pin terminal block connecters (Dinkle
0221-2010 or equivalent). Performance is optimized for 12-24V operation.
Each group of 4 inputs (DI0-3, DI4-7, DI8-11, and DI12-15) is software-configurable to active-high or
active-low. The active-low configuration activates internal pull-ups to the VCC pin of the same header.
If the active-low configuration for a pin group is desired, customers must connect both VCC and GND
of that group' s connector. If the active-high configuration is used, customers must connect the GND.
Inputs are active at voltages exceeding 11.5V and inactive below 4.5V.

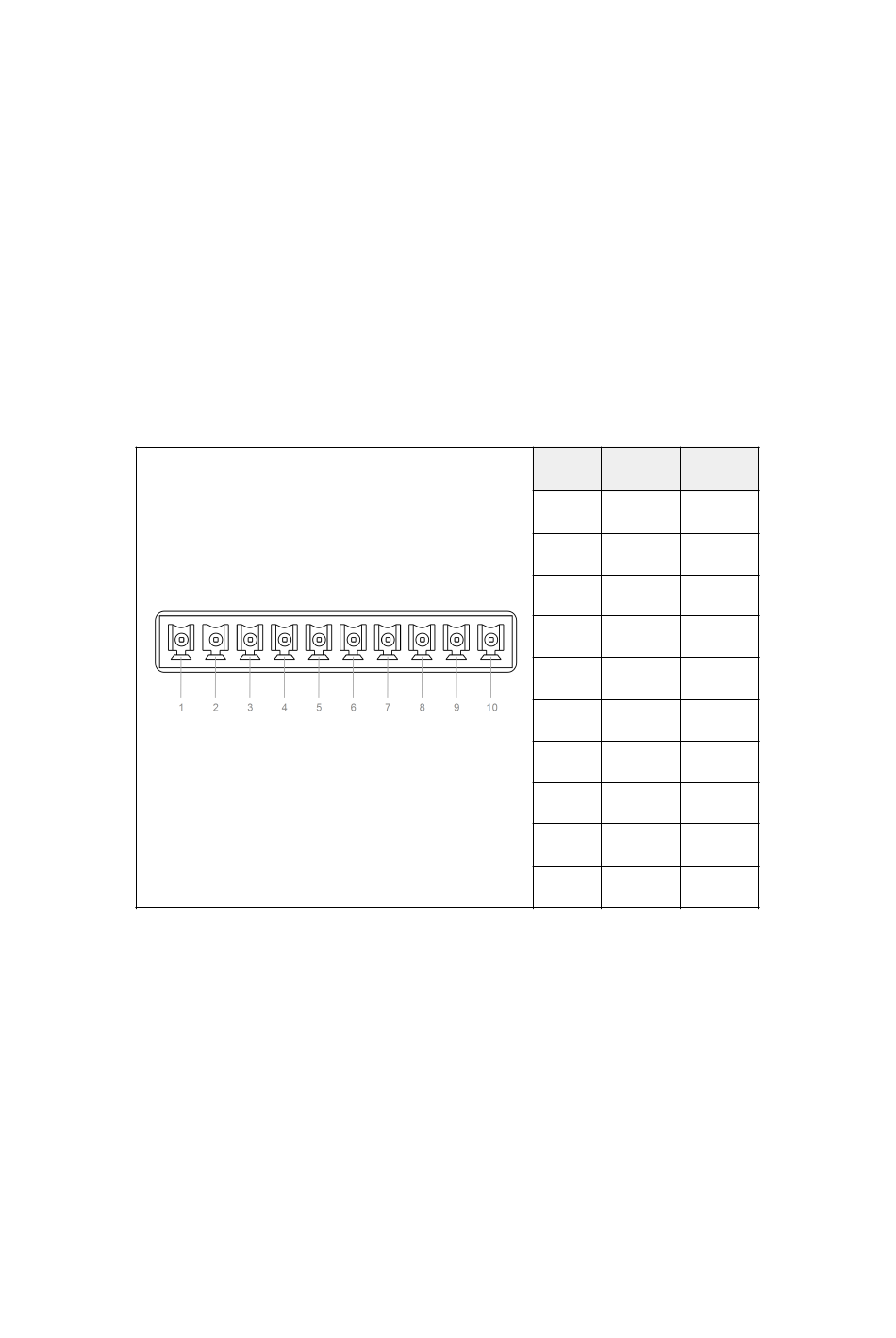

DI terminal pinout
Pin DI 1 DI 2
1 VCC VCC
2 DI0 DI8
3 DI1 DI9
4 DI2 DI10
5 DI3 DI11
6 DI4 DI12
7 DI5 DI13
8 DI6 DI14
9 DI7 DI15
10 GND GND
