3. Installation with brackets
A recommended example of installation when using the brackets is shown below. Ask a technician or
your retailer for the installation procedure when not using the brackets.

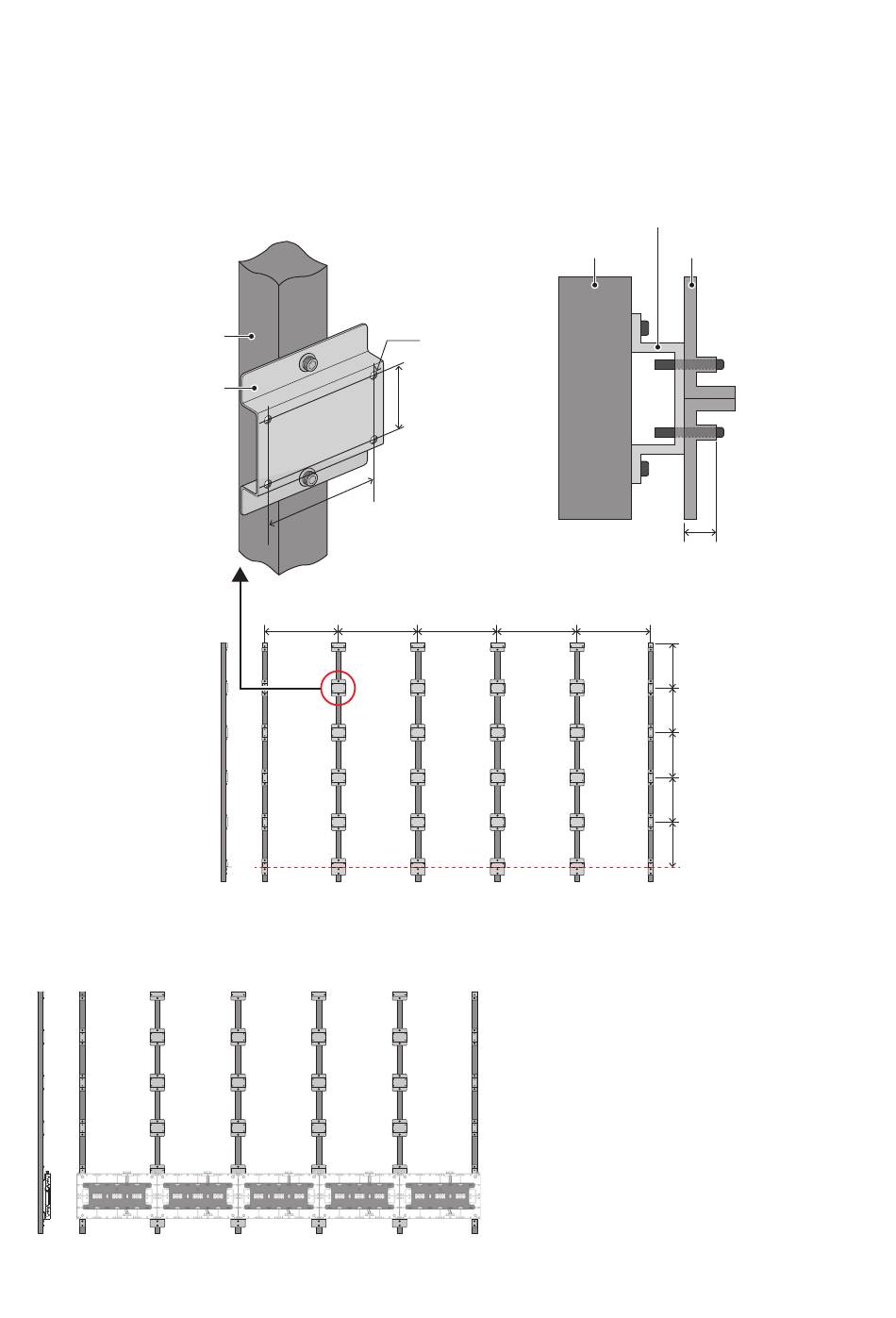

Install the brackets to the frame as shown in the figure below.
Use screws with a length adapted to the cabinet thickness (30 mm). Use also brackets with a
sufficient thickness to hold the screws.
Frame
Bracket
Install the LED cabinets starting from the bottom row.
First, secure temporarily the cabinets to the bracket using screws.
4-M6
88 mm
48 mm
Installation example
564 mm
608 mm
608 mm
Adjust the horizontality of the lowest row.
English - 11
Bracket
Frame
30 mm
608 mm
564 mm
Cabinet
342 mm
342 mm
342 mm
342 mm
342 mm
