Led module
Table of Contents
Connect the power cord and the LAN cable from the opening at the back of the power bar.

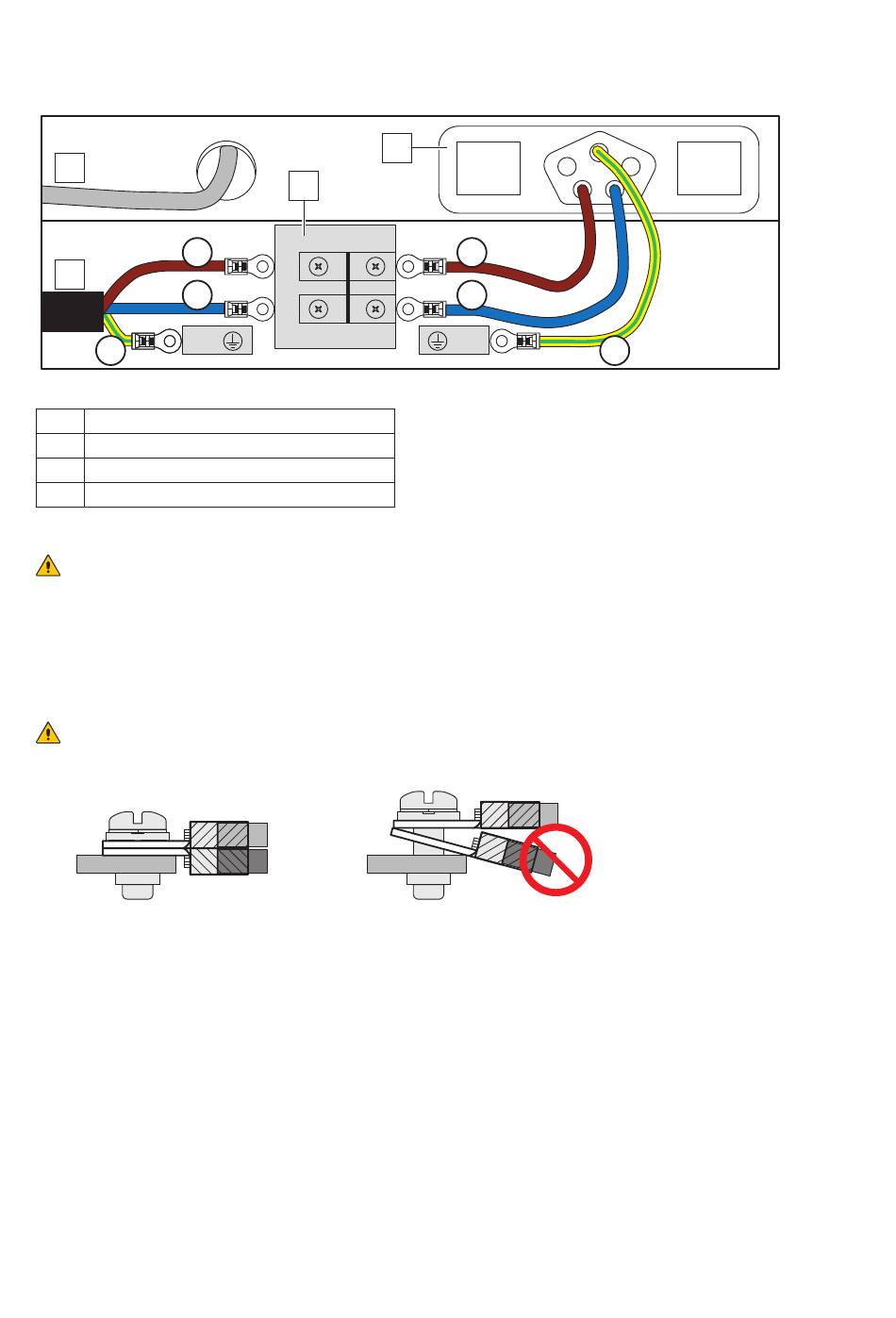

How to connect the power cord
D
L
A
N
PE
A
External power input
B
Terminal in Power bar
C
Power supply socket in Power bar
D
Data cable
WARNING
Pay attention to the wire colors of the power cord when connecting the cord. If the cables are not connected
correctly, it may lead to a fire or an electrical shock.
Blue (N)
Brown (L)
Yellow green (Ground)
CAUTION:
When attaching two cables with one screw, place the ring terminals of the cables back to back.
OK
C
B
N
NG
English - 25
L
PE
