5. Wiring

(1) Maximum number of signal connections
The maximum number of connections per LAN cable is shown below.
Product name
LED-FC009i
LED-FC012i
LED-FC015i
CAUTION
The maximum number of connections may differ depending on the connected LED controller. Therefore,
check the specifications of the LED controller you are using.
Ask a technician or your retailer for more details.
(2) Maximum number of power connections
CAUTION
Exceeding the maximum capacity may generate smoke or cause a fire.
Check the voltage used and do not exceed the connection limits shown below.
Product name
LED-FC009i
LED-FC012i
LED-FC015i

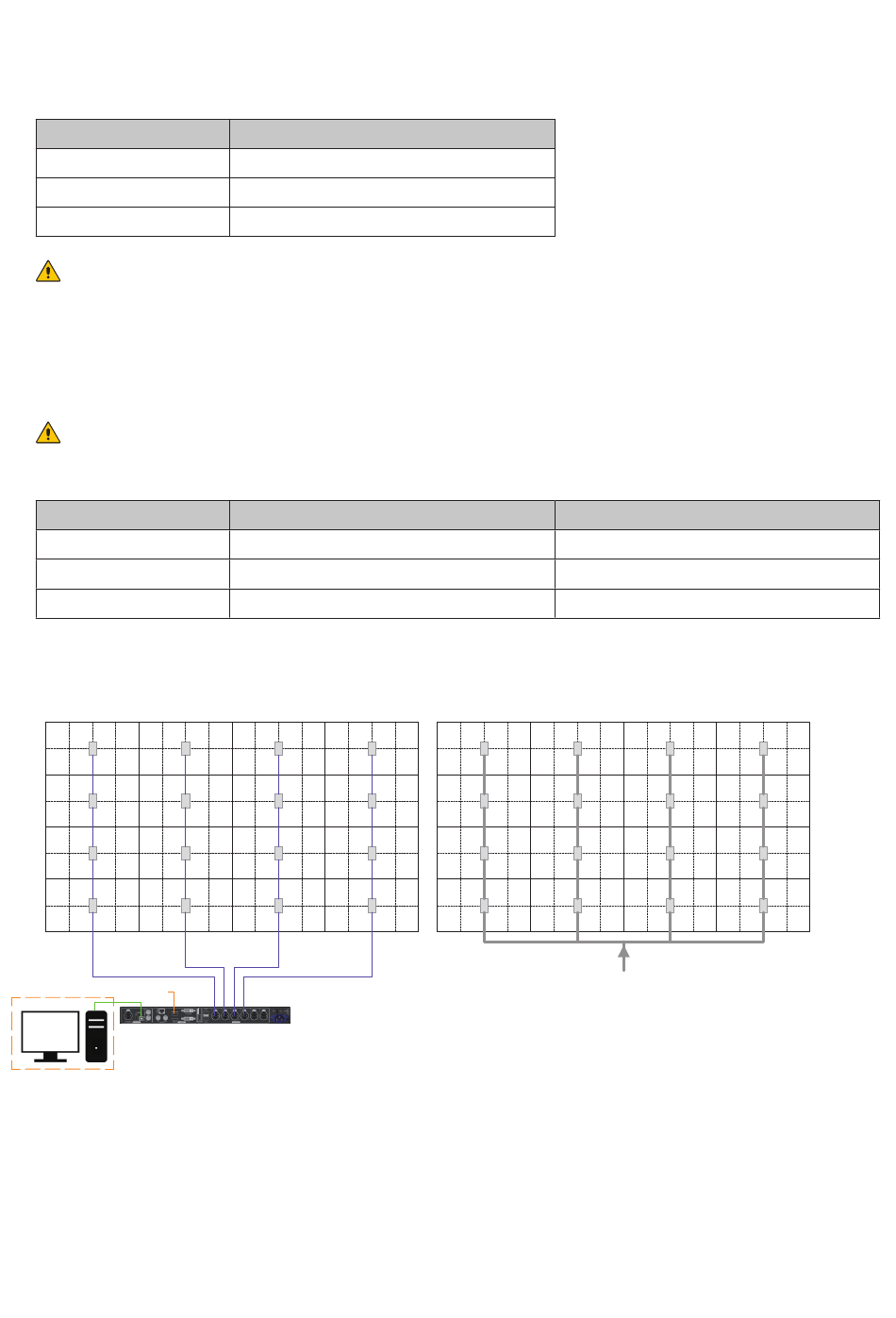

(3) Connection when using a wall-mount frame
4 x 4 frame set (LED-FC012i)
HDMI 1
Control PC
Maximum number of connections
2 modules
5 modules
7 modules
100 - 120 V AC
20 modules
20 modules
20 modules
LED Controller Main
*: This connection is an example of connection when using the maximum capacity.
Please check the capacity of the switchboard to be connected.
English - 30
200 - 240 V AC
40 modules
40 modules
40 modules
100-120V/Max 20A*
or
200-240V/Max 20A*
