Led module
Table of Contents
[Configuration example]

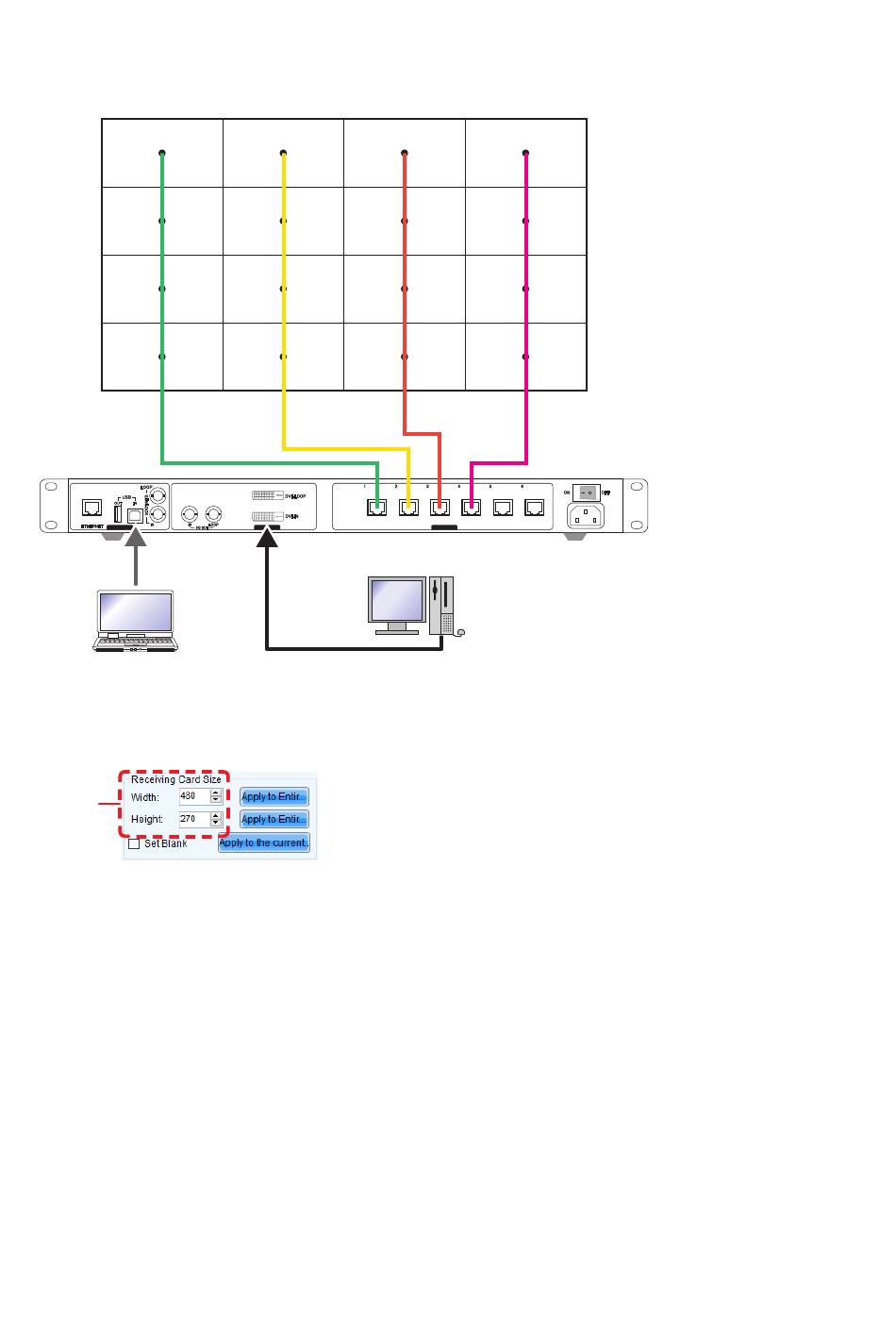

The setting values are given for the following example where 16 LED-E012i modules (pixel pitch of 1.25 mm)
are installed in a 4 (columns) x 4 (rows) configuration.
CONTROL
INPUT
OUTPUT
(1) With a pixel pitch of 1.25 mm, enter Width=480 and Height=270 under "Receiver Card Size" (g).
Do not use the buttons located next to the values.
(g)
English - 40
