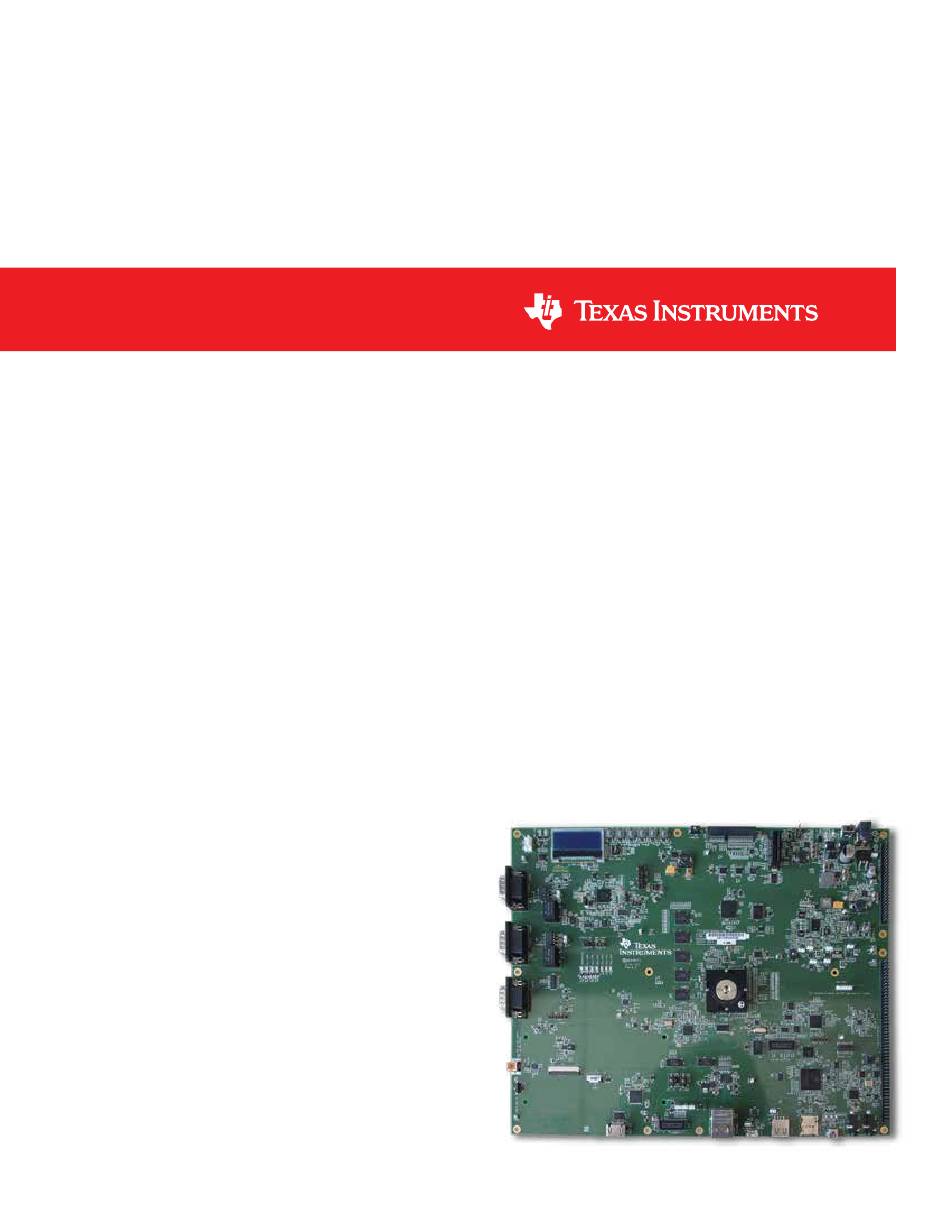

Texas Instruments K2G Series Quick Start Manual

K2Gx High Secure (HS)
Evaluation Module (EVMK2GXS)
Quick Start Guide

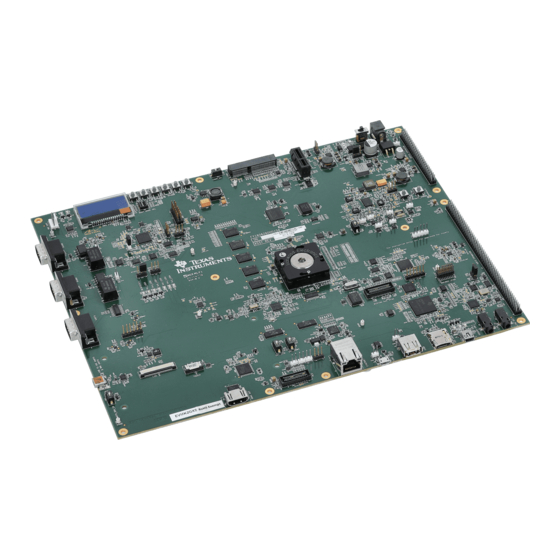

Welcome to the K2G High Secure (HS) Evaluation Module (EVM) Quick Start Guide. This guide is designed to
help you through the initial setup of the EVMK2GXS. The K2G HS EVM contains the following:
Hardware
•.
– K2G KeyStone™-based SoC X66AK2G12
with ARM Cortex
® ®
DSP at 1 GHz
– 2-GByte DDR3L with ECC
– 2-Gbit NAND Flash
– 128-Mbit SPI NOR Flash
– 512-Mbit QSPI
– 128-kByte I C EEPROM
2
– 16-GB eMMC
– Micro-SD-card slot
– Gigabit Ethernet
– PCIe card slot
– HDMI transmitter
– Audio codec AIC3106
– COM8 connector
– DCAN and MLB connectors
– USB host and USB dual-role
– Audio expansion and serial expansion headers
– Board Management Controller (BMC) for board
management features like system status and
boot mode control
– On-board XDS200 emulator and MIPI 60-pin
connector for external emulator
– RS-232 DB9 connector
– Socket to allow replacement of SoC
-A15 at 1 GHz and C66x
• Printed document
– K2G HS EVM Quick Start Guide (this document)
• Miscellaneous
– USB Mini B to A plug type cable
– USB Micro B to A plug type cable
– USB Micro B to A socket type cable
– Ethernet cable
– Female-to-female DB9 serial RS-232 cable
– µSD card 32 GB, memory card reader and
µSD-to-SD adapter
– Connection for LCD display with capacitive
touch (display is sold separately)
– Hex wrench for access to socket
