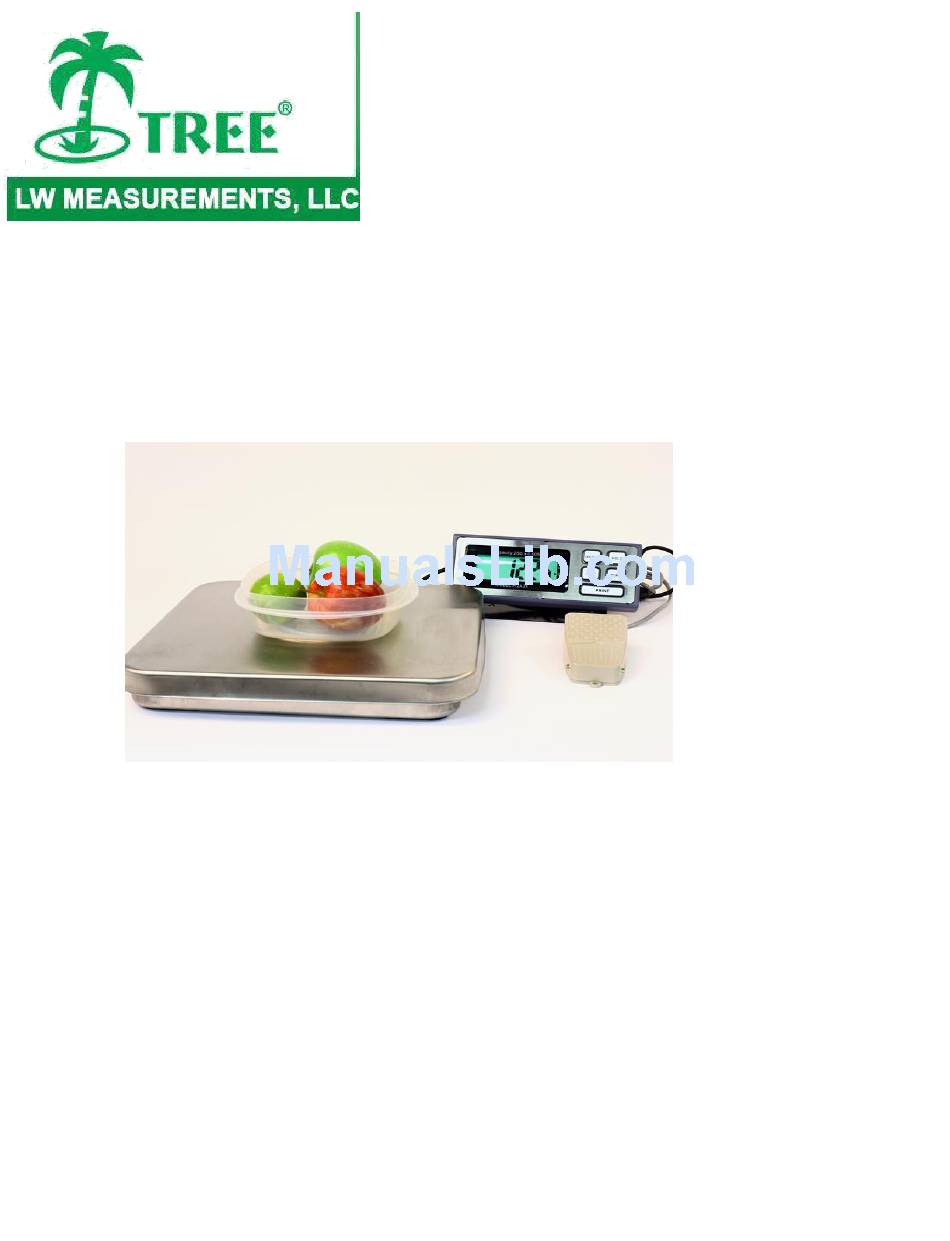

- Page 1 Professional Weighing Equipment PIZA Series Bench Weighing Scale PIZA 12 PIZA 25 Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity Getting Started Delivery Assembly & Installation Indicator Description Function Settings Hold Function RS232 Calibration Maintenance & Service Transportation & Storage Warranty Rev 2, 07.25.2106... -
Page 3: Declaration Of Conformity
UK (Europe) model PIZA 12 PIZA 25 Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Signature: Boon Lim, R & D Manager Date: 14. 11. 2012 LW Measurements LLC, 620 Carlson Court, Rohnert Park, CA 94928 Rev 2, 07.25.2106... -
Page 4: Customer Service
LW Measurements LLC 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com Rev 2, 07.25.2106... -
Page 5: Introduction
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work. -
Page 6: Safety
Safety Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 7: Weight Scale

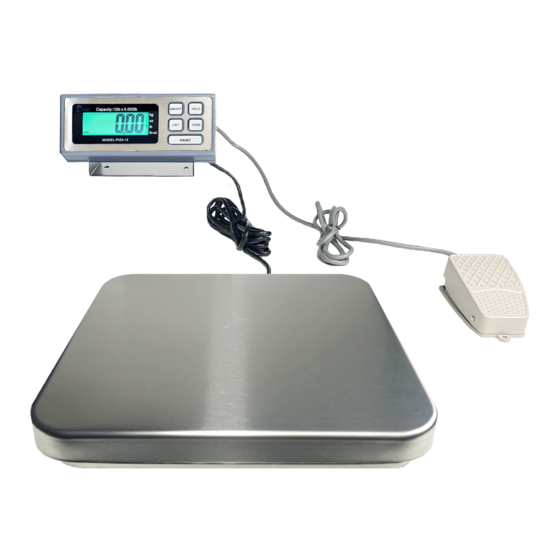

Weight Scale Construction & Functions The weighing scale consists of the following parts; Weight scale body (1) The scale-pan (2) Foot switch (3) Indicator (4) The adapters (5) Operating manual Figure; your scale Rev 2, 07.25.2106... -
Page 8: Functions
Functions The PIZA Series are high-quality electronic precision weighing scales with counting function and the following specifications Model number Capacity Graduation Platter Size PIZA 12 12 lb 0.002lb 12.2 x 12.5 in 320 x 310 mm PIZA 25 25 lb 0.005lb... -
Page 9: Features
Features Auto shut off (selectable) Auto zero tracking Large LCD Large weighing platter AC Power Beeper Foot switch Auto calibration (AnyCal Software) Auto backlight (selectable) ... -
Page 10: Application & Conformity
Application & Conformity The Following are instructions of how to correctly use the weight scale: The weighing scale may only be used for the weighing of solid-materials and of liquids filled into secure containers. The maximum capacity load of the weighing scale must never be exceeded, otherwise the weighing scale may be damaged. -
Page 11: Getting Started
Getting started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 12: Assembly & Installation
Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. ... -
Page 13: Indicator Description
Indicator Descriptions ON/OFF HOLD UNIT ZERO PRINT Display 1. ON/OFF: turn the scale power on/off. 2. HOLD: Press this key to store weighing value. 3. UNIT: Select weighing units:kg/lb/oz/lb:oz 4. ZERO: (for TARE) This key is “Zero” feature if load is below 10% of full capacity or a negative value, and is tare function between 10 % to full capacity. -
Page 14: Function Settings
Function Settings Please see our web-site at http://lwmeasurements.com for practical demonstrations of application usage. Settings Press and hold HOLD key then press ON/OFF key to turn on the scale, the display will show A-ON or A-OFF, Press ZERO key to select on or off (ON means auto power off function activate, OFF means auto power off function inactivate).... -
Page 15: Hold Function
HOLD FUNCTION Place the item on the scale platter. Wait for the stable weight to be displayed. Press the HOLD key. The “ ̥ “ hold indicator will turn on. Remove the item from scale platter, the item’s weight reading will remain on the ... -
Page 16: Rs232
RS232 Data interface Connector: DB9 BALANCE Transmissions Settings Mode: Simplex Asynchronous Serial Baud Rate: 9600 Data Bit: 8 Parity Bit: None Stop Bit: 1 Data Format: ASCII 3. Transmission Information Format： 20 Byte ，blank=20H 4~13 14~18 ‘W: ’ DATA UNIT Start of Data Transmission=57H+3AH Polarity ‘+’... -
Page 17: Calibration
Calibration Using an External Calibration Weight Calibration is done at the time it is manufactured. Do not re-calibrate unless the scale is not weighing accurately. Press and hold ZERO key then press ON/OFF, the display will show “CAPU=”, press HOLD key twice, the key display will show CALU=, press UNIT key select calibration unit kg or lb, it will have a small triangle on the right to indicate kg or lb, press HOLD key to confirm the selection.... -
Page 18: Maintenance & Service
Maintenance & Service The weighing scale is a precision instrument, it must be treated carefully and cleaned regularly For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. -
Page 19: Warranty
Our warranty does not cover misuse or neglect including but not limited to battery or water damage, overloading, and chewed or cut wires. If the product is found to have been misused or damaged by the customer, LW measurements is not responsible for the cost of return. - Page 20 Rev 2, 07.25.2106...
