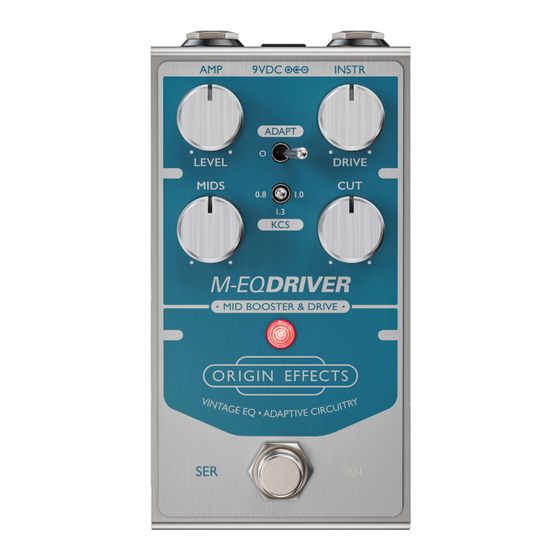

Origin Effects M-EQ DRIVER Owner's Manual

Mid booster & drive
Hide thumbs Also See for M-EQ DRIVER:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-EQ DRIVER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Origin Effects M-EQ DRIVER

Summary of Contents for Origin Effects M-EQ DRIVER

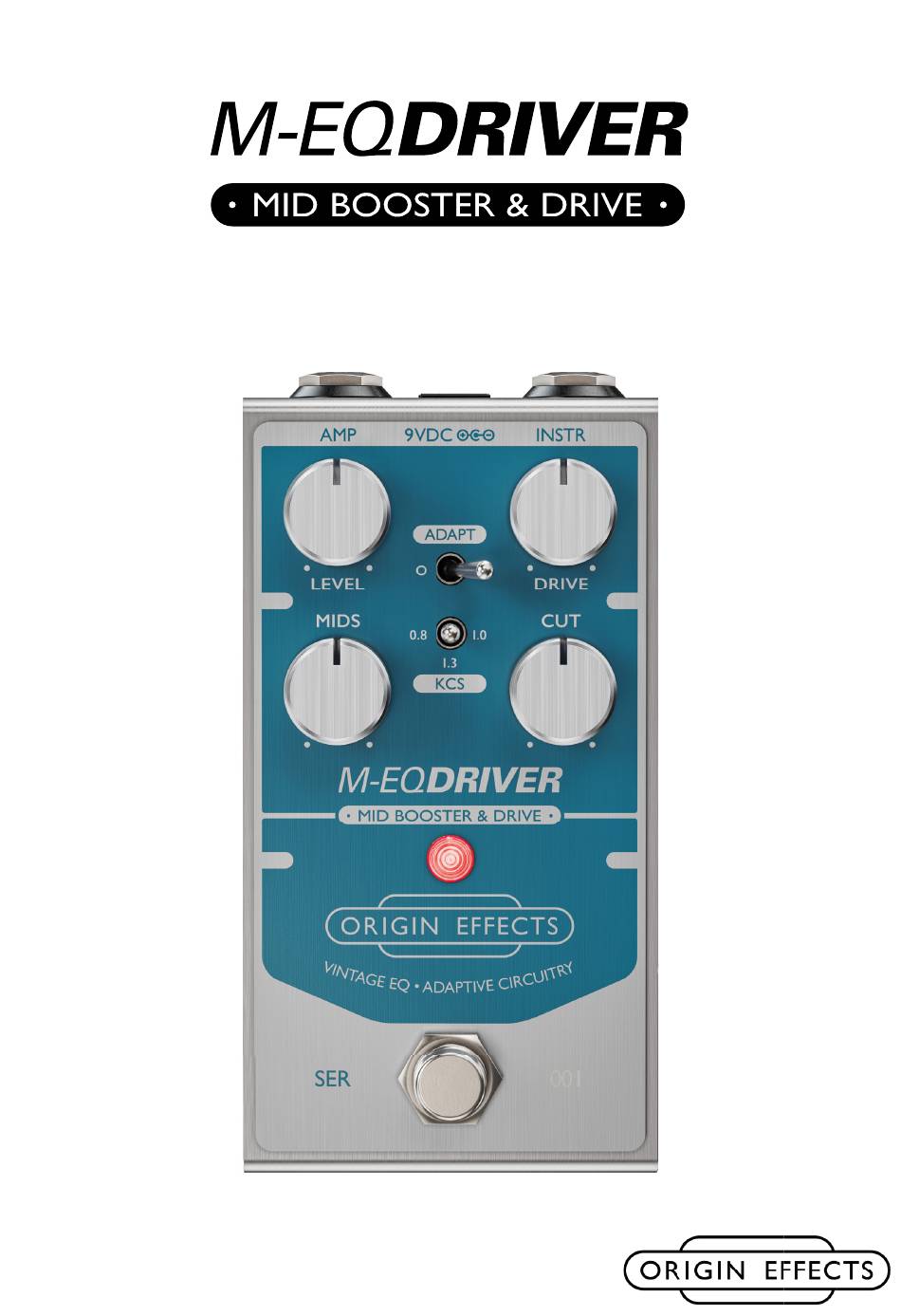

  • Page 1 OWNER’S MANUAL Version 1.0...
  • Page 2 Origin Effects Limited reserves the right to change the features and specifications described herein without notice or obligation. Origin Effects Limited cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.

  • Page 3: Table Of Contents

    Introducing the M-EQ Driver ........

  • Page 4: Introducing The M-Eq Driver

    To make sure you’re emphasising just the right part of your signal, the M-EQ DRIVER lets you choose be- tween three different mid boost frequencies and, when pushed harder, can elicit a range of saturation from a classic “mid-hump”...

  • Page 5: Controls

    KCS SWITCH: Selects between three mid boost frequencies - 0.8, 1.0 or 1.3 Kilocycles per second (the old name for Kilohertz). The choice of different frequencies allows the M-EQ DRIVER to accurately boost the desired part of a guitar’s signal, which can vary with different instruments. This can help to fatten up single coil pickups, add presence to darker guitars or create over-the-top, mid-rich drive tones.

  • Page 6: Sample Settings

    Origin Effects M-EQ DRIVER Sample Settings AMP DISTORTION TRADITIONAL DRIVE The push-pull output stage is capable of some This classic setting pairs responsive, vintage very amp-like drive sounds. With plenty of high overdrive with a moderate mid boost at 1.0 end, a presence boost at 1.3 KCS and extra...

  • Page 7: Appendix A: Physical Specification

    Origin Effects M-EQ DRIVER Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value 1M Ω Input impedance 1k Ω...

  • Page 8: Appendix D: Safety Notices

    (including amplifi ers) that produce heat. Refer all servicing to qualifi ed service personnel. When using an external power supply, use only attachments/accessories specifi ed by Origin Effects. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

  • Page 9: Appendix E: Warranty

    Appendix E: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
