- Page 1 OWNER’S MANUAL Version 3.1...
- Page 2 ORIGIN EFFECTS is a trademark of Origin E ects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States, China and United Kingdom.
-
Page 3: Table Of Contents
Introducing the M-EQ Driver ........ -
Page 4: Safety Notices
M-EQ Driver Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development. They are therefore subject to change. Please refer to the latest version of the docu- mentation, which is available on our website https://origine ects.com/manuals/... -
Page 5: Safety Instructions
M-EQ Driver Safety Instructions: Intended use: This device is intended for use as e ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage. -
Page 6: Introducing The M-Eq Driver

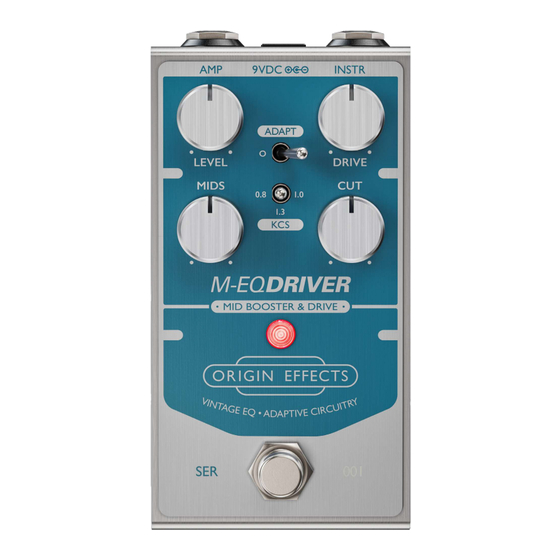

To make sure you’re emphasising just the right part of your signal, the M-EQ DRIVER lets you choose between three di erent mid boost frequencies and, when pushed harder, can elicit a range of saturation from a classic “mid-hump”... -
Page 7: Connecting The M-Eq Driver
M-EQ Driver Connecting the M-EQ DRIVER 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 80mA). NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >80mA power supply with 2.1mm centre-negative barrel connector. - Page 8 KCS SWITCH: Selects between three mid boost frequencies - 0.8, 1.0 or 1.3 Kilocycles per second (the old name for Kilohertz). The choice of di erent frequencies allows the M-EQ DRIVER to accurately boost the desired part of a guitar’s signal, which can vary with di erent instruments. This can help to fatten up sin- gle coil pickups, add presence to darker guitars or create over-the-top, mid-rich drive tones.
-
Page 9: Sample Settings
M-EQ Driver Sample Settings AMP DISTORTION TRADITIONAL DRIVE The push-pull output stage is capable of some This classic setting pairs responsive, vintage over- very amp-like drive sounds. With plenty of high drive with a moderate mid boost at 1.0 KCS. Dial end, a presence boost at 1.3 KCS and extra... -
Page 10: Appendix A: Physical Specification
M-EQ Driver Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value 1M Ω Input impedance 1k Ω... -
Page 11: Appendix D: Environmental Information
M-EQ Driver Appendix D: Environmental Information The crossed out wheely bin symbol indicates this product is classified as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin E ects for more information. -
Page 12: Appendix F: Warranty
M-EQ Driver Appendix F: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin E ects dealer or directly from Origin E ects.
