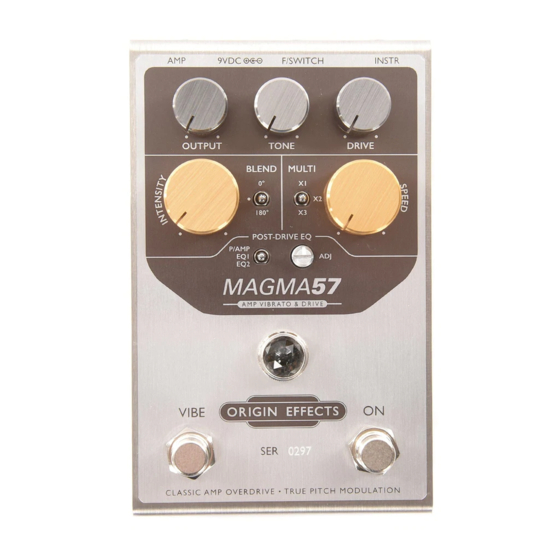

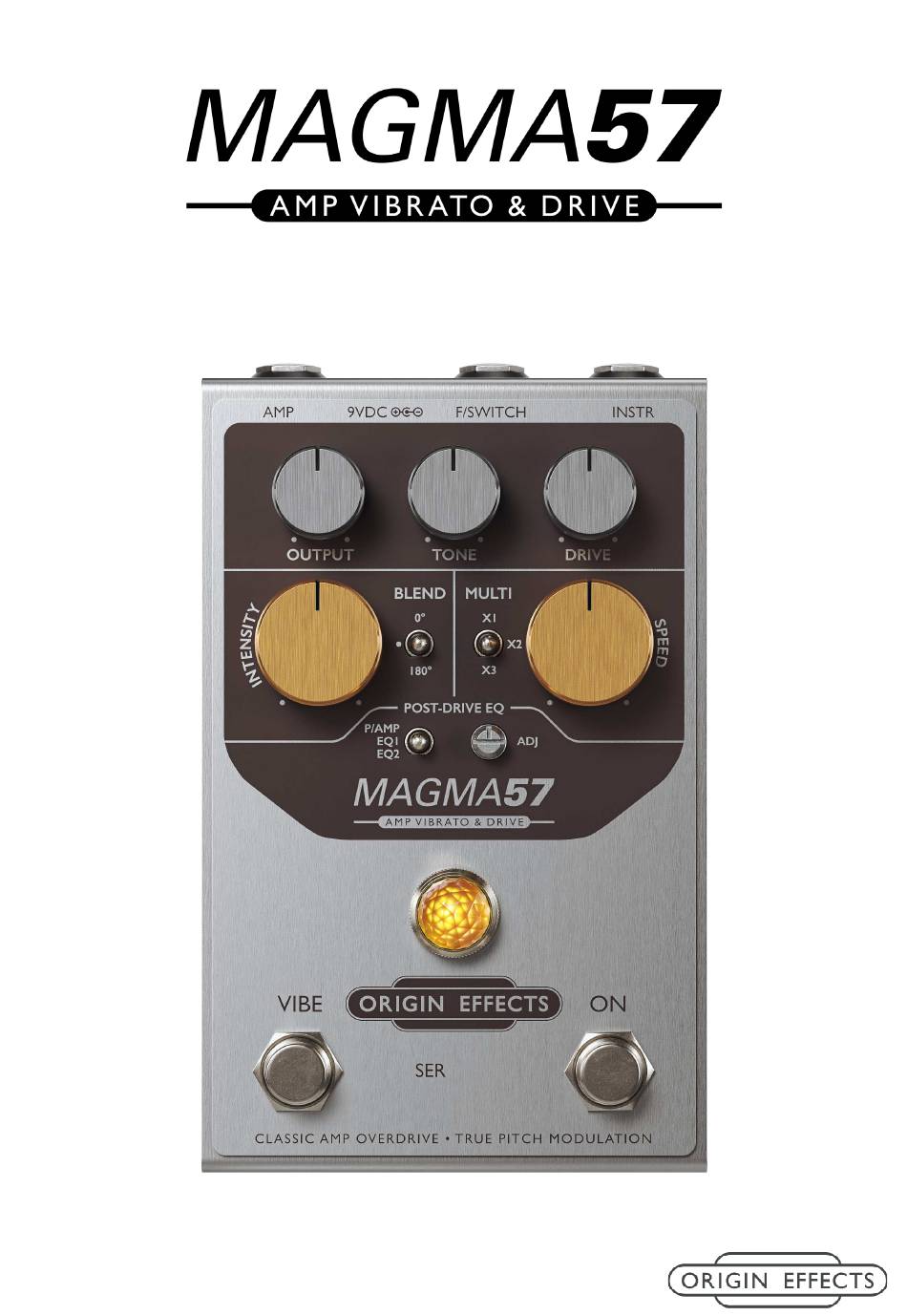

  • Page 1 OWNER’S MANUAL Version 1.3...
  • Page 2 Origin Effects Limited reserves the right to change the features and specifications described herein without notice or obligation. Origin Effects Limited cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.

  • Page 3: Table Of Contents

    Origin Effects MAGMA57 Contents Introducing the MAGMA57 ......................... 4 Key features ............................... 4 The MAGMA57’s vibrato effect ........................5 The MAGMA57’s amp circuitry ........................5 Connecting the MAGMA57 ......................... 6 Main controls .............................. 7 POST-DRIVE EQ controls .......................... 9 Example settings ............................11 Appendix A: Physical specification ......................

  • Page 4: Introducing The Magma57

    Finally, the powerful Post-Drive EQ section will after vibrato effect. Inspired by the original make sure that the MAGMA57’s stunning range of Magnatone ® amps, the pedal’s amp circuitry tones sound their best whether it’s plugged into an...

  • Page 5: The Magma57'S Vibrato Effect

    In the MAGMA57, the 0° (in-phase) setting on the Blend switch is almost identical to the ‘Chorus’ mode on the original Uni-Vibe, a pedal that works on the same vibrato circuit and was most likely heavily influence by its design.

  • Page 6: Connecting The Magma57

    (e.g. PA speakers, studio monitors, headphones or direct recording), we strongly recommend using a speaker simulator after the MAGMA57. 9VDC: Connect a 9V DC 2.1mm centre-negative mains power adaptor that can supply at least 100mA.

  • Page 7: Main Controls

    TONE: Turn the TONE knob clockwise for a brighter sound. Turn counter-clockwise to tame highs. The MAGMA57’s tone control reflects the unusual design of the Magnatone ® Model 213 Troubadour, which featured a partially passive, partially active tone control.
  • Page 8 Origin Effects MAGMA57 www.origineffects.com Main controls (continued) SPEED: Turn clockwise to increase the rate of the modulation effect. The range of the SPEED control is set by the three-position MULTI switch. MULTI: The MULTI switch applies a preset multiplier to the speed of the modulation effect, whether it is set by the pedal’s SPEED knob or by an external tap tempo footswitch.

  • Page 9: Post-Drive Eq Controls

    The POST-DRIVE EQ ensures compatibility with a wide range of amplifiers. Instead of altering your amp or its tone controls to suit the MAGMA57, set your amp for the desired clean sound then use the EQ controls to adjust the pedal’s output accordingly.
  • Page 10 POST-DRIVE EQ controls (continued) Use the tables below to help you set up the MAGMA57 for the first time with a new guitar amplifier or flat-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the POST-DRIVE EQ controls and move on to having fun dialling in your ideal tone with the main controls.

  • Page 11: Example Settings

    Origin Effects MAGMA57 www.origineffects.com Example settings MAGMA SOUND WOODSTOCK VIBES amplifiers Inspired by sought-after Magnatone ® Experience psychedelic overdrive that’s perfect from the 1950s, this setting combines edge-of- for soaring solos. Switch the BLEND to 0° for breakup amp tone with classic pitch-modulating instant ‘60s Uni-Vibe sounds, and use a tap tempo...

  • Page 12: Appendix A: Physical Specification

    Origin Effects MAGMA57 www.origineffects.com Appendix A: Physical specification Measurement Unboxed Boxed Weight 866g (30.5oz) 1000g (35.2oz) Length 147mm (5.7”) 160mm (6.2”) Depth 93mm (3.6”) 115mm (4.5”) Height 60mm (2.3”) 95mm (3.7”) Appendix B: Performance specification Measurement Value 1M Ω Input impedance 1k Ω...

  • Page 13: Appendix D: Safety Notices

    (including amplifiers) that produce heat. Refer all servicing to qualified service personnel. No user serviceable parts inside. When using an external power supply, use only attachments/accessories specified by Origin Effects. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
  • Page 14 Appendix E: warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
