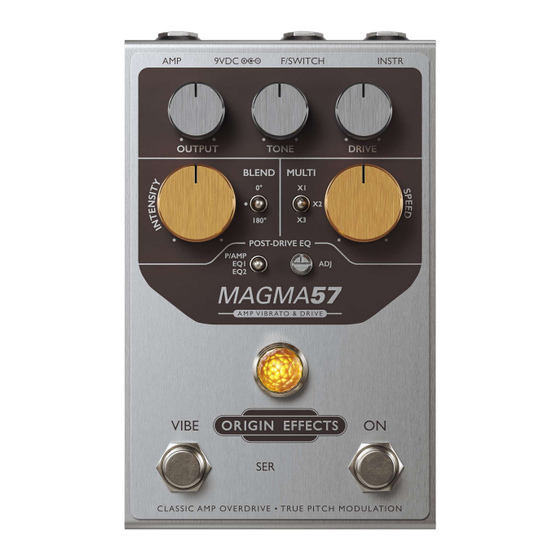

Origin Effects MAGMA57 Owner's Manual

Amp vibrato & drive
Hide thumbs Also See for MAGMA57:

Advertisement

Quick Links

Download this manual

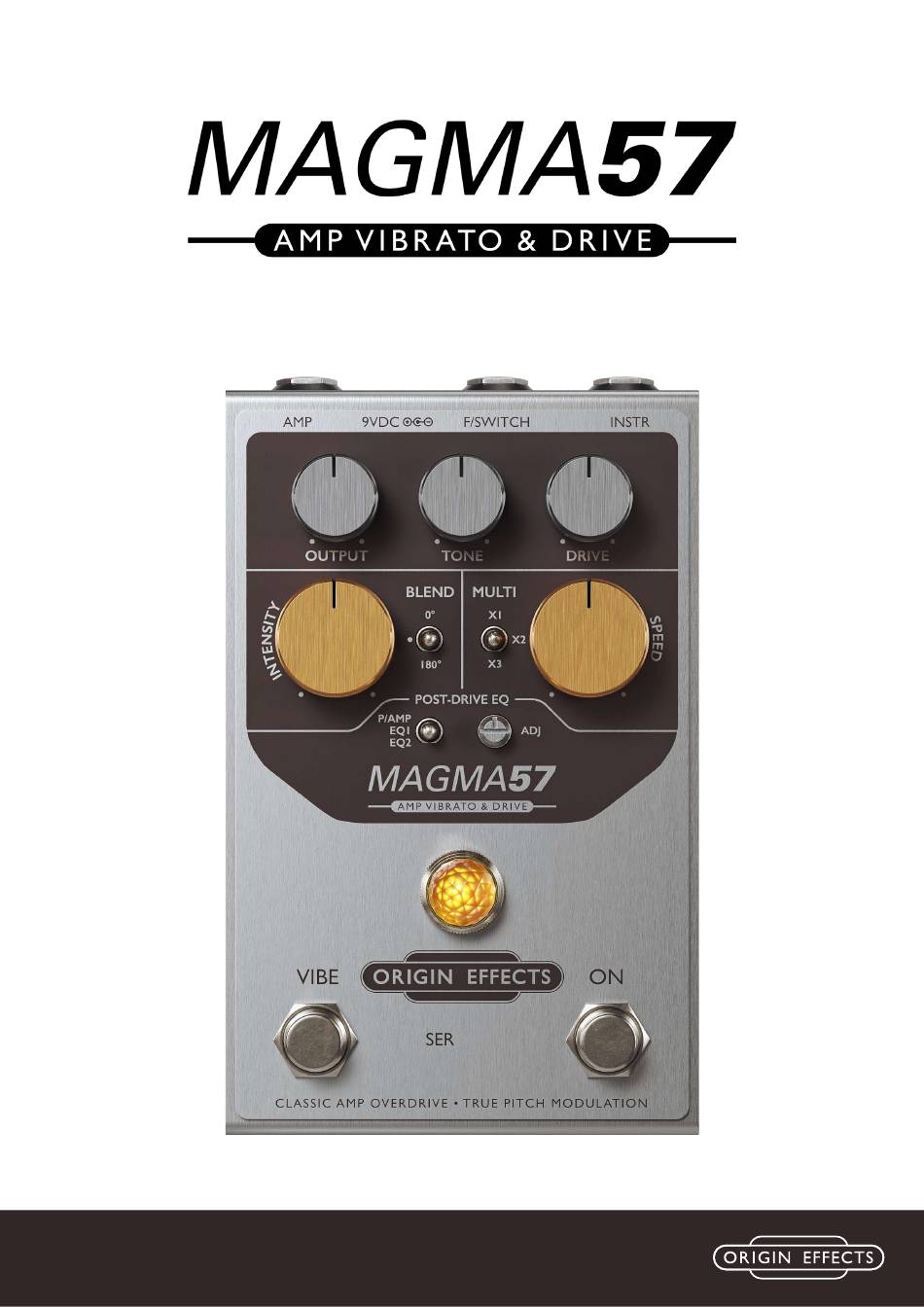

OWNER'S MANUAL
Version 2.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAGMA57 and is the answer not in the manual?

Questions and answers

Related Manuals for Origin Effects MAGMA57

Summary of Contents for Origin Effects MAGMA57

  • Page 1 OWNER’S MANUAL Version 2.1...
  • Page 2 United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States, China and United Kingdom.All other product names and trademarks are the property of their respective owners and are hereby acknowledged.

  • Page 3: Table Of Contents

    Introducing the MAGMA57 ........

  • Page 4: Safety Notices

    MAGMA57 Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development. They are therefore subject to change. Please refer to the latest version of the docu- mentation, which is available on our website https://origine ects.com/manuals/...

  • Page 5: Safety Instructions

    MAGMA57 Safety Instructions: Intended use: This device is intended for use as e ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.

  • Page 6: Introducing The Magma57

    Finally, the powerful Post-Drive EQ section will after vibrato effect. Inspired by the original make sure that the MAGMA57’s stunning range of ® Magnatone amps, the pedal’s amp circuitry tones sound their best whether it’s plugged into an...

  • Page 7: The Magma57'S Vibrato E Ect

    In the MAGMA57, the 0° (in-phase) setting on the Blend switch is almost identical to the ‘Chorus’ mode on the original Uni-Vibe, a pedal that works on the same vibrato circuit and was most likely heavily influence by its design.

  • Page 8: Connector Pin

    (e.g. PA speakers, studio monitors, headphones or direct recording), we strongly recommend using a speaker simulator after the MAGMA57. 9VDC: Connect a 9V DC 2.1mm centre-negative mains power adaptor that can supply at least 100mA.

  • Page 9: Controls

    TONE: Turn the TONE knob clockwise for a brighter sound. Turn counter-clockwise to tame highs. The MAGMA57’s tone control reflects the unusual design of the Magnatone ® Model 213 Troubadour, which featured a partially passive, partially active tone control.
  • Page 10 MAGMA57 Main controls (continued) SPEED: Turn clockwise to increase the rate of the modulation effect. The range of the SPEED control is set by the three-position MULTI switch. MULTI: The MULTI switch applies a preset multiplier to the speed of the modulation effect, whether it is set by the pedal’s SPEED knob or by an external tap tempo footswitch.
  • Page 11 The POST-DRIVE EQ ensures compatibility with a wide range of amplifiers. Instead of altering your amp or its tone controls to suit the MAGMA57, set your amp for the desired clean sound then use the EQ controls to adjust the pedal’s output accordingly.
  • Page 12 POST -DRIVE EQ controls (continued) Use the tables below to help you set up the MAGMA57 for the first time with a new guitar amplifier or flat-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the POST-DRIVE EQ controls and move on to having fun dialling in your ideal tone with the main controls.

  • Page 13: Sample Settings

    MAGMA57 Sample settings ‘57 VIBRATO WOODSTOCK VIBES amplifiers Inspired by sought-after Magnatone ® Experience psychedelic overdrive that’s perfect for soaring solos. Switch the BLEND to 0° for from the 1950s, this setting combines edge-of- breakup amp tone with classic pitch-modulating instant ‘60s Uni-Vibe sounds, and use a tap tempo...

  • Page 14: Appendix A: Physical Specification

    MAGMA57 Appendix A: Physical specification Measurement Unboxed Boxed 866g (30.5oz) 1000g (35.2oz) Weight 147mm (5.7”) 160mm (6.2”) Length 93mm (3.6”) 115mm (4.5”) Depth 60mm (2.3”) 95mm (3.7”) Height Appendix B: Performance specification Measurement Value 1M Ω Input impedance 1k Ω...

  • Page 15: Appendix D: Environmental Information

    MAGMA57 Appendix D: Environmental Information The crossed out wheely bin symbol indicates this product is classified as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin E ects for more information.

  • Page 16: Appendix F: Warranty

    MAGMA57 Appendix F: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin E ects dealer or directly from Origin E ects.
