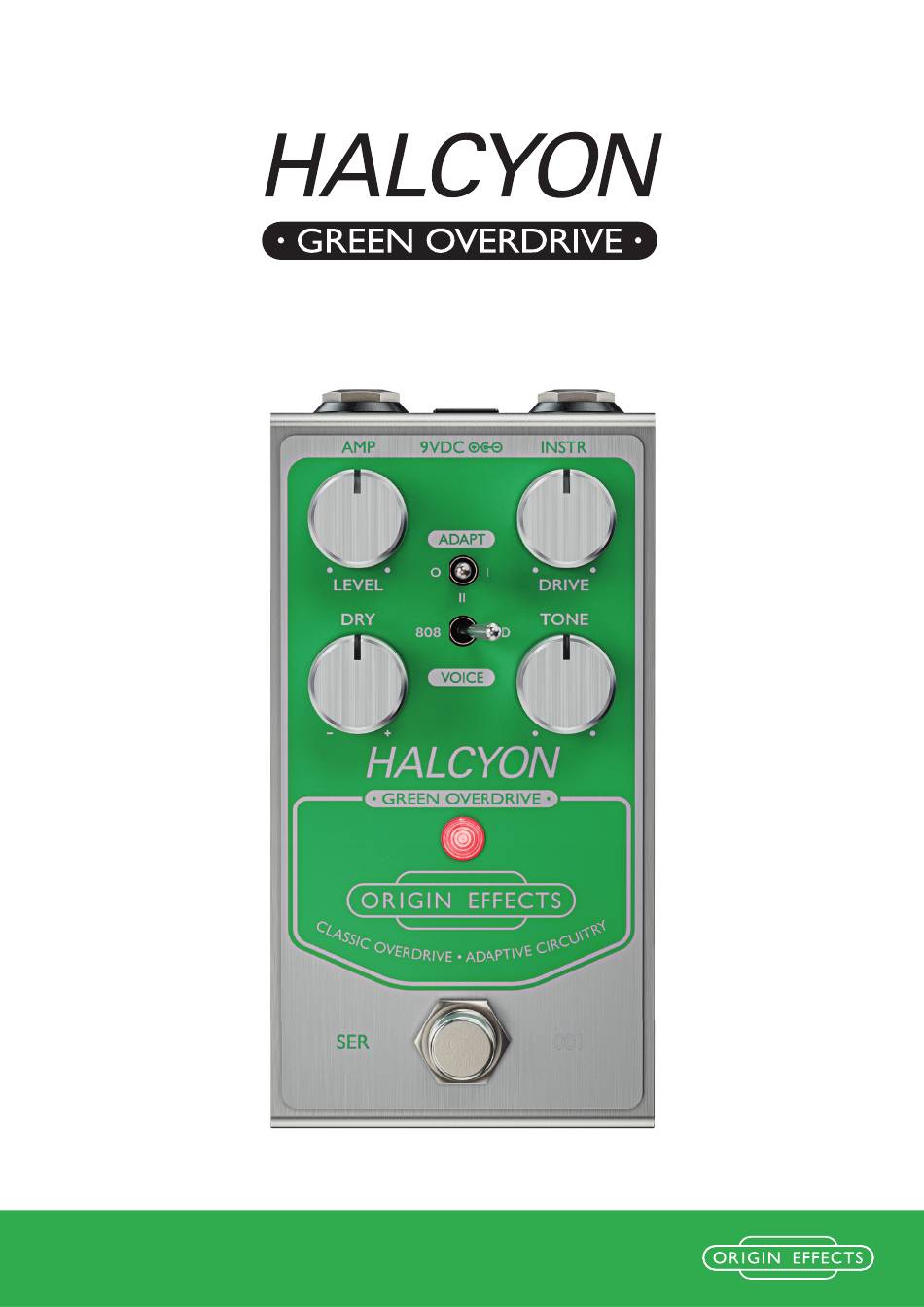

OWNER'S MANUAL
Version 2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Halcyon Green Overdrive and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Origin Effects Halcyon Green Overdrive

Summary of Contents for Origin Effects Halcyon Green Overdrive

  • Page 1 OWNER’S MANUAL Version 2...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin Effects Limited and is a registered trademark in the United States, China and United Kingdom.

  • Page 3: Table Of Contents

    Introducing the Halcyon Green Overdrive ........

  • Page 4: Safety Notices

    Halcyon Green Overdrive Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development.

  • Page 5: Safety Instructions

    Halcyon Green Overdrive Safety Instructions: Intended use: This device is intended for use as eff ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.

  • Page 6: Introducing The Halcyon Green Overdrive

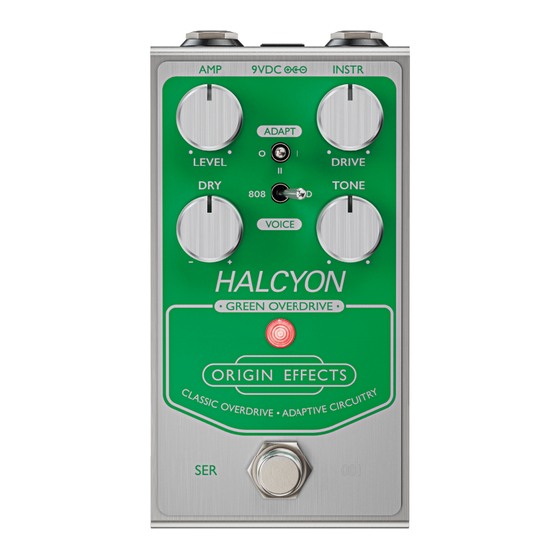

    Introducing the HALCYON GREEN OVERDRIVE The Halcyon Green Overdrive is a classic low-gain drive pedal featuring our proprietary Adaptive circuitry. This unique design allows it to adapt its voicing in response to pick attack and volume changes, making it one of the most dynamic and interactive overdrives out there.

  • Page 7: Connecting The Halcyon Green Overdrive

    Halcyon Green Overdrive Connecting the HALCYON GREEN OVERDRIVE 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 80mA). NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >80mA power supply with 2.1mm centre-negative barrel connector.
  • Page 8 Halcyon Green Overdrive Controls (continued) Tip: To hear the ADAPT switch in action, select Position II, play some licks, then roll down your guitar volume to a clean tone and select Position O. You will hear a big difference between the adaptive and stock...

  • Page 9: Sample Settings

    ROCK BOOST METAL CHUG This boost tone works particularly well with hum- The Halcyon Green Overdrive’s bass roll-off make buckers and British-voiced amps. The MOD setting it perfect for tightening up Metal rhythm tones. helps add presence to darker pickups, while lower...

  • Page 10: Appendix A: Physical Specification

    Halcyon Green Overdrive Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value Input impedance 1M Ω...

  • Page 11: Appendix D: Enviromental Information

    Halcyon Green Overdrive Appendix D: Enviromental information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin Eff ects for more information.

  • Page 12: Appendix F: Warranty

    This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
