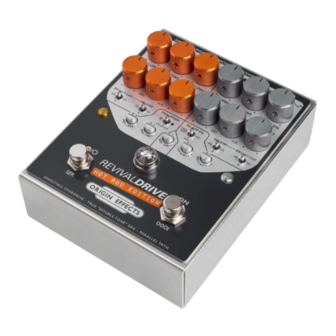

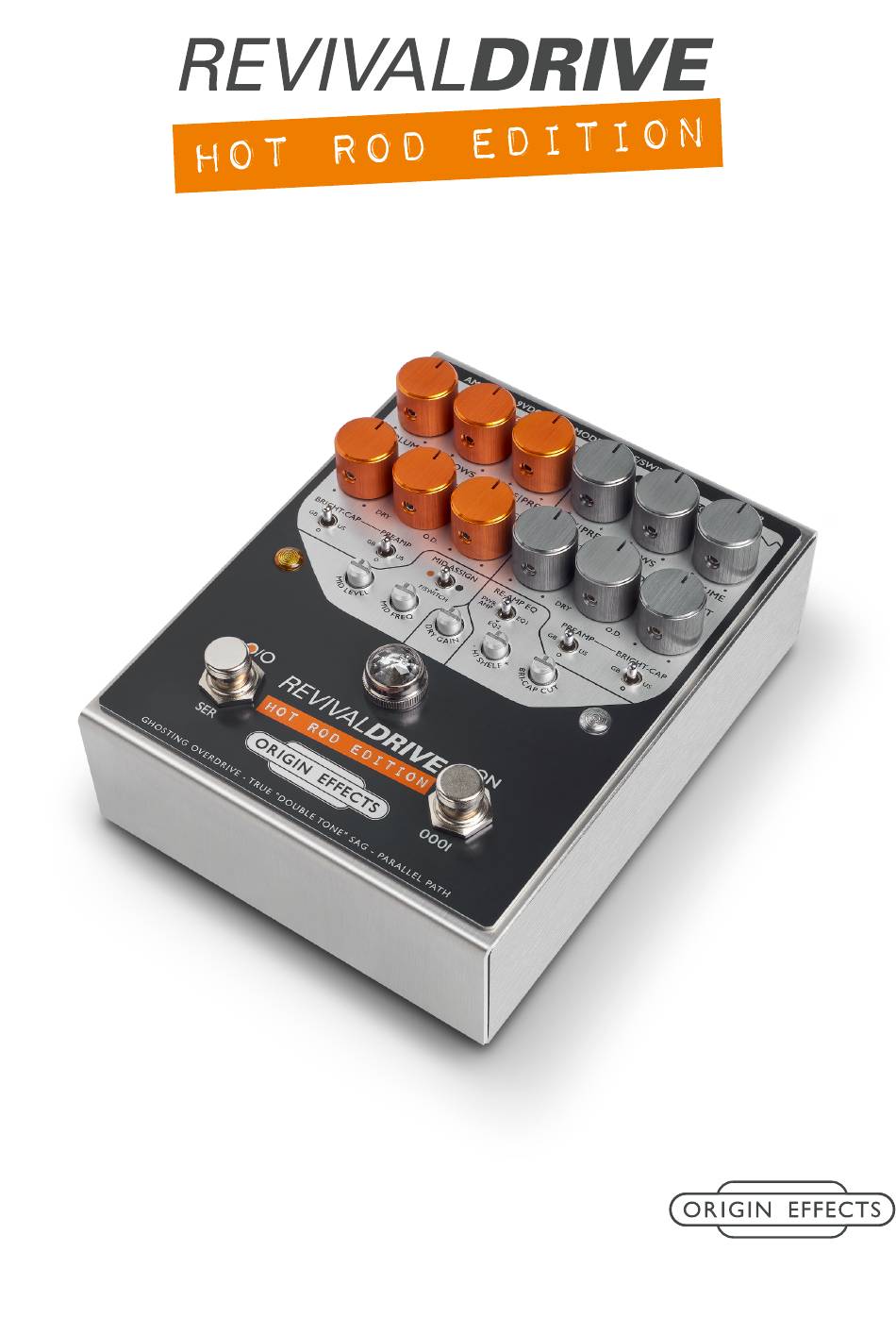

  • Page 1 OWNER’S MANUAL Version 1.0...
  • Page 2 Origin Effects Limited reserves the right to change the features and specifications described herein without notice or obligation. Origin Effects Limited cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.

  • Page 3: Welcome To The Revivaldrive Hot Rod

    RevivalDRIVE Hot Rod is a fairly complex device. We invite you read through this manual so you can gain a full understanding of all it can do. But if you can’t wait, by all means skip ahead to the Sample Settings on page 14 and start playing! Simon Keats Designer and Origin Effects founder...

  • Page 4: Table Of Contents

    About Origin Effects ........

  • Page 5: Connecting The Revivaldrive Hot Rod

    Connecting the RevivalDRIVE Hot Rod Connecting the RevivalDRIVE Hot Rod INSTR input: Connect to your guitar, bass or other instrument. AMP output: Connect to your amp, power amp, mixer or recording interface. 9VDC input: Connect a 9VDC 2.1mm centre-negative mains power supply which can provide at least 120mA.

  • Page 6: Suggested Connection Settings

    Suggested Connection Settings Suggested Connection Settings Plugging into a guitar amp, bass amp or amp modeller RE-AMP EQ: Select EQ1 (for brighter sounding amps) or EQ2 (for darker sounding amps) on the RE-AMP EQ switch. Use the HI SHELF boost/cut control and BRI-CAP CUT filter to adjust for the high- frequency response of your amp.

  • Page 7: Valve & Silicon Rectifier Channel Controls

    Valve & Silicon Rectifier Channel Controls Valve & Silicon Rectifier Channel Controls The RevivalDRIVE Hot Rod features two channels, selectable via footswitch. While the controls are identical, the two channels offer a choice of rectifier styles. Please note: the VALVE RECTIFIER channel can be switched to a second SILICON RECTIFIER channel using the rear-panel MODE DIP switch.
  • Page 8 Valve & Silicon Rectifier Channel Controls MORE/PRES: This control combines two parameters, both related to the effects of negative feedback in the power amp stage. PRES (turn clockwise): The classic “Presence” knob, the PRES control releases the higher frequencies from the effects of negative feedback as you turn it clockwise from the centre position. This has the effect of progressively boosting higher frequencies in vintage Marshall and Trainwreck fashion.

  • Page 9: Mid Boost Controls

    Valve & Silicon Rectifier Channel Controls BRIGHT-CAP: This switch connects a capacitor to the VOLUME control, allowing high frequencies to sidestep any attenuation in exactly the same way as the “Bright” switch found on many Fender amps or using a Marshall’s bright channel. Off (centre position): No capacitor added –...

  • Page 10: Dry Gain Control

    DRY GAIN Control DRY GAIN Control The DRY GAIN trimmer adjusts the level of the DRY signal that is mixed with the O.D. signal using each channel’s BLEND control. Since the pedal’s overdrive circuitry can introduce considerable additional gain, the DRY GAIN control allows you to effectively balance the relative levels of the DRY and O.D.

  • Page 11: Custom Panel Controls: "Revivaldrive Hot Rod Custom

    Custom Panel Controls: “RevivalDRIVE Hot Rod CUSTOM” HI SHELF: A fairly conservatively voiced treble boost/cut control for making small adjustments to the high-frequency component of your tone. In particular, it’s designed to counteract Fender-style treble tone controls. This shelving filter provides up to +/-6dB. Starting from 12 o’clock (no boost or cut), turn counter- clockwise to tame highs if your amp sounds too bright, or turn clockwise to boost highs on a dark-sounding amp.

  • Page 12: Mode Dip Switch

    Mode DIP Switch Mode DIP Switch Located on the rear panel, the MODE DIP switch controls the following settings. 1 2 3 1 DRY/BYPASS DIP SWITCH: This switch is only active when the REAMP switch is set to the PWR AMP position.

  • Page 13: Revival Footswitch

    Revival Footswitch Revival Footswitch Connecting the Revival Footswitch (sold separately) to the F/SWITCH input at the rear of the pedal provides two further functions. MID-ENGAGE: With the pedal’s MID ASSIGN switch set to F/SWITCH, this allows you to apply the adjustable mid boost to whichever channel is currently selected.

  • Page 14: Sample Settings

    Sample Settings Sample Settings Princeton Boogie Valve rectifier channel Inspired by the lead tones of Santana’s modded Fender Princeton, these settings deliver a controlled, mid focused overdrive sound. In the late 60s, Randall Smith was hot rodding Fender Princeton combos for more gain and sustain.
  • Page 15 Sample Settings Sample Settings Continued... Orange Squash Valve rectifier channel Max out the VOLUME control with these settings for pure power amp explosion! A powerful sound reminiscent of a wall of cranked Orange stacks. The sagging power stage in conjunction with the simulated valve rectifier compresses each note and adds harmonic complexity to sustained chords.

  • Page 16: Appendices

    Appendices Appendices Appendix A: physical specification RevivalDRIVE Hot Rod: Unboxed Boxed Weight 1200g 42oz 1450g 51oz Length 160mm 6 5/16” 190mm 7 8/16” Depth 117mm 4 10/16” 180mm 7” Height 59mm 2 5/16” 95mm 3 11/16” RevivalDRIVE Hot Rod CUSTOM: Unboxed Boxed Weight...

  • Page 17: Appendix C: Connector Pin Outs

    (including amplifiers) that produce heat. Refer all servicing to qualified service personnel. No user serviceable parts inside. When using an external power supply, use only attachments/accessories specified by Origin Effects. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

  • Page 18: Appendix E: Warranty

    Appendix E: warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.

  • Page 19: About Origin Effects

    Vox, Focusrite and Trident Audio. Having built bespoke effects for professional musicians and producers for many years, he launched the Origin Effects brand in 2012 to bring his exceptional designs to a wider audience.
