Origin Effects Cali76 Owner's Manual

Stacked compressor
Hide thumbs Also See for Cali76:

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Version 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cali76 and is the answer not in the manual?

Questions and answers

Related Manuals for Origin Effects Cali76

Summary of Contents for Origin Effects Cali76

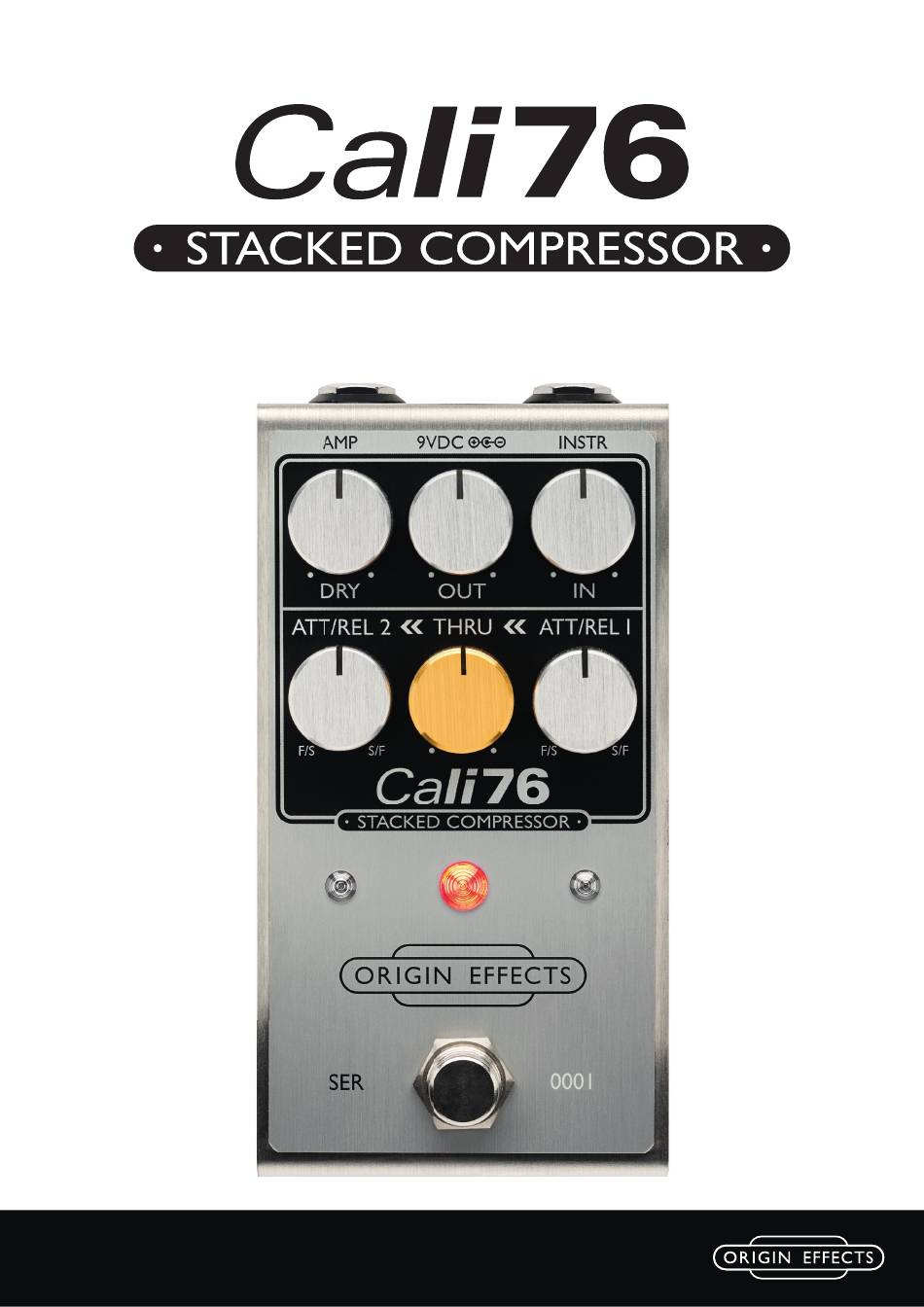

  • Page 1 OWNER’S MANUAL Version 1...
  • Page 2 The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States, United Kingdom and China. CALI76 is a trademark of Origin E ects Limited and is a registered trademark in the United States and China. CALI76 STACKED COMPRESSOR is a trademark of Origin E ects Limited.
  • Page 3 Introducing the Cali76 Stacked Compressor ........
  • Page 4 Cali76 Stacked Compressor Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development.
  • Page 5 Cali76 Stacked Compressor Safety Instructions: Intended use: This device is intended for use as e ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.
  • Page 6 Cali76 Stacked Compressor Introducing the Cali76 Stacked Compressor: The Cali76 Stacked Compressor is a dual-stage compressor pedal, using two compressor circuits cascaded in series for the ultimate compressed guitar tone. Representing the latest evolution of our world-renowned Cali76 circuit, the Cali76 Stacked Compressor gives you super-squashed cleans, singing slide tones, and endlessly sustaining leads without having to reach for an overdrive pedal.
  • Page 7 Cali76 Stacked Compressor Connecting the Cali76 Stacked Compressor: 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 200mA). Voltage is increased internally for additional headroom. NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >200mA power supply with 2.1mm centre-negative barrel connector.
  • Page 8 Cali76 Stacked Compressor Controls (continued): DRY: This control varies the amount of dry, uncompressed signal present at the pedal’s output, mixing the dry signal in parallel with the compressed signal. Adding some uncompressed signal in parallel can restore some natural dynamics and clarity to heavily compressed sounds. Unity gain can be found at approximately 2 o’clock on the DRY knob, while turning this control fully clockwise will boost the signal by 9dB.
  • Page 9 Cali76 Stacked Compressor ON / OFF Operation: Bypass Switch: This switch toggles the pedal on and o . The Cali76 Stacked Compressor uses bu ered bypass and electronic switching for low-noise operation. When powered up, the pedal will automatically default to being switched on.
  • Page 10 Cali76 Stacked Compressor Routing Diagram: The diagram below shows the signal routing within the Cali76 Stacked Compressor.
  • Page 11 Cali76 Stacked Compressor Sample Settings: CLEAN OVERDRIVE STACKED COMPRESSORS This setting gives you all the feel of an overdriven Two compressors in one pedal! Stage 1 is set for a tone without the distortion! Perfect for clean lead slow ATTACK and fast RELEASE, providing a snappy, playing and slide guitar, this endlessly sustaining tone funky tone.
  • Page 12 Cali76 Stacked Compressor Appendix A: Physical Specification Measurement Unboxed Boxed Weight 553g (19.5oz) 661g (23.3oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value 1M Ω Input impedance 1k Ω...
  • Page 13 Cali76 Stacked Compressor Appendix D: Environmental Information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin E ects for more information.
  • Page 14 Cali76 Stacked Compressor Appendix F: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin E ects dealer or directly from Origin E ects.
