  • Page 1 OWNER’S MANUAL Version 2...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin Effects Limited and is a registered trademark in the United States, China and United Kingdom.

  • Page 3: Table Of Contents

    Connecting the RevivalDrive Compact ........

  • Page 4: Safety Notices

    RevivalDrive Compact Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is available on our website https://origineff ects.com/manuals/...

  • Page 5: Safety Instructions

    RevivalDrive Compact Safety Instructions: Intended use: This device is intended for use as eff ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.

  • Page 6: Introducing The Revivaldrive Compact

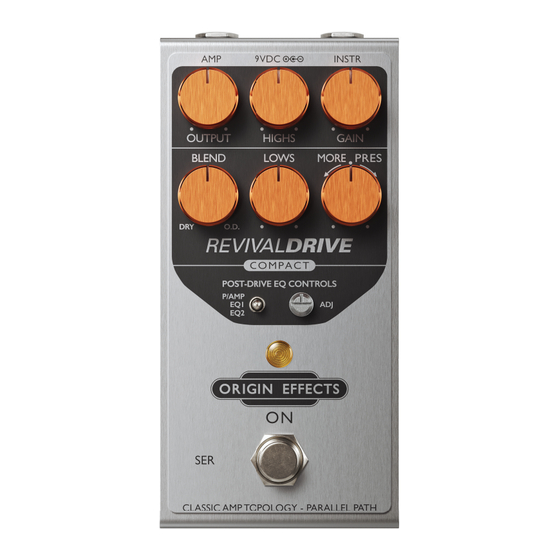

    With the ability to directly shape key amp properties like preamp voicing, break-up characteristics and low-frequency distortion, plus a built-in Blend control to mix in your dry signal, the RevivalDRIVE Compact allows you to quickly dial in a range of legendary amp tones or mix and match different flavours to create your own unique sound.

  • Page 7: About The Revivaldrive Compact

    To this end, the RevivalDRIVE Compact features exactly the same valve amp-style circuit topology but in single-channel format and with newly designed rectifier circuitry voiced midway between a solid-state rectifier and a GZ34 rectifier valve.

  • Page 8: Connecting The Revivaldrive Compact

    Use of an incorrectly rated power supply could result in damage to the pedal and the power supply. Controls OUTPUT: The output control sets the pedal’s overall output level. As it isn’t part of the RevivalDrive Compact’s emulated amp circuitry, the OUTPUT control won’t alter the pedal’s overdrive character. It simply lets you make it louder or quieter.
  • Page 9 RevivalDrive Compact Main controls (continued) Based on the original RevivalDRIVE’s Preamp mode switch, the HIGHs knob provides a continuous range of useful preamp voicings. This ranges from a Marshall-style amp with its tone controls centred (fully counterclockwise, ’0’ mode) to a cranked Plexi Marshall (12 o’clock, ‘GB’ mode) to a cranked Blackface Twin (fully clockwise, ‘US’ mode).
  • Page 10 The POST -DRIVE EQ ensures compatibility with a wide range of amplifiers. Instead of altering your amp or its tone controls to suit the RevivalDrive Compact, set your amp for the desired clean sound then use the EQ controls to adjust the pedal’s output accordingly (see tables on opposite page).
  • Page 11 POST -DRIVE EQ controls (continued) Use the tables below to help you set up the RevivalDrive Compact for the first time with a new guitar amplifier or flat-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the POST -DRIVE EQ controls and move on to having fun dialling in your ideal tone with the main controls.

  • Page 12: Sample Settings

    RevivalDrive Compact Sample settings PUSHED PLEXI TWEED TWIN The quintessential sound of rock! Modelled on an Oozing with character, Fender’s Tweed amps are known original JMP Super Lead, get ready for cutting attack for their raw, snarling drive with a satisfying low-end from the cranked presence control and a characteristic growl.

  • Page 13: Appendix A: Physical Specification

    RevivalDrive Compact Appendix A: Physical specification Measurement Unboxed Boxed Weight 620g (21.8oz) 700g (24.6oz) Length 143mm (5.62”) 170mm (6.6”) Depth 66mm (2.6”) 100mm (3.9”) Height 65mm (2.56”) 75mm (2.9”) Appendix B: Performance specification Measurement Value Input impedance 1MΩ Output impedance 1kΩ...

  • Page 14: Appendix D: Enviromental Information

    RevivalDrive Compact Appendix D: Enviromental information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin Eff ects for more information.

  • Page 15: Appendix F: Warranty

    This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
