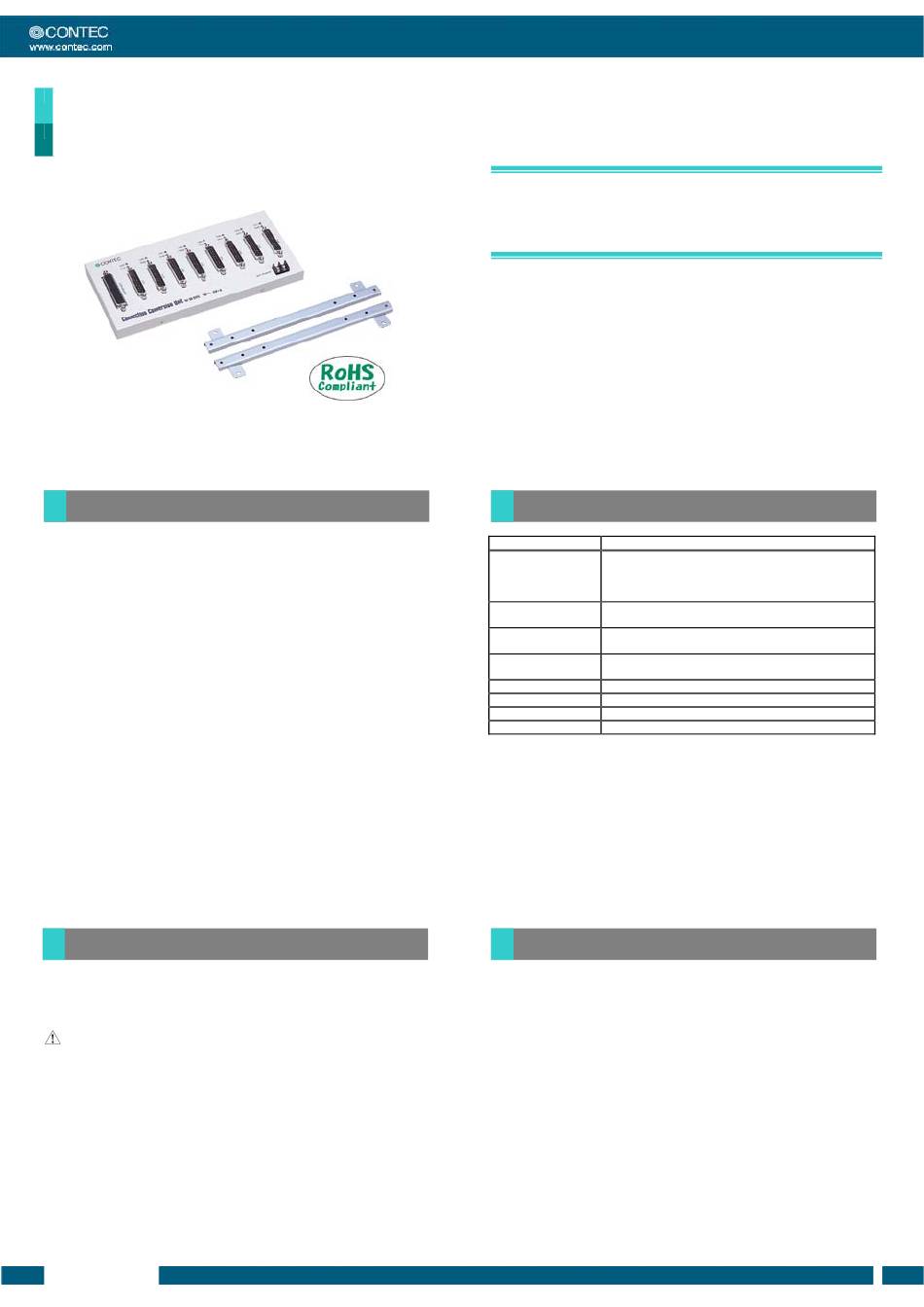

Contec CCU-78F/25M Quick Start Manual

Divider Unit for COM-8Ch / 4Ch Board
CCU-78F/25M
* Specifications, color and design of the products are subject to
change without notice.
Features
Provides a simple connection between the interface board and
external devices.
Can be attached to a DIN rail.
If an external power supply is connected, the unit can output a
power supply from the 25-pin D-SUB connectors.
Packing List
Body...1
Hangers...2
User's Guide...1
CAUTION
The option cable is not appended to the interface board and
this product. Cable differs according to board used. Be
sure to check the manual or visit the CONTEC's Web site to
buy an appropriate one.
A DIN rail adapter (DIN-ADP1) must be purchased
separately if you wish to mount the unit on a DIN rail.
CCU-78F/25M
This product operates as a terminal unit for connecting a
CONTEC interface board mounted in your computer to external
devices.
Note: To connect a board to the accessory, you need the separately priced option cable.
Specification
Item
Connector used 78 pin : 78-pin D-SUB connector [Female]
78M/DB-CNNR [mfd. by ACTIVE] equivalent
25 pin : 25-pin D-SUB connector [Male]
202AE25MSTIGA3 [mfd. by COXOC] equivalent
External power supply ML-40S1BYF-2P [mfd. by Sato Parts] equivalent
connector
±12VDC
External power supply
voltage (Max.)
External power supply 1.6A(total for all 8 ch)
current (Max.)
Compatible rails DIN rail
Operating Conditions 0 - 50ºC, 20 - 90%RH(No condensation)
Dimensions (mm) 240.0(W) x 115.0(D) x 17.4(H)
Weight 700g
Compatible Interface Boards
COM-8(PCI)H
COM-4(PCI)H
Ver.1.10
Specifications
