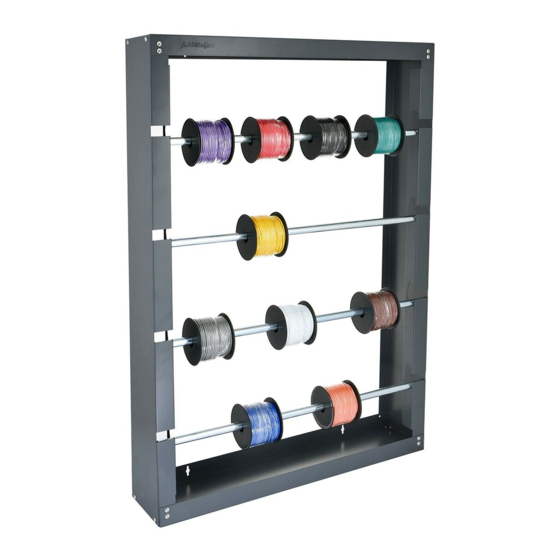

- Page 1 Vertical Spool Rack ADI697-01 USER GUIDE...
- Page 2 Thank you for your purchase. furniture and equipment. We understand starting and maintaining a business is expensive enough. We can help you make it cost effective and beautiful. Plus, our expert team...
-
Page 3: Table Of Contents
Table of Contents Parts Included Assembly Instructions Mounting Instructions Notes Limited Warranty... -
Page 4: Parts Included
Parts Included 1. Left & Right Frame: (x2) 2. Top & Bottom Frame: 3. Rods (x4) Interchangeable (x2) A. Hex Head Screws (x20) B. Washers (x20) C. Wall Anchor (x2) Required Tools (Not Included) Philips Screwdriver Drill and Drill Bit... -
Page 5: Assembly Instructions
Assembly Instructions STEP 1: Take the Bottom Frame (2) and the Left Frame (1) and line up the bottom holes on the Left Frame (1) with the holes on the left side of the Bottom Frame (2), as pictured. Insert a Hex Head Screws (A) through the bottom three holes, two in the front and one in the back. - Page 6 Assembly Instructions STEP 2: Take the Right Frame (1) and line up the bottom holes on the Right Frame (1) with the holes on the right side of the Bottom Frame (2), as pictured. Insert a Hex Head Screws (A) through the bottom three holes, two in the front and one in the back.
- Page 7 Assembly Instructions A & B A & B STEP 3: Take the Top Frame (2) and line it up with the Left and Right Frame (1) holes, as pictured. Insert Hex Head Screws (A) through the top six holes, front and back. Secure the Hex Head Screws (A) with a Washer (B) on the other side.
- Page 8 Assembly Instructions STEP 4: Take the two Rods (3) and slide them through the notches located on both sides of the frame, as pictured.
-
Page 9: Mounting Instructions
Mounting Instructions STEP 1: To mount your Spool Rack, locate on the bottom, the two mounting holes. Set the rack against a wall, mark both holes with a pencil. STEP 2: Drill a hole large enough for the Wall Anchors (C), making sure you don’t drill it too large. -
Page 10: Notes
Notes... -
Page 11: Limited Warranty
Limited Warranty Adir Corp (the “Company” or “Tiger Companies”) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of 1 year from the date of purchase. The warranty period is not extended if we repair, replace, exchange, or provide a refund for the product (as determined in our sole discretion). - Page 12 ADI697-01 © 2022 AdirCorp adircorp.com...
