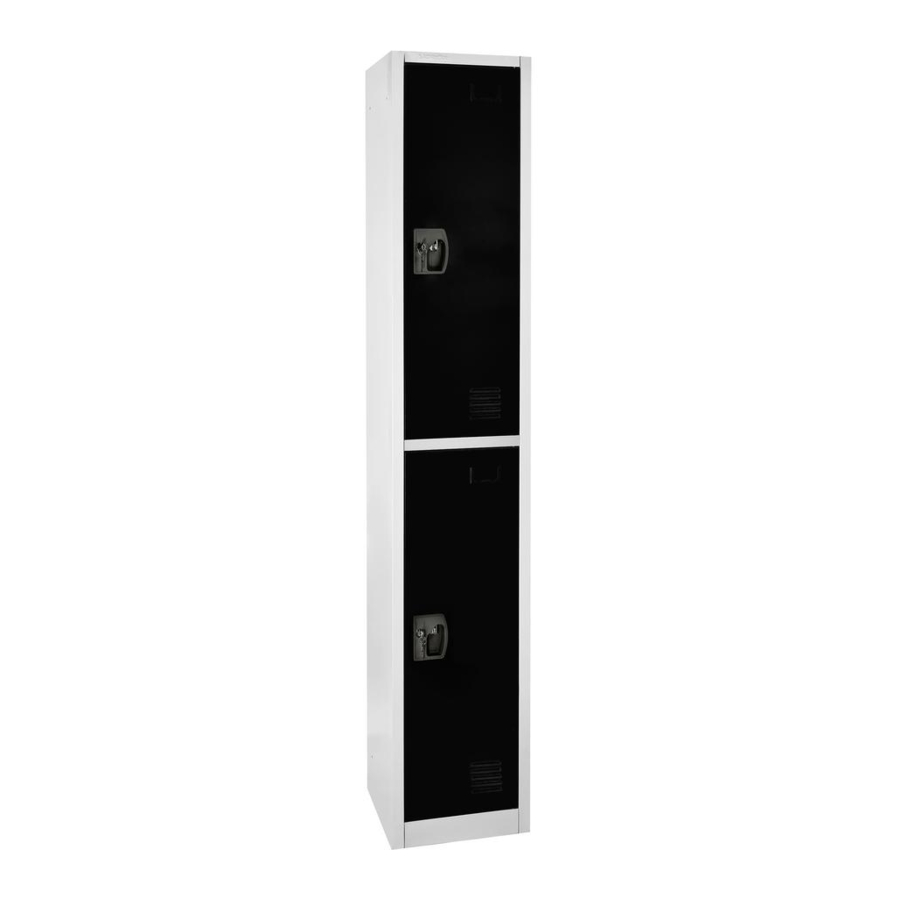

ADIROffice ADI629-202 User Manual

Double tier locker
Hide thumbs

Advertisement

Quick Links

Download this manual
Double Tier
Locker
ADI629-202
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADI629-202 and is the answer not in the manual?

Questions and answers

Related Manuals for ADIROffice ADI629-202

Summary of Contents for ADIROffice ADI629-202

  • Page 1 Double Tier Locker ADI629-202 USER GUIDE...
  • Page 2 Thank you for your purchase. AdirOffice has a commitment to deliver quality and stylish office furniture and equipment. We understand starting and maintaining a business is expensive enough. We can help you make it cost effective and beautiful. Plus, our expert team...

  • Page 3: Table Of Contents

    Table of Contents Introduction Parts List Assembly Instructions 10 Installation Instructions 12 Notes 15 Limited Warranty 16 Disclaimer...

  • Page 4: Introduction

    Introduction The AdirOffice Double Tier Locker is designed to provide storage and security for your home or office. The lockers are conveniently designed so that they can be installed with multiple units if desired. Single Unit Multiple Units Use a single, standalone unit.
  • Page 5 Parts Included INCLUDED HARDWARE: Flat Head Screws Keys Bolts + Washers Nuts 1. Bolts (x4) 3. Nuts (x4) 4. Flat Head Screws (x4) 5. Keys (x2) 1 set of 2 keys 2. Washers (x4) Round Head Screw Coat Hooks Shelf Brackets Wall Anchors 6.
  • Page 6 PARTS Parts Included Double Locker A. Door Panel E. Right Panel F. Shelves B. Left Panel G. Bottom Panel C. Top Panel D. Back Panel H. Middle Panel Back Panel Right Panel Top Panel Left Panel Coat Hook Door Panel Shelf Coat Hook Middle...

  • Page 7: Assembly Instructions

    Assembly Instructions STEP 1: ASSEMBLY INSTRUCTIONS A. Place the Left Panel (B) onto the left side of the Back Panel (D). B. Line up the “C” shape of the Left Panel (B) so that it hooks under the “L” shape of the Back Panel (D). C.
  • Page 8 ASSEMBLY INSTRUCTIONS Assembly Instructions Double Locker STEP 2: A. Place the Right Panel (E) onto the right side of the Back Panel (D). Attach right panel to back panel B. Line it up so that the “C” shape of the Right Panel (E) hooks under the “L” shape of the Back Panel (D), as described in Step 1.
  • Page 9 Assembly Instructions ASSEMBLY INSTRUCTIONS STEP 3: Double Locker A. Stand the 3 assembled sides of the locker up. B. To attach the Door Panel (A) piece, move the Door Panel (A) into the locker at an angle so that it is completely inside of the enclosure.
  • Page 10 ASSEMBLY INSTRUCTIONS Assembly Instructions Double Locker STEP 4: A. Once the Door Panel (A) is attached, it is time to secure the Door Panel (A) by attaching the Top Panel (C) and Bottom Panel (G). B. Set the Top Panel (C) on top of the locker as Attach the top, middle &...
  • Page 11 Assembly Instructions ASSEMBLY INSTRUCTIONS Double Locker STEP 5: A. Attach the Double Hooks (9) to the Back Panel (D) using a Phillips screwdriver and the included Flat Head Screws (4). Attach coat hooks Attach the coat hooks to the back panel using a Phillips screwdriver and the included screws.
  • Page 12 ASSEMBLY INSTRUCTIONS Assembly Instructions Double Locker STEP 6: A. Place the 4 Shelf Brackets (8) at the desired height for your Shelves (F). Ensure the brackets are at the same height on each of the rails. B. Set the shelf down over the Shelf Brackets (8) to secure it. Repeat for the second shelf. Install shelves Place the 4 shelf brackets at the desired height for your shelf.
  • Page 13 Double Locker Installation Instructions Before you begin Mount the locker(s) to a wall for optimal safety. Multiple Locker Units A. If you are using multiple locker units, secure them to each other for safety and security. Multiple locker units B. Set the lockers next to each other. Ensure the mounting holes towards the top of the Right Panel (E) of the left locker line up with the corresponding mounting holes on the Left Panel (B) of the right locker.

  • Page 14: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation Instructions Double Locker Mounting Locker Units A. There are two holes near the top of the Back Panel (D) of your locker. B. Place your locker where you want to install it. Using a pencil, mark the location of each of these holes on the wall.

  • Page 15: Notes

    Notes...
  • Page 16 Notes...
  • Page 17 Notes...

  • Page 18: Limited Warranty

    Limited Warranty 1. AdirCorp (the company) warrants to the purchaser that the product will be free from defects in workmanship and materials for a period of one (1) year from the date of purchase. 2. These warranties are not assignable or transferable to any other person. 3.

  • Page 19: Disclaimer

    Disclaimer By purchasing products from AdirCorp, user agrees as follows: TO THE MAXIMUM EXTENT PERMITTED BY LAW, THE PRODUCTS AND INFORMATION ON THIS SITE IS PROVIDED “AS IS” AND WITH ALL FAULTS AND ADIRCORP. MAKES NO PROMISES, REPRESENTATIONS, OR WARRANTIES, EITHER EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE, WITH RESPECT TO THE PRODUCTS AND INFORMATION, INCLUDING ITS CONDITION, ITS CONFORMITY TO ANY REPRESENTATION OR DESCRIPTION, OR THE EXISTENCE OF ANY LATENT OR PATENT DEFECTS, AND ADIRCORP.
  • Page 20 ADI629-202 27 Selvage Street • Irvington, NJ • 07111 • © 2021 AdirCorp adircorp.com...
