Instructions

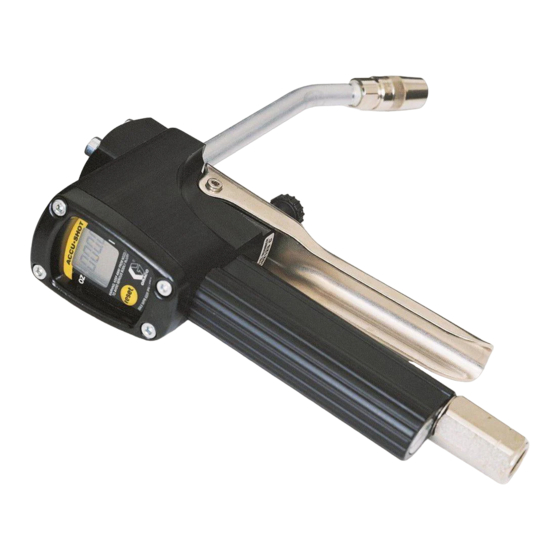

Accu-Shot
Grease Meter
For high pressure grease dispense. For professional use only.
Part No. 233807
English - measures in ounces and pounds
Part No. 233933
Metric - measures in grams and kilograms
5000 psi (34.5 MPa, 345 bar) Maximum Working
Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Electronic
™
Model 233807
309454D
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accu-Shot 233807 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Accu-Shot 233807

Summary of Contents for Graco Accu-Shot 233807

  • Page 1 Instructions Accu-Shot Electronic ™ Grease Meter 309454D For high pressure grease dispense. For professional use only. Part No. 233807 English - measures in ounces and pounds Part No. 233933 Metric - measures in grams and kilograms 5000 psi (34.5 MPa, 345 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this...
