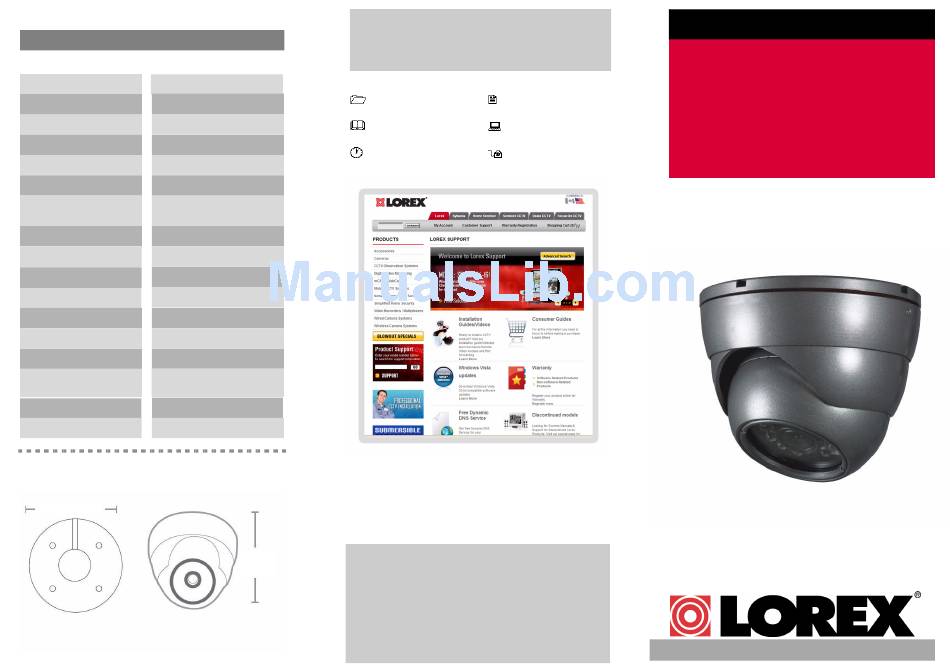

Lorex VQ1536HRB Quick Start Manual

Camera Specifications

Specfications:
Image Sensor
1/4" AIS
Video Format / Pixels NTSC: 656 (H) x 492 (V)
480 TVL
Horizontal Resolution
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio > 48dB
Iris & Shutter Speed AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination 0.5 LUX @ F1.2 (IR Off)
0 LUX (IR LEDs ON)
IR Range Up to 40 ft (12 m); 12 LEDs
Video Output Comp. 1.0 Vpp @ 75ohm
3.6 mm F2.0/Fixed
Lens / Lens Mount
70 Degrees
FOV (diagonal)
Termination Video: BNC Female
Power Requirement 12V DC ±10%
Power Consumption 220 mA max
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
DIA: 3.7" (94 mm)
Dimensions
Weight 0.85 lbs / 386 g
Dimensions
3.7in/94mm
It's all on the Web!
Product Information
User Manuals
Quick Start Guides
VISIT:
www.lorexcctv.com
Lorex Technologies Inc.
3.1in/
Copyright © 2008 Lorex Technologies Inc.
75mm
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades
PROFESSIONAL COLOR
SURVEILLANCE DOME
CAMERA
Day/Night, Weatherproof, Vandal
Resistant, Advanced Image Sensor
MODEL: VQ1536HRB

QUICK START GUIDE

English Version 1.0
www.lorexcctv.com
