Lorex VQ1137H Quick Start Manual

Camera Specifications

Image Sensor High Resolution 1/4" Sensor
Video Format / Pixels NTSC: 656(H) x 492 (V)
Horizontal Resolution 450 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio > 48dB
Iris & Shutter Speed AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination 3.0 LUX
Video Output Comp. 1.0 Vpp @ 75ohm
Lens / Lens Mount 3.6 mm F2.0/ Fixed
FOV (diagonal) 70 Degrees
Termination Video: BNC Female
Power: Barrel Female
IR / Night Vision Range N/A
Power Requirement 12V DC +/- 10%
Power Consumption 90 mA max
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
Weight (with stand) 0.62 lbs / 0.28 kg
Dimensions 4.72" x 4.72" x 2.96"
LxWxH 120 mm x 120 mm x 75 mm
Dimensions:
It's all on the Web!
Product Information
User Manuals
Quick Start Guides
VISIT
www.lorexcctv.com
Lorex Technologies Inc.
Copyright © 2009 Lorex Technologies Inc.
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
COLOR SURVEILLANCE
Specification Sheets
Software Upgrades
Firmware Upgrades
©
Copyright

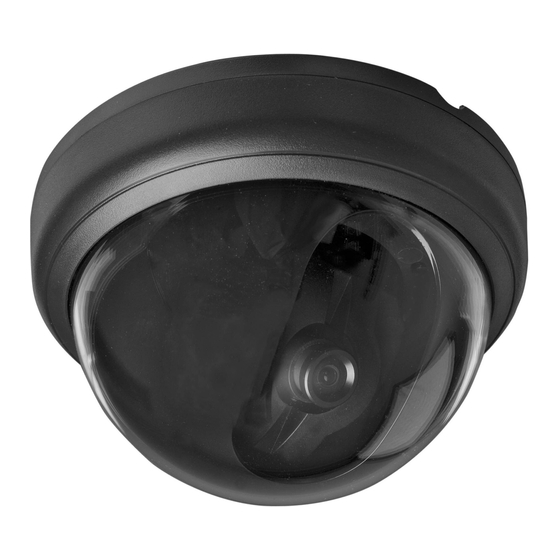

DOME CAMERA

MODEL: VQ1137H

QUICK START GUIDE

English Version 1.0
www.lorexcctv.com
2009 Lorex Technology Inc.
