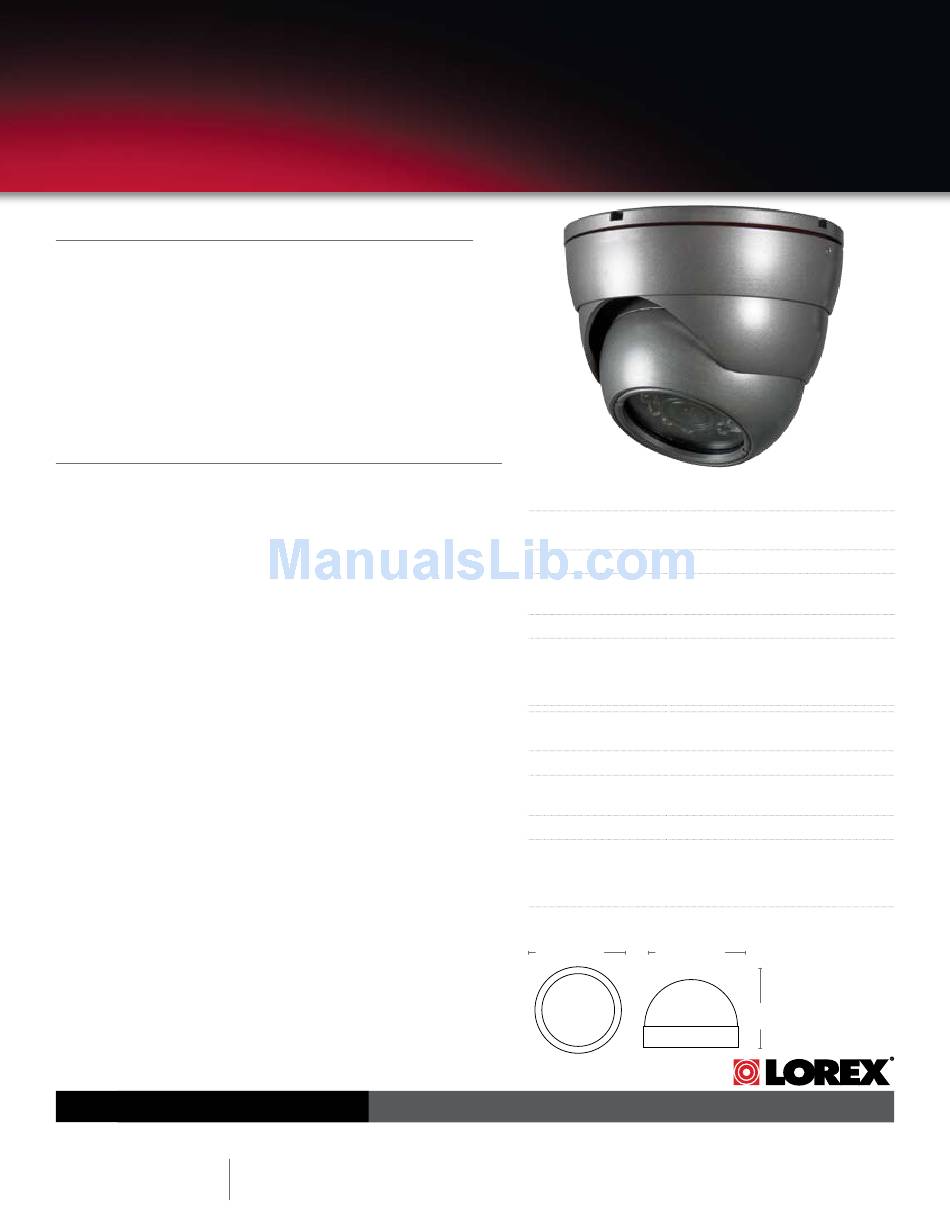

Lorex VQ1536HR Specifications

HIgH RESOlUTION WEATHERPROOF/VANDAl RESISTANT DAY/NIgHT,
ADVANCED IMAgE SENSOR PROFESSIONAl COlOR DOME CAMERA
FEATURES
• Advanced high resolution image sensor - produces sharp and clear video with
480 TVL
• True day/night operation using built-in IR filter changeable mechanism to
achieve accurate color representation in varying lighting conditions
• Day / night mode: picture automatically switches camera to B&W delivering
better clarity in low light conditions
• 3-Axis design for wall / ceiling mounting
• 12 IR LEDs provide effective night vision range of 40ft (12m)
• Split glass design minimizes IR reflection
• Weatherproof design ideal for outdoor and indoor applications (IP66)

SPECIFICATIONS

Image Sensor Type:
Video Format:
Horizontal Resolution:
Scan System:
Sync System:
S/N Ratio:
Iris:
AES Shutter Speed:
Mini Illumination:
Video Output:
Lens/Focal Length/Type:
Lens/ Lens Mount:
Aperture:
FOV (Diagonal):
Termination:
IR LED/Qty/LED Type (nm)/Night
Vision Range:
Power Requirement:
Power Consumption:
Operating Temp Range:
Unit Weight:
Unit Dimensions:
Environmental Rating:
Built In Microphone:
• IR illumination range up to 40ft (12M) under ideal conditions. Objects at or beyond this range may be
partially or completely obscured, depending on the camera application.
• WARNING - REGULATED 12V DC power supply is REQUIRED for use with the cameras. Use of a
non-regulated, non-conforming power supply can damage this product and will void the warranty.
VQ1536HR Series
lorex Technology Inc.
250 Royal Crest Court, Markham,
Ontario L3R 3S1
Canada.
High resolution 1/4" advanced color image sensor
NTSC
480 TV Lines
NTSC: 525 Lines 2:1 interlace
Internal
More than 48dB without AGC
AES
NTSC: 1/60 ~ 1/50,000 Sec.
0.5 LUX without IR LED, 0 LUX with IR LED
Composite 1.0 Vpp @ 75 ohm
3.6 mm Fixed
Fixed
F2.0
70 degrees
BNC (RCA adapter included)
12pcs IR LED / 850nm / 12m / 40 Ft
12V DC
220 mA
14°~122° F / -10° ~ 50° C
0.4 kg/0.9 Lbs
3.7" / 94mm 3.7"/94mm 3.1"/75mm (W X D X H) incl.
Sunshade + Stand
IP 66
No
3700 Koppers Street
Baltimore, Maryland 21227,
USA.
BUSINESS AND HOME SECURITY

PRODUCT INFORMATION

VQ1536HRB
(NTSC Package):
Package Weight:
Package
Dimensions:
Package Cube:
Contents:
VQ1536HRBF
(Universal Package):
Package Weight:
Package
Dimensions:
Package Cube:
Contents:
DIMENSIONS
3.7"/94mm
As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the
right to modify product design, specifications & prices without notice and without incurring any
7-78597-11536-9
1.155kg / 2.55lb
249mm (w) x 104mm (d) x 140mm (h)
9.8" (w) x 4.1" (d) x 5.5" (h)
0.0036m / 0.127ft
• Camera
• 60ft (18.3M) BNC Extension Cable
• BNC Female /RCA Male Connector
• 12V DC Power Adapter
7-78597-21536-6
1.155kg / 2.55lb
258mm (w) x 113mm (d) x 148mm (h)
10.15"(w) x 4.4"(d) x 5.8"(h)
0.00427m / 0.15238ft
• Camera
• 60ft (18.3M) BNC Extension Cable
• BNC Female /RCA Male Connector
• 12V DC Power Adapter
3.7"/94mm
3.1"/
75mm
www.lorexcc tv.com
©2009 Lorex Technology Inc.
obligation. E&OE
1-30072009
