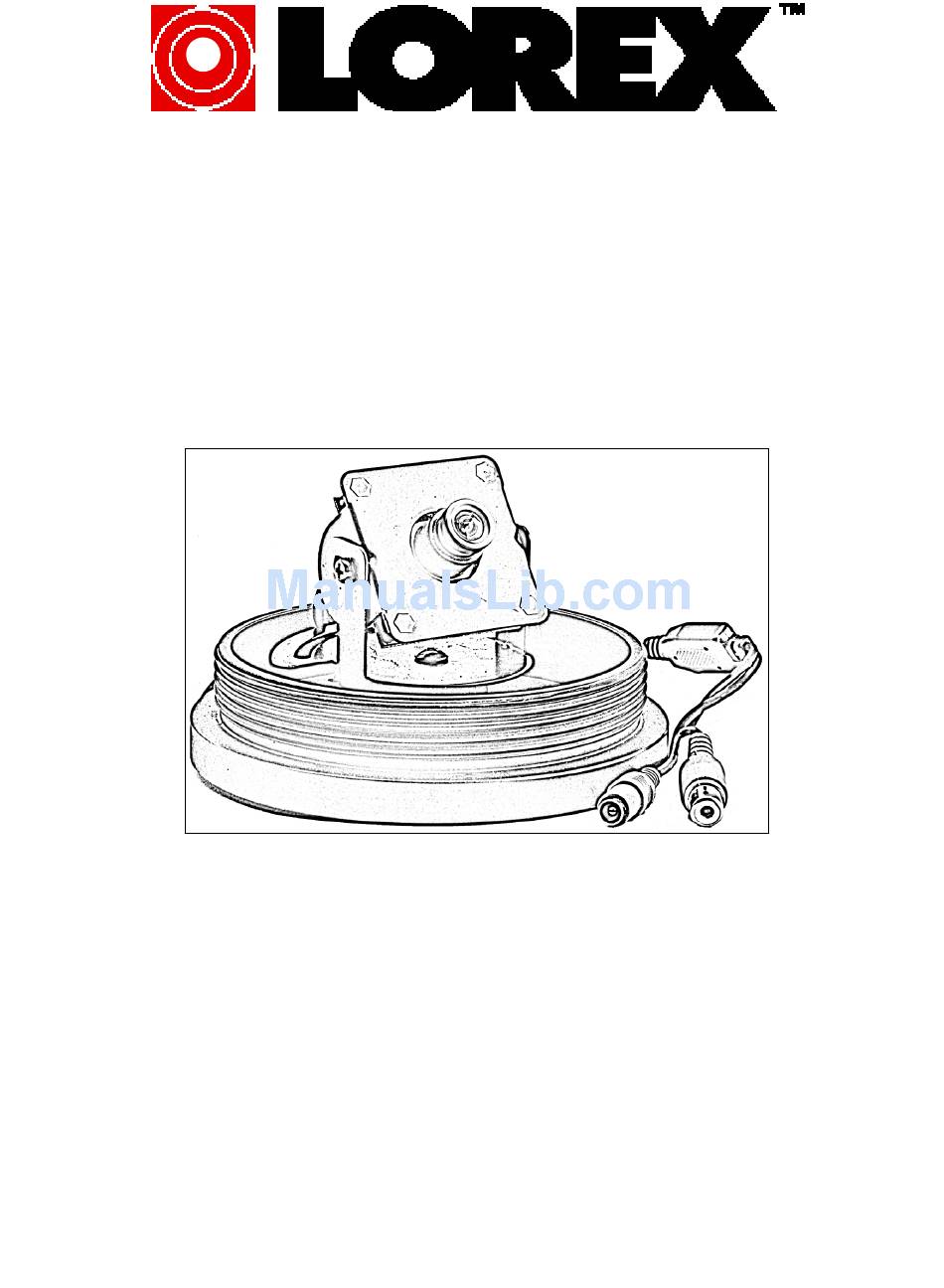

Page 1: Dome Camera
VANDAL PROOF B&W DOME CAMERA Owners Manual Please read the manual thoroughly before operating this unit. VQ1032... - Page 2 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. EXPLANATION OF TWO SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...
- Page 3 INTRODUCTION: Congratulations on your purchase of this Vision Q Vandal Proof B&W Dome Camera. This Dome camera comes with a Polycarbonate construction to provide high impact protection. The heavy duty all metal base with swivel bracket and tamper proof hardware adds extra protection against possible vandalism. This Dome camera can be rotated up to 360°...
- Page 4 CONNECTING CAMERA TO A TV Mount the camera to the ceiling. Connect the video extension cable (not included) from the camera to the TV (AV input of the TV). Connect the power extension cable (not included) to the supplied camera’s power 12V DC adaptor. Attach the supplied 12V DC power supply to the power extension cable (not included) and plug into an electrical outlet.
